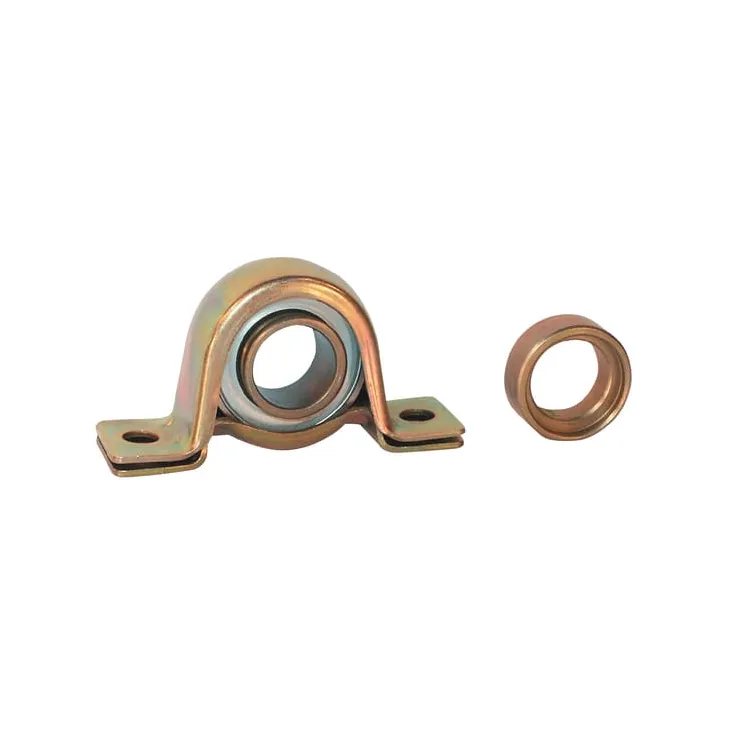

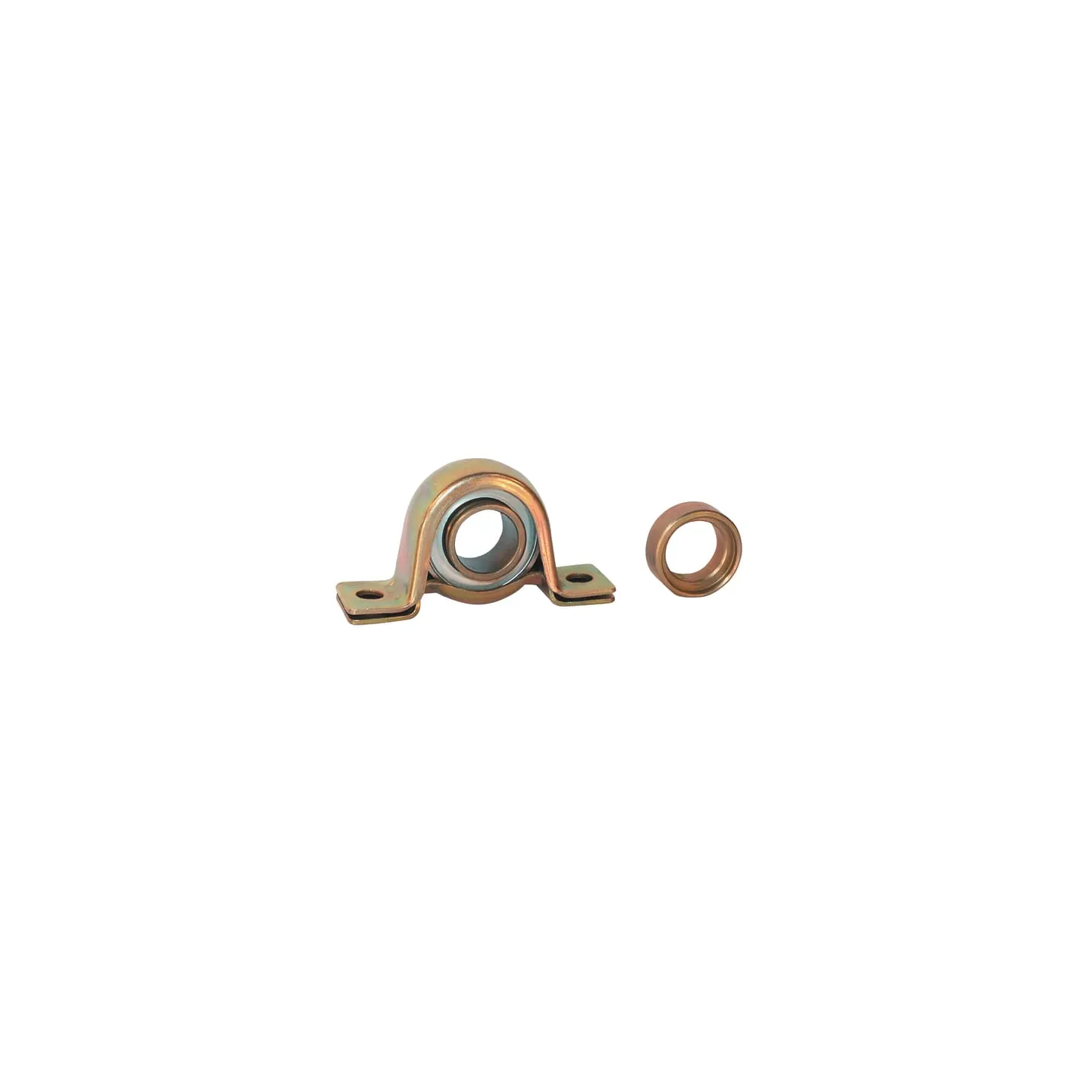

Dzīvojamā vienība PB PB15

Name: Dzīvojamā vienība PB PB15
Brand: INA/FAG
SKU: PB15
Price: 28.79 EUR
Availability: InStock

Apmaksas iespējas

28,79 €

AR PVN

4-5 Darba dienas

Dzīvojamā vienība PB PB15 INA/FAG

IR NOLIKTAVĀ

ID: 64916

Apraksts

Part number	PB15
EAN	4012802792942
Unit	Each
Properties	Housing components rust-resistant through Corrotect N coating Inner bearing has one-sided extended inner ring with clamp ring No subsequent lubrication possible
Housing type	Pillow block
dBearing inside diameter	15 mm
Consists of	2 halves of housing Clamp bearing Clamp ring
WTotal length	85.7 mm
BHousing width	25.4 mm
HTotal height	43.2 mm
L*Bearing inner ring width	28.6 mm
Locking ring outside diameter	28 mm
AShaft vertical distance	22.2 mm
OBearing balls distance to mounting surface	22.1 mm
Mounting holes distance	68 mm
ØKMounting holes diameter	9.5 mm
Grease nipple thread diameter	M6
Weight	0.17 kg
Basic radial load static	4750 N
Basic radial load dynamic	9800 N
Original number equivalent	PB15
