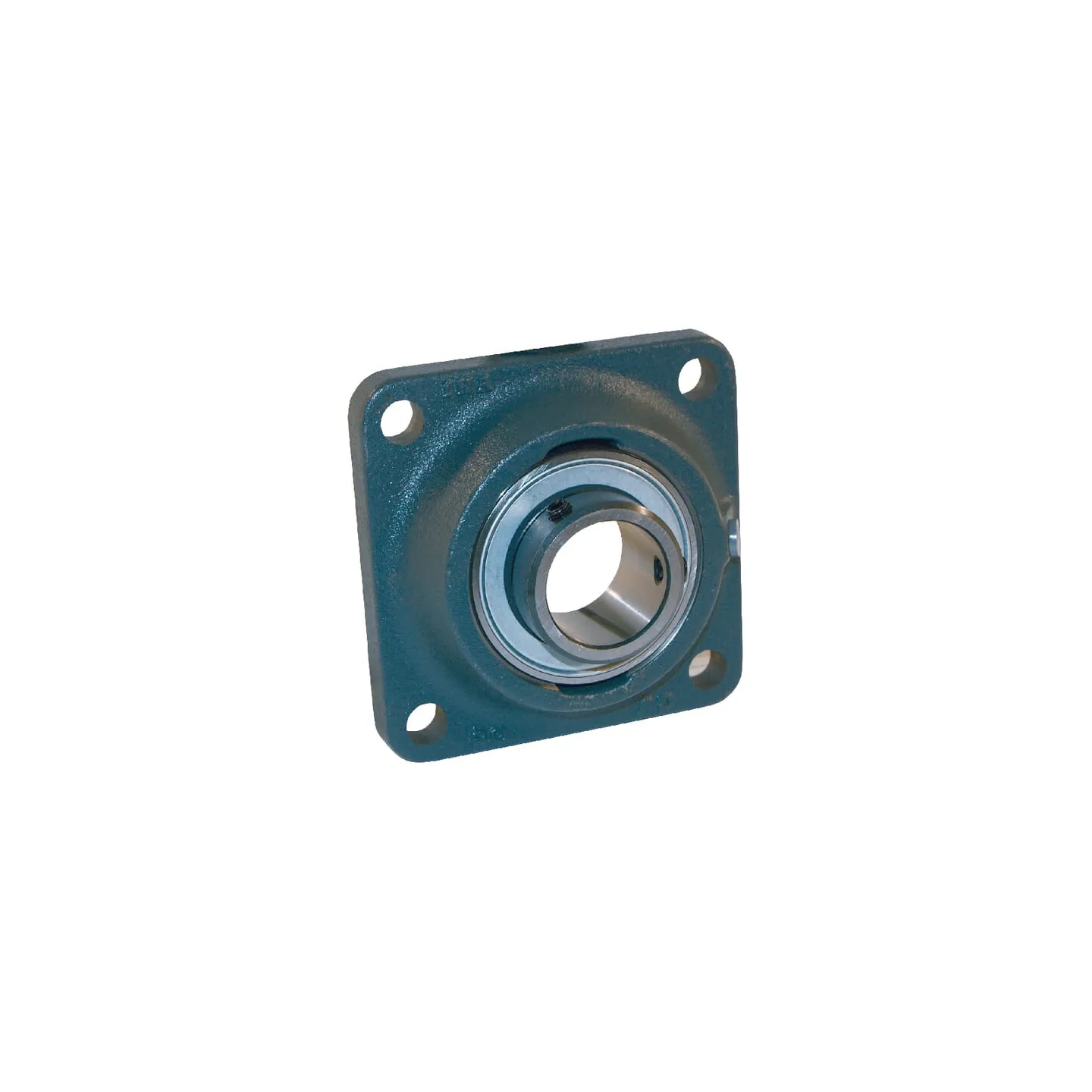

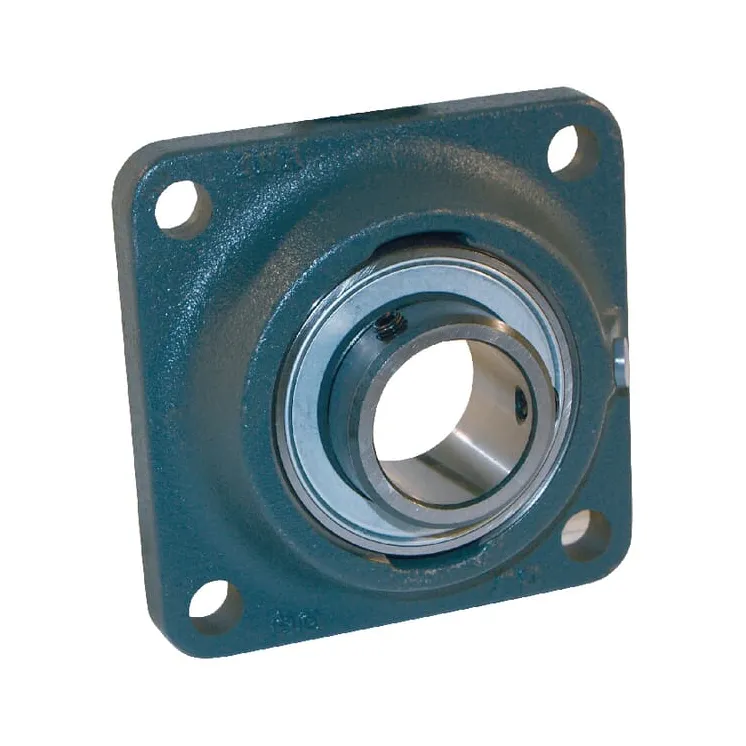

Korpuss PCJY PCJY35

Name: Korpuss PCJY PCJY35
Brand: INA/FAG
SKU: PCJY35
Price: 60.62 EUR
Availability: InStock

Apmaksas iespējas

60,62 €

AR PVN

4-5 Darba dienas

Korpuss PCJY PCJY35 INA/FAG

IR NOLIKTAVĀ

ID: 64920

Apraksts

Part number	PCJY35
EAN	4012802823882
Unit	Each
Properties	• Inner bearing has one-sided extended inner ring with 2 adjusting screws Can be subsequently lubricated
Housing type	Square flange
dBearing inside diameter	35 mm
ATotal length	118 mm
Housing width	118 mm
UTotal height	46.5 mm
Total width	46.45 mm
THousing height	30.5 mm
LBearing inner ring width	35 mm
CFlange thickness	10 mm
Bearing balls distance to locking side end	21 mm
Mounting holes distance	92 mm
Grease nipple thread diameter	M6
Basic radial load static	15300 N
Basic radial load dynamic	27500 N
Original number equivalent	PCJY35-N
