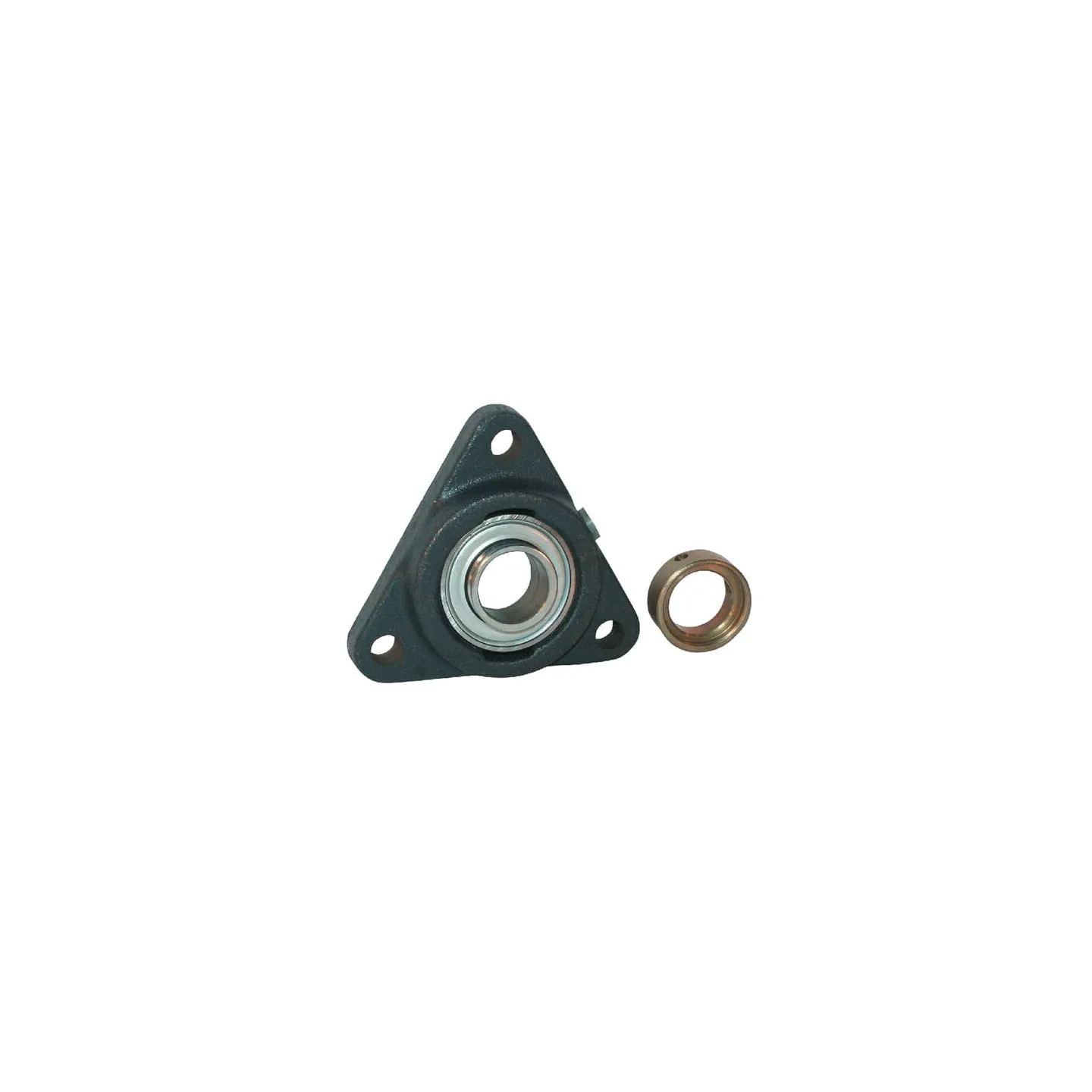

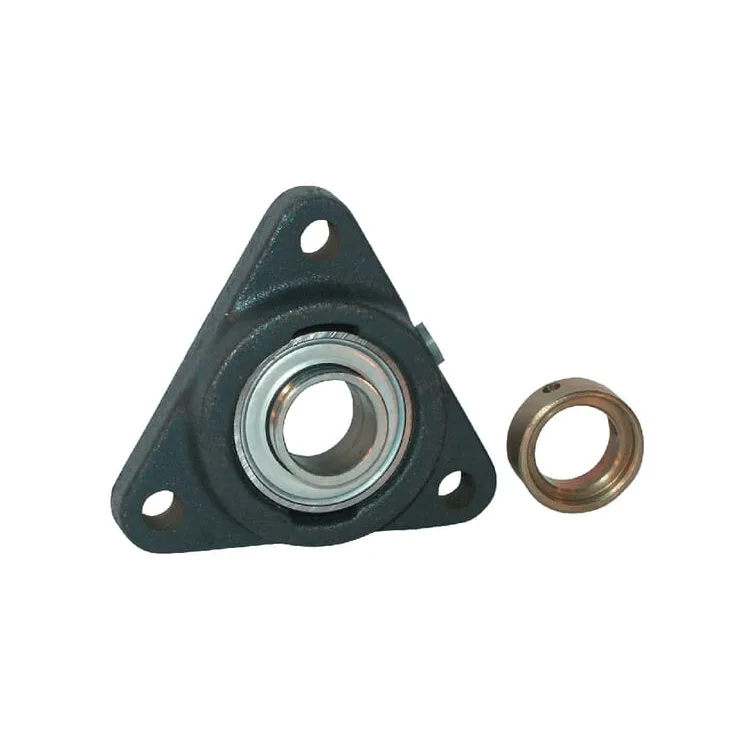

Korpuss PCFTR PCFTR50

Name: Korpuss PCFTR PCFTR50
Brand: INA/FAG
SKU: PCFTR50
Price: 102.08 EUR
Availability: InStock

Apmaksas iespējas

102,08 €

AR PVN

4-5 Darba dienas

Korpuss PCFTR PCFTR50 INA/FAG

IR NOLIKTAVĀ

ID: 64924

Apraksts

Part number	PCFTR50
EAN	4012802790931
Unit	Each
Properties	Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Housing type	Triangular flange
dBearing inside diameter	50 mm
Consists of	• Bearing block Clamp ring
Total length	150 mm
AHousing width	150 mm
UTotal height	51.9 mm
THousing height	33 mm
L*Bearing inner ring width	43.7 mm
Locking ring outside diameter	69 mm
BShaft vertical distance	55 mm
PBearing balls distance to mounting surface	19.2 mm
KMounting holes diameter	14 mm
Grease nipple thread diameter	M6
Weight	2.03 kg
Basic radial load static	23200 N
Basic radial load dynamic	35000 N
Original number equivalent	PCFTR50
