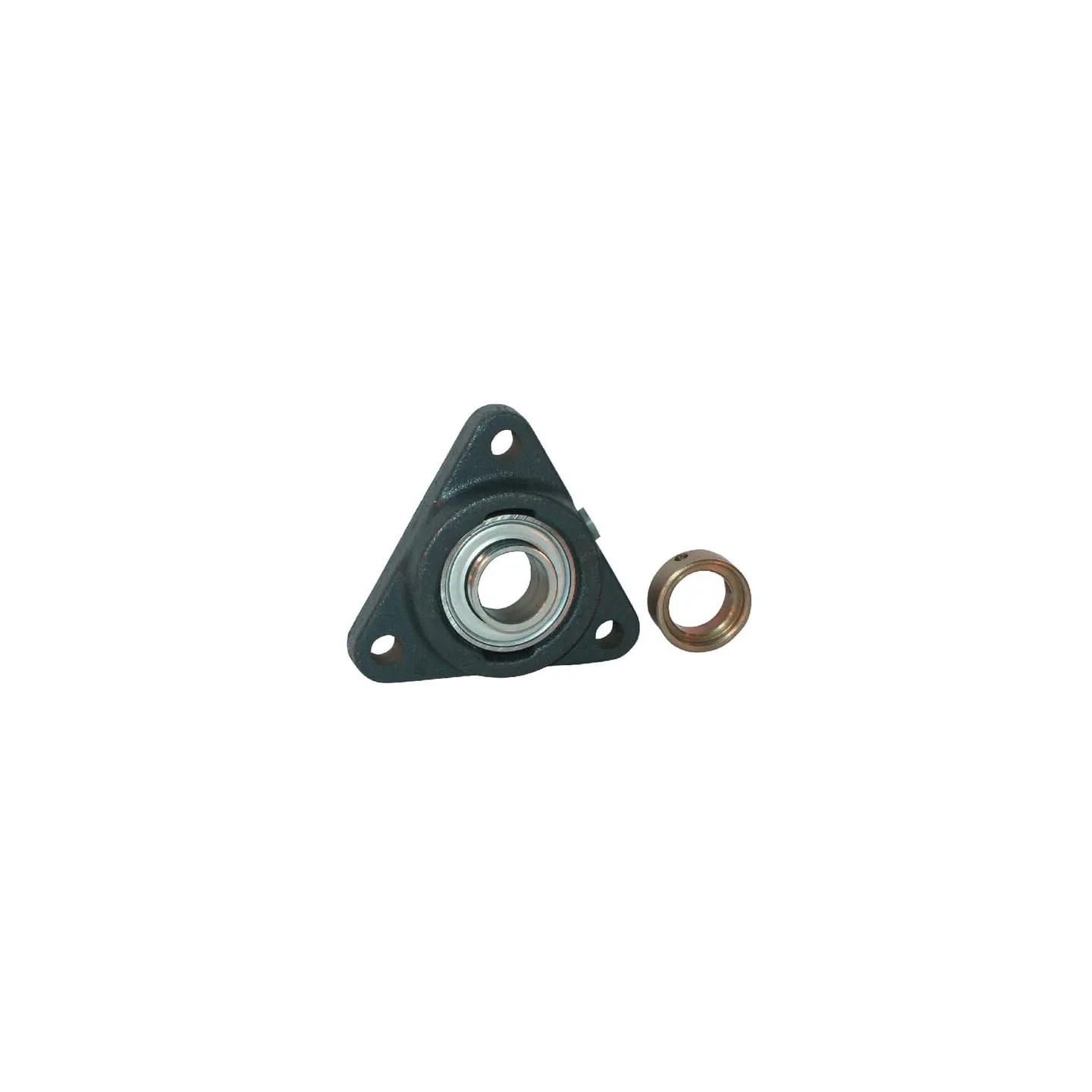

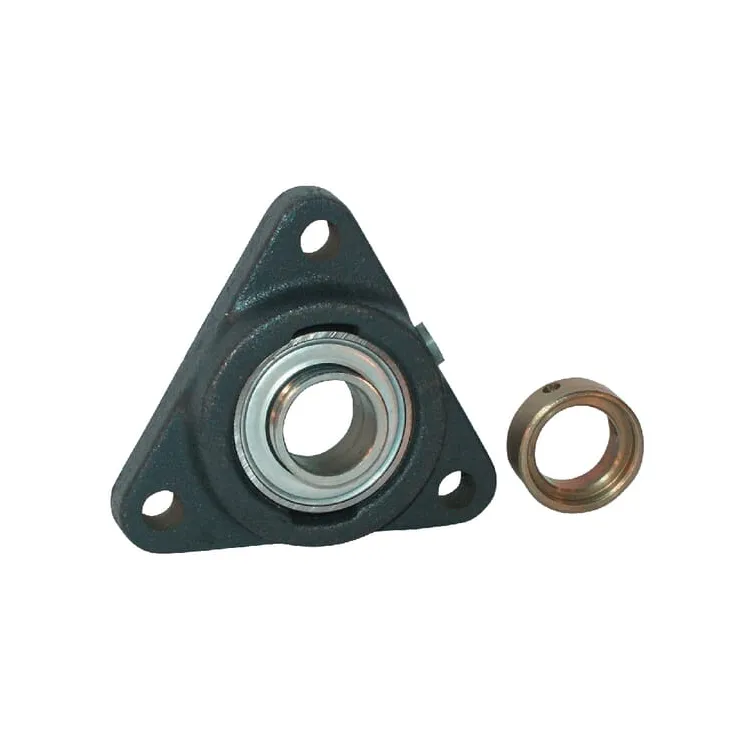

Korpuss PCFTR PCFTR40

Name: Korpuss PCFTR PCFTR40
Brand: INA/FAG
SKU: PCFTR40
Price: 100.14 EUR
Availability: InStock

Apmaksas iespējas

100,14 €

AR PVN

4-5 Darba dienas

Korpuss PCFTR PCFTR40 INA/FAG

IR NOLIKTAVĀ

ID: 64926

Apraksts

Part number	PCFTR40
EAN	4012802790979
Unit	Each
Properties	Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Housing type	Triangular flange
dBearing inside diameter	40 mm
Consists of	• Bearing block Clamp ring
Total length	137 mm
AHousing width	137 mm
UTotal height	51 mm
THousing height	30 mm
L*Bearing inner ring width	43.7 mm
Locking ring outside diameter	58 mm
BShaft vertical distance	51 mm
PBearing balls distance to mounting surface	18.3 mm
KMounting holes diameter	14 mm
Grease nipple thread diameter	M6
Weight	1.67 kg
Basic radial load static	19800 N
Basic radial load dynamic	32500 N
Original number equivalent	PCFTR40
