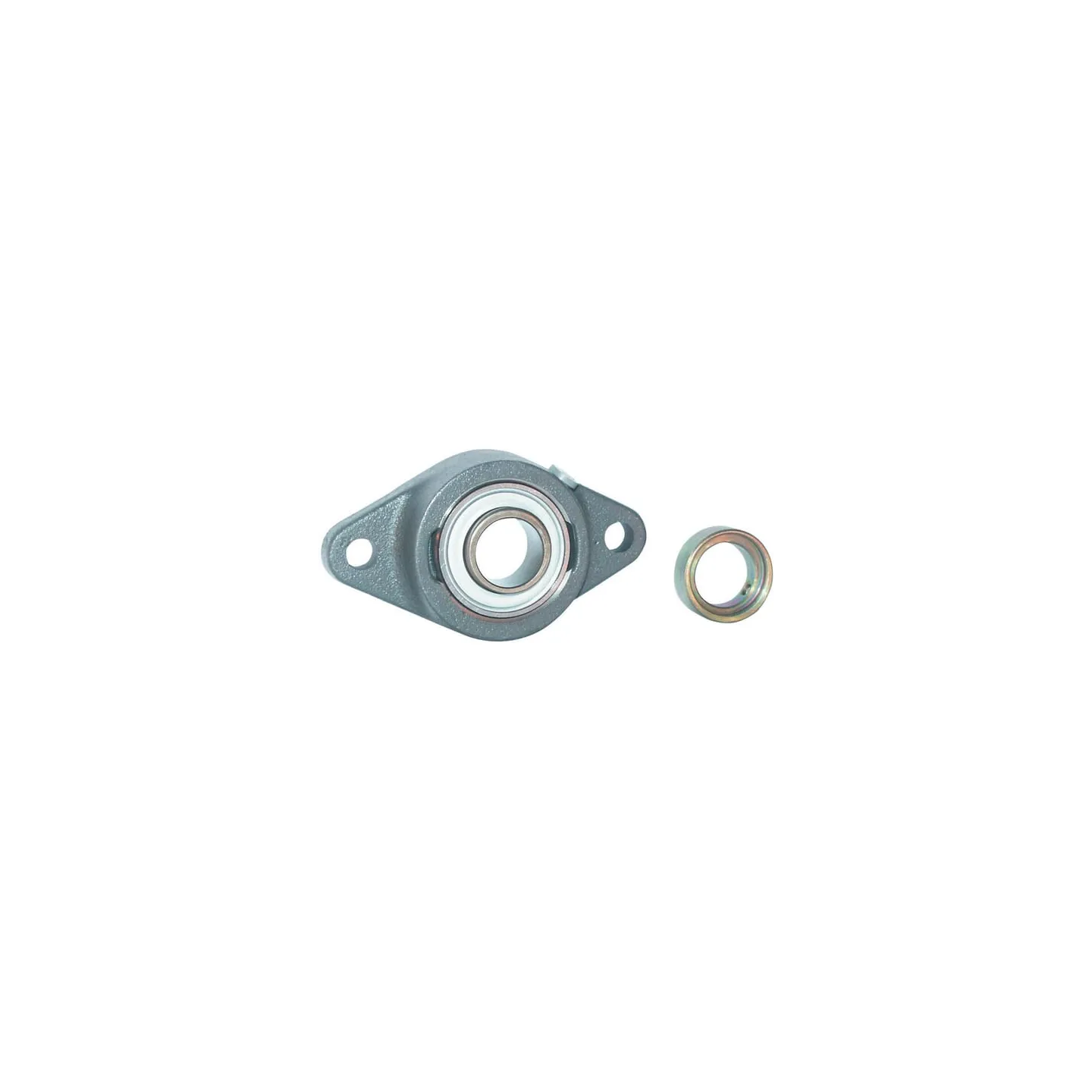

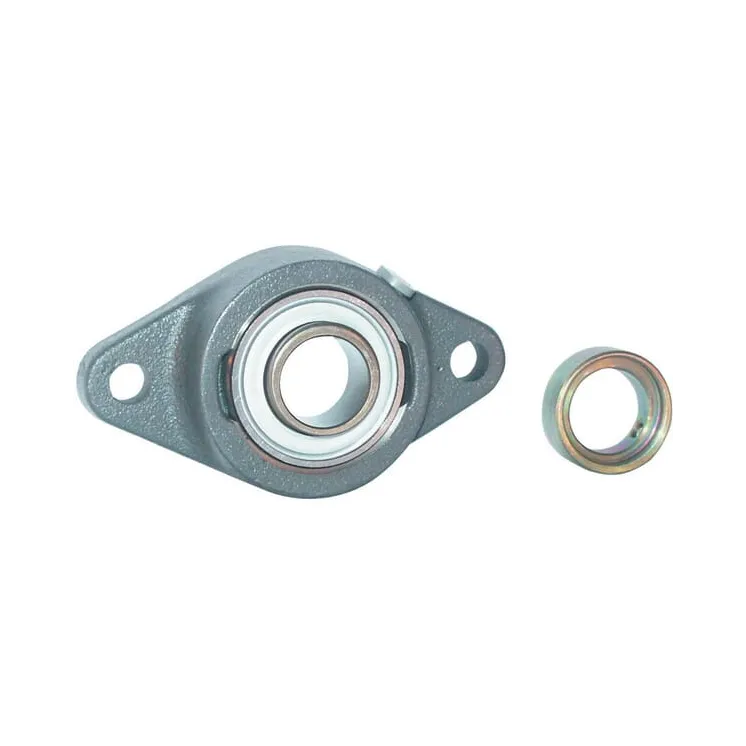

Korpuss PCJT PCJT40

Name: Korpuss PCJT PCJT40
Brand: INA/FAG
SKU: PCJT40
Price: 64.54 EUR
Availability: InStock

Apmaksas iespējas

64,54 €

AR PVN

4-5 Darba dienas

Korpuss PCJT PCJT40 INA/FAG

IR NOLIKTAVĀ

ID: 64927

Apraksts

Part number	PCJT40
EAN	4012802837148
Unit	Each
Properties	Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Housing type	Oval flange
dBearing inside diameter	40 mm
Consists of	Bearing block Clamp ring
Total length	105 mm
UHousing width	172 mm
UTotal height	56.7 mm
THousing height	34.5 mm
L*Bearing inner ring width	43.7 mm
Locking ring outside diameter	58 mm
Bearing balls distance to locking side end	24 mm
MMounting holes distance	143.5 mm
KMounting holes diameter	14 mm
Grease nipple thread diameter	M6
Weight	1.57 kg
Basic radial load static	19800 N
Basic radial load dynamic	34500 N
Original number equivalent	PCJT40-N
