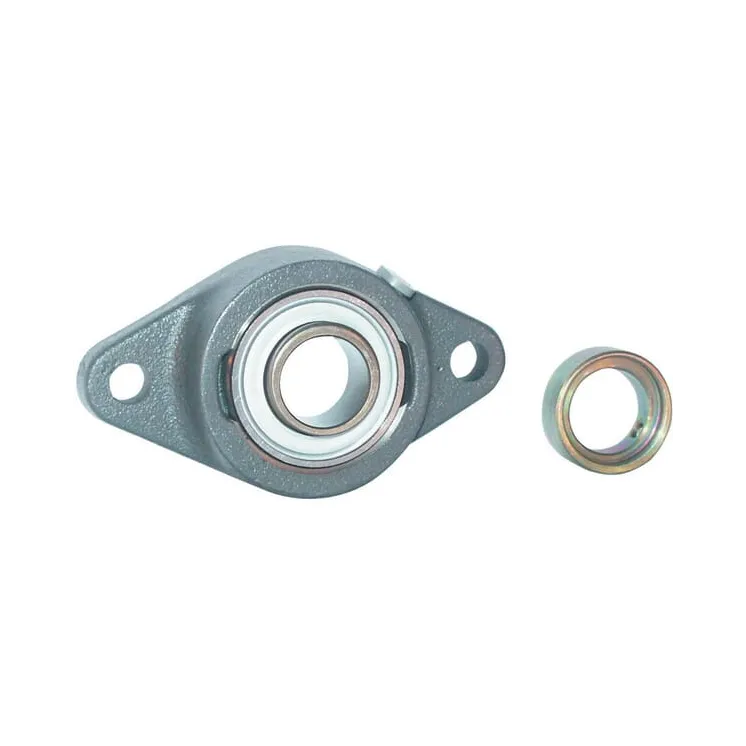

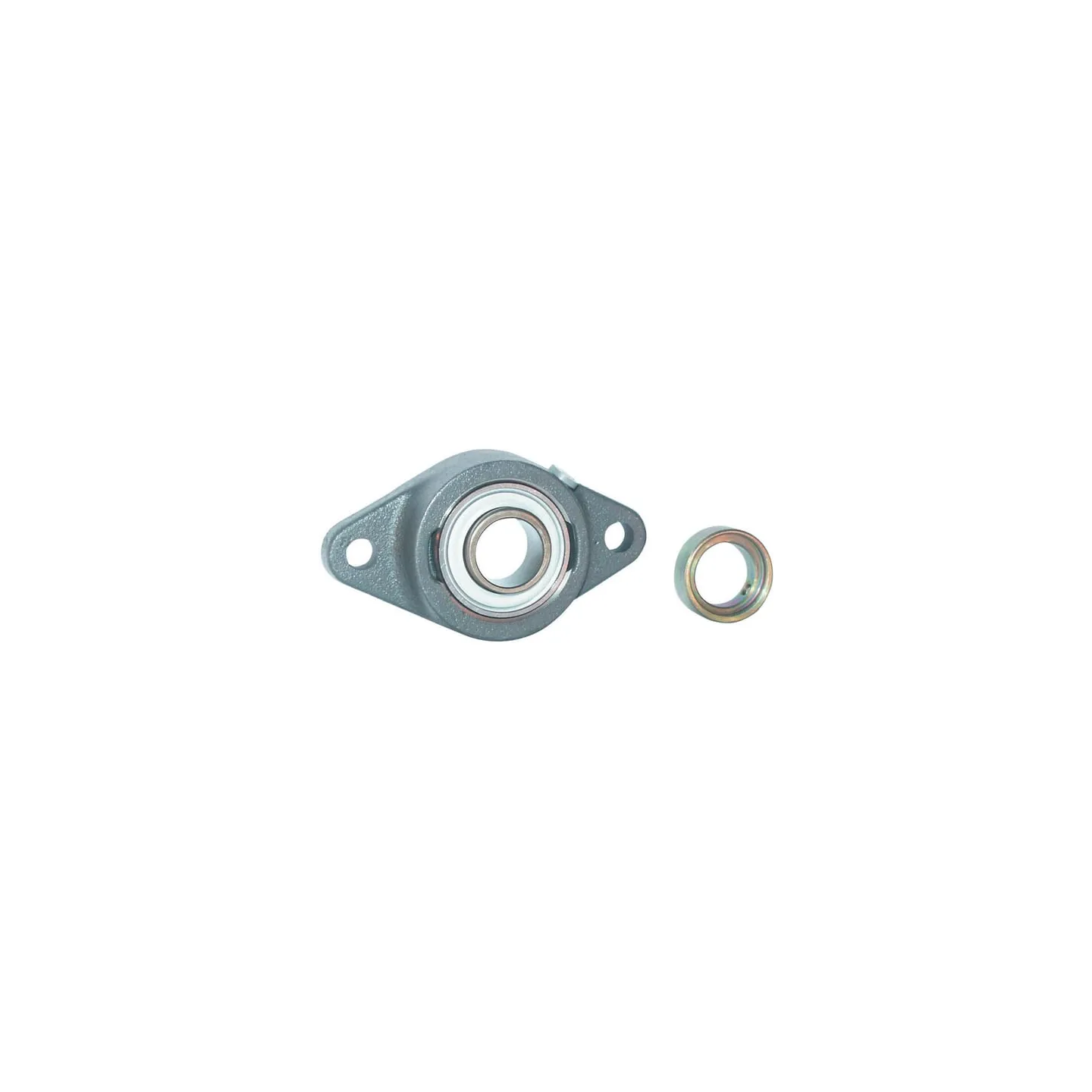

Korpuss PCJT PCJT45

Name: Korpuss PCJT PCJT45
Brand: INA/FAG
SKU: PCJT45
Price: 87.91 EUR
Availability: InStock

Apmaksas iespējas

87,91 €

AR PVN

4-5 Darba dienas

Korpuss PCJT PCJT45 INA/FAG

IR NOLIKTAVĀ

ID: 64928

Apraksts

Part number	PCJT45
EAN	4054372939402
Unit	Each
Properties	Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Housing type	Oval flange
dBearing inside diameter	45 mm
Consists of	Bearing block Clamp ring
Total length	111 mm
UHousing width	180 mm
UTotal height	56.7 mm
THousing height	35 mm
L*Bearing inner ring width	43.7 mm
Locking ring outside diameter	63 mm
Bearing balls distance to locking side end	24 mm
MMounting holes distance	148.5 mm
KMounting holes diameter	14 mm
Grease nipple thread diameter	M6
Weight	1.79 kg
Basic radial load static	20400 N
Basic radial load dynamic	34500 N
Original number equivalent	PCJT45
