Korpuss PCJ PCJ20

Name: Korpuss PCJ PCJ20
Brand: INA/FAG
SKU: PCJ20
Price: 34.05 EUR
Availability: InStock

Apmaksas iespējas

34,05 €

AR PVN

4-5 Darba dienas

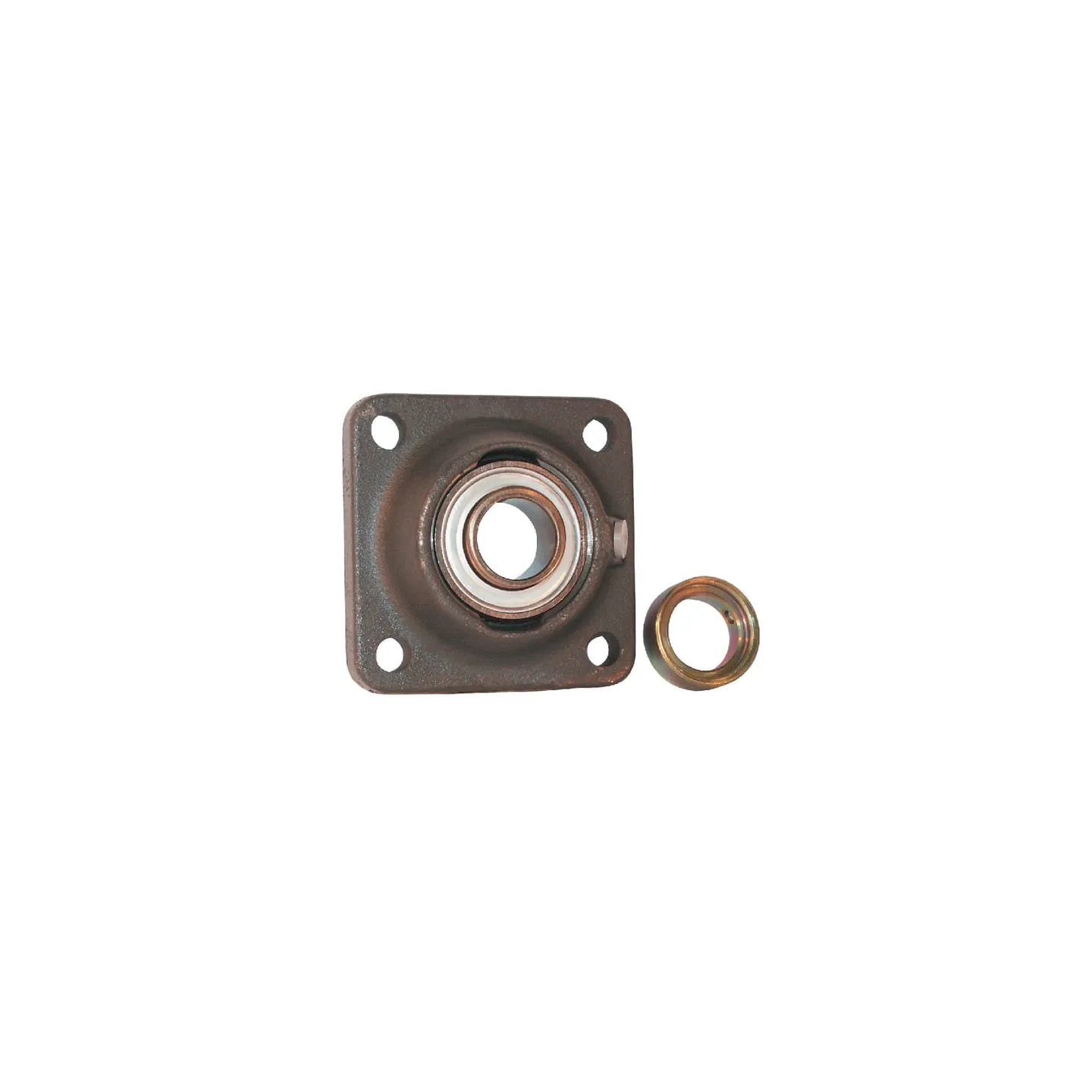

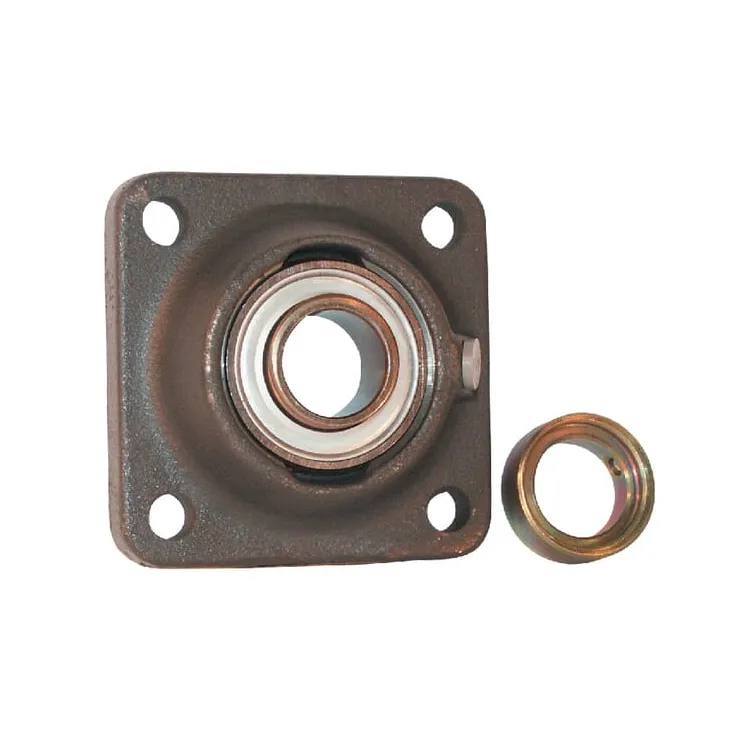

Korpuss PCJ PCJ20 INA/FAG

IR NOLIKTAVĀ

ID: 64929

Apraksts

Part number	PCJ20
EAN	4012802809497
Unit	Each
Properties	Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Housing type	Square flange
dBearing inside diameter	20 mm
Consists of	• Bearing block Clamp ring
Total length	86 mm
Housing width	86 mm
UTotal height	42.5 mm
THousing height	29 mm
LBearing inner ring width	31 mm
CFlange thickness	19 mm
Locking ring outside diameter	33 mm
Bearing balls distance to locking side end	19 mm
MMounting holes distance	63.5 mm
Mounting holes diameter	11.5 mm
Grease nipple thread diameter	M6
Original number equivalent	PCJ20-N
