Dzīvojamā vienība PB PB30

Name: Dzīvojamā vienība PB PB30
Brand: INA/FAG
SKU: PB30
Price: 45.96 EUR
Availability: InStock

Apmaksas iespējas

45,96 €

AR PVN

4-5 Darba dienas

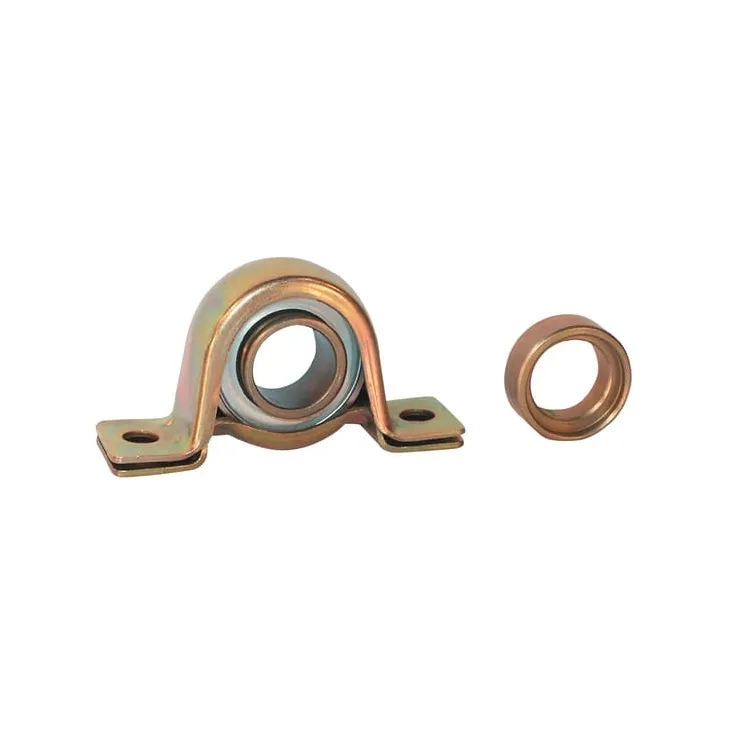

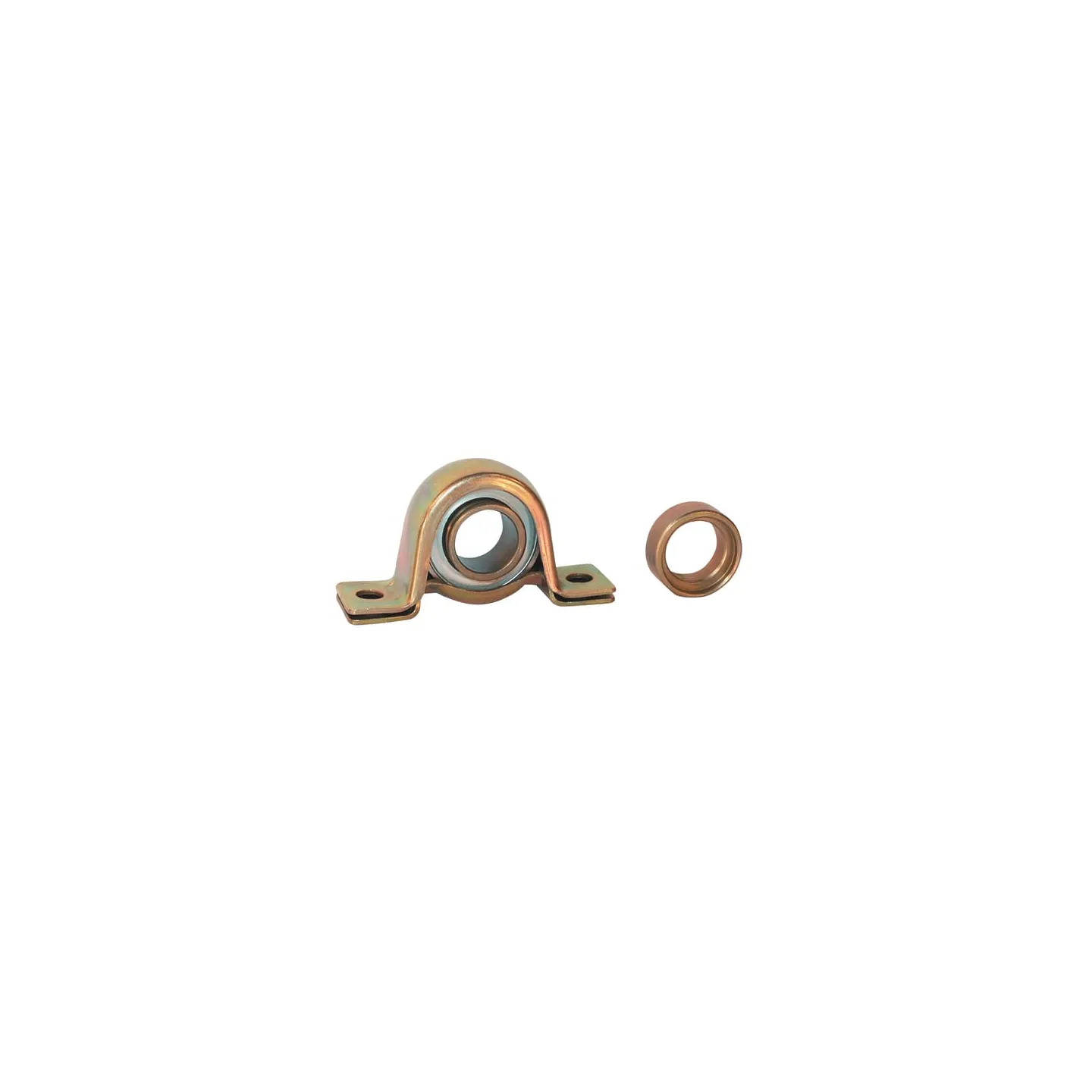

Dzīvojamā vienība PB PB30 INA/FAG

IR NOLIKTAVĀ

ID: 64933

Apraksts

Part number	PB30
EAN	4012802792867
Unit	Each
Properties	Housing components rust-resistant through Corrotect N coating Inner bearing has one-sided extended inner ring with clamp ring No subsequent lubrication possible
Housing type	Pillow block
dBearing inside diameter	30 mm
Consists of	2 halves of housing Clamp bearing Clamp ring
WTotal length	117.5 mm
BHousing width	38 mm
HTotal height	66.1 mm
L*Bearing inner ring width	35.7 mm
Locking ring outside diameter	44 mm
AShaft vertical distance	33.3 mm
OBearing balls distance to mounting surface	26.7 mm
Mounting holes distance	95 mm
ØKMounting holes diameter	11.5 mm
Grease nipple thread diameter	M6
Weight	0.44 kg
Basic radial load static	11300 N
Basic radial load dynamic	19500 N
Original number equivalent	PB30-XL
