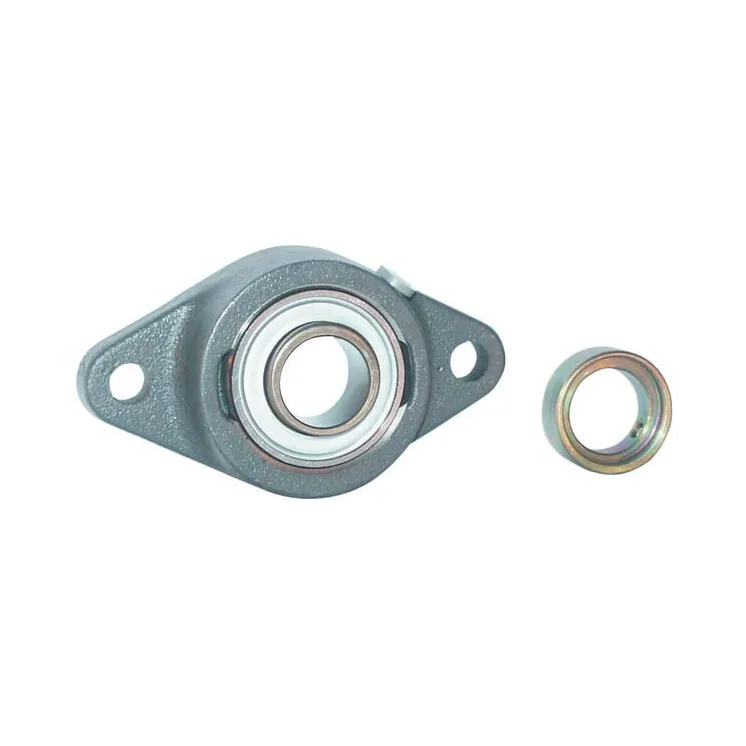

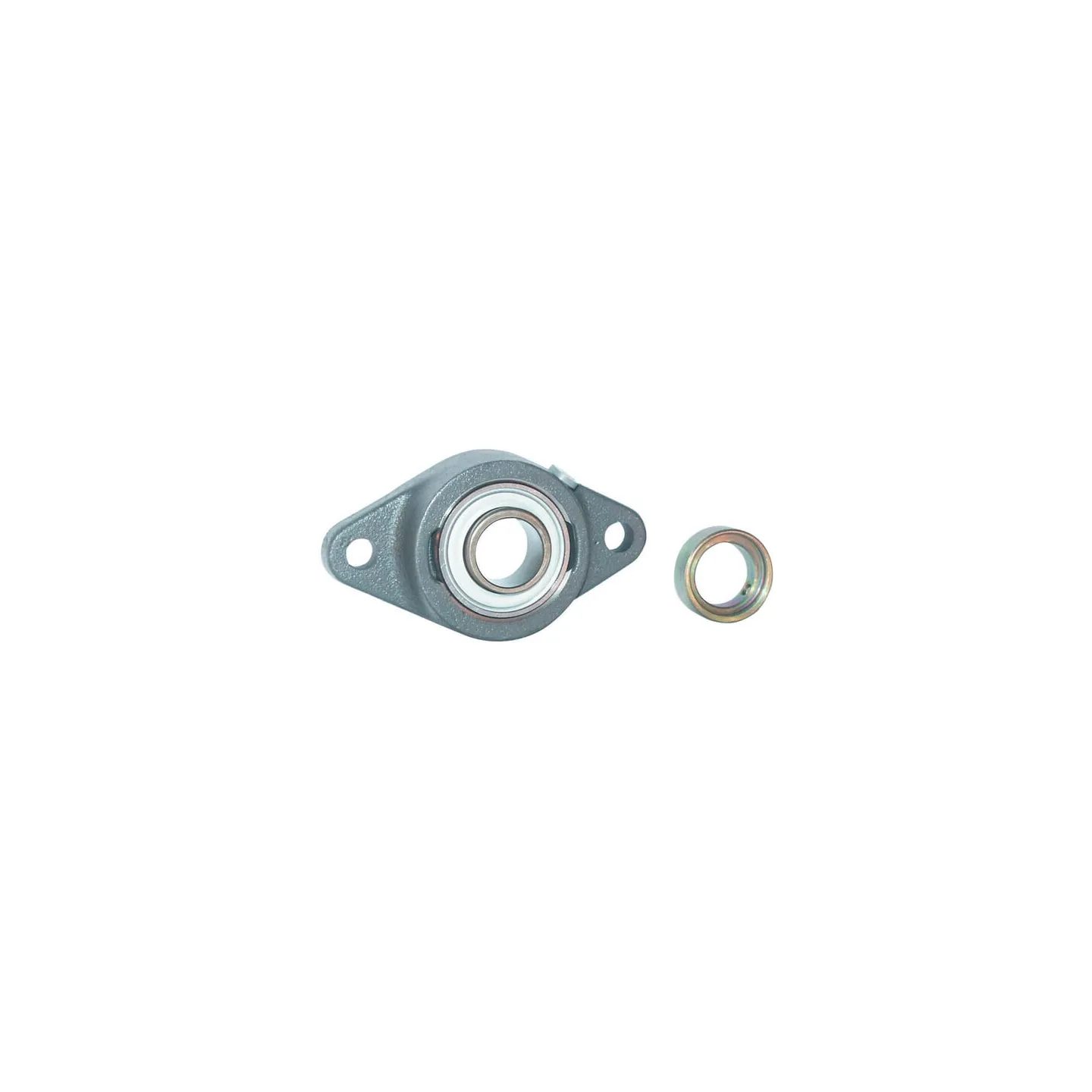

Korpuss PCJT PCJT20

Name: Korpuss PCJT PCJT20
Brand: INA/FAG
SKU: PCJT20
Price: 33.05 EUR
Availability: InStock

Apmaksas iespējas

33,05 €

AR PVN

4-5 Darba dienas

Korpuss PCJT PCJT20 INA/FAG

IR NOLIKTAVĀ

ID: 64934

Apraksts

Part number	PCJT20
EAN	4012802837582
Unit	Each
Properties	Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Housing type	Oval flange
dBearing inside diameter	20 mm
Consists of	Bearing block Clamp ring
Total length	61 mm
UHousing width	112 mm
UTotal height	42.5 mm
THousing height	28 mm
L*Bearing inner ring width	31 mm
Locking ring outside diameter	33 mm
Bearing balls distance to locking side end	19 mm
MMounting holes distance	90 mm
KMounting holes diameter	11.5 mm
Grease nipple thread diameter	M6
Weight	0.44 kg
Basic radial load static	6600 N
Basic radial load dynamic	13600 N
Original number equivalent	PCJT20-N
