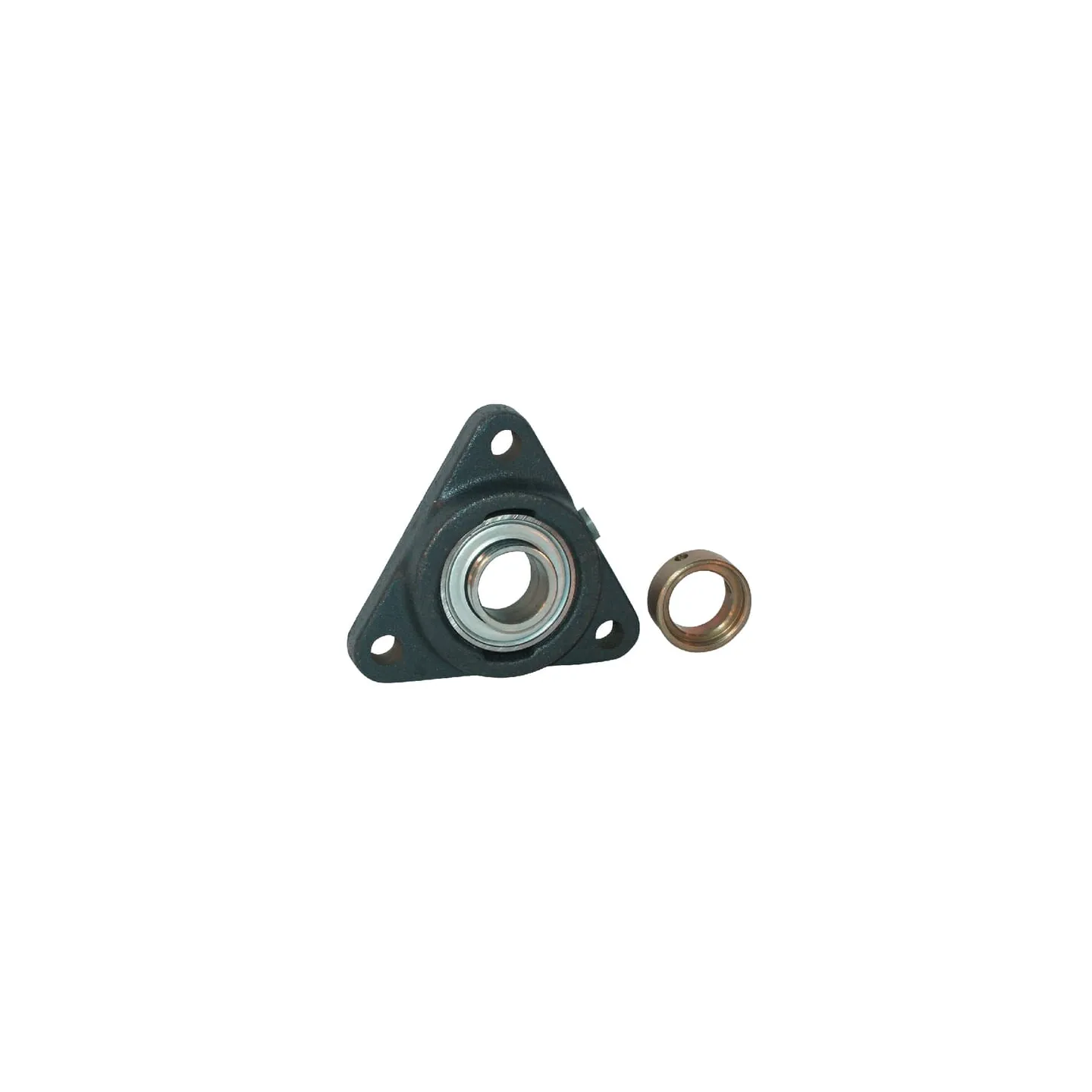

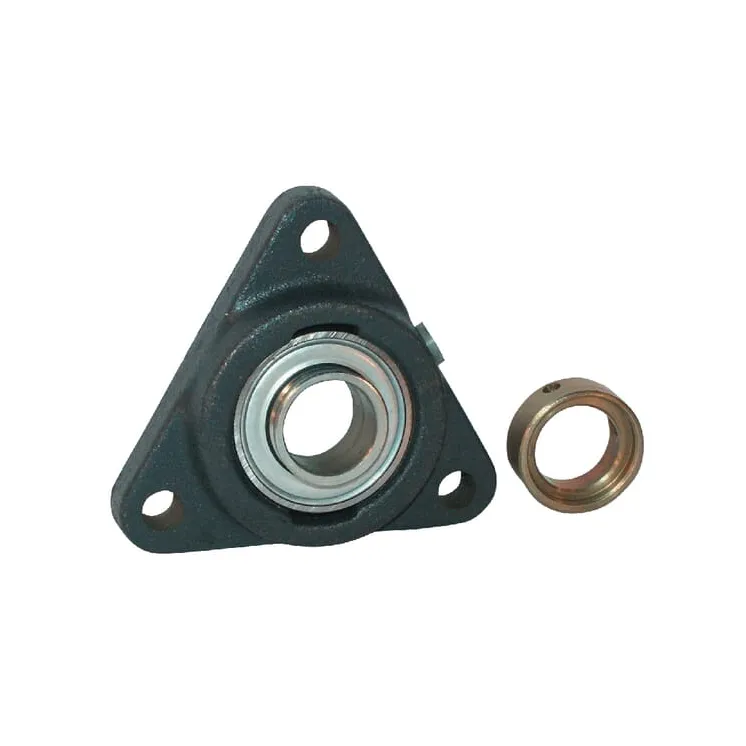

Korpuss PCFTR PCFTR30

Name: Korpuss PCFTR PCFTR30
Brand: INA/FAG
SKU: PCFTR30
Price: 59.91 EUR
Availability: InStock

Apmaksas iespējas

59,91 €

AR PVN

4-5 Darba dienas

Korpuss PCFTR PCFTR30 INA/FAG

IR NOLIKTAVĀ

ID: 64935

Apraksts

Part number	PCFTR30
EAN	4012802791013
Unit	Each
Properties	Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Housing type	Triangular flange
dBearing inside diameter	30 mm
Consists of	• Bearing block Clamp ring
Total length	117 mm
AHousing width	117 mm
UTotal height	40 mm
THousing height	24 mm
L*Bearing inner ring width	35.7 mm
Locking ring outside diameter	44 mm
BShaft vertical distance	44 mm
PBearing balls distance to mounting surface	13.3 mm
KMounting holes diameter	11.5 mm
Grease nipple thread diameter	M6
Weight	0.99 kg
Basic radial load static	11300 N
Basic radial load dynamic	20700 N
Original number equivalent	PCFTR30
