Dzīvoklis PHUSE PHUSE50N

Name: Dzīvoklis PHUSE PHUSE50N
Brand: INA/FAG
SKU: PHUSE50N
Price: 160.16 EUR
Availability: InStock

Apmaksas iespējas

160,16 €

AR PVN

4-5 Darba dienas

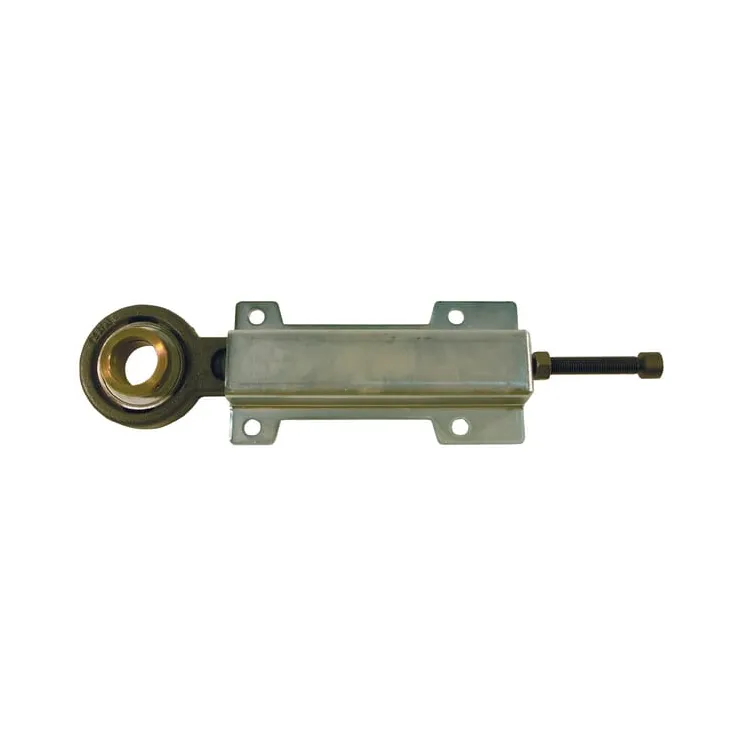

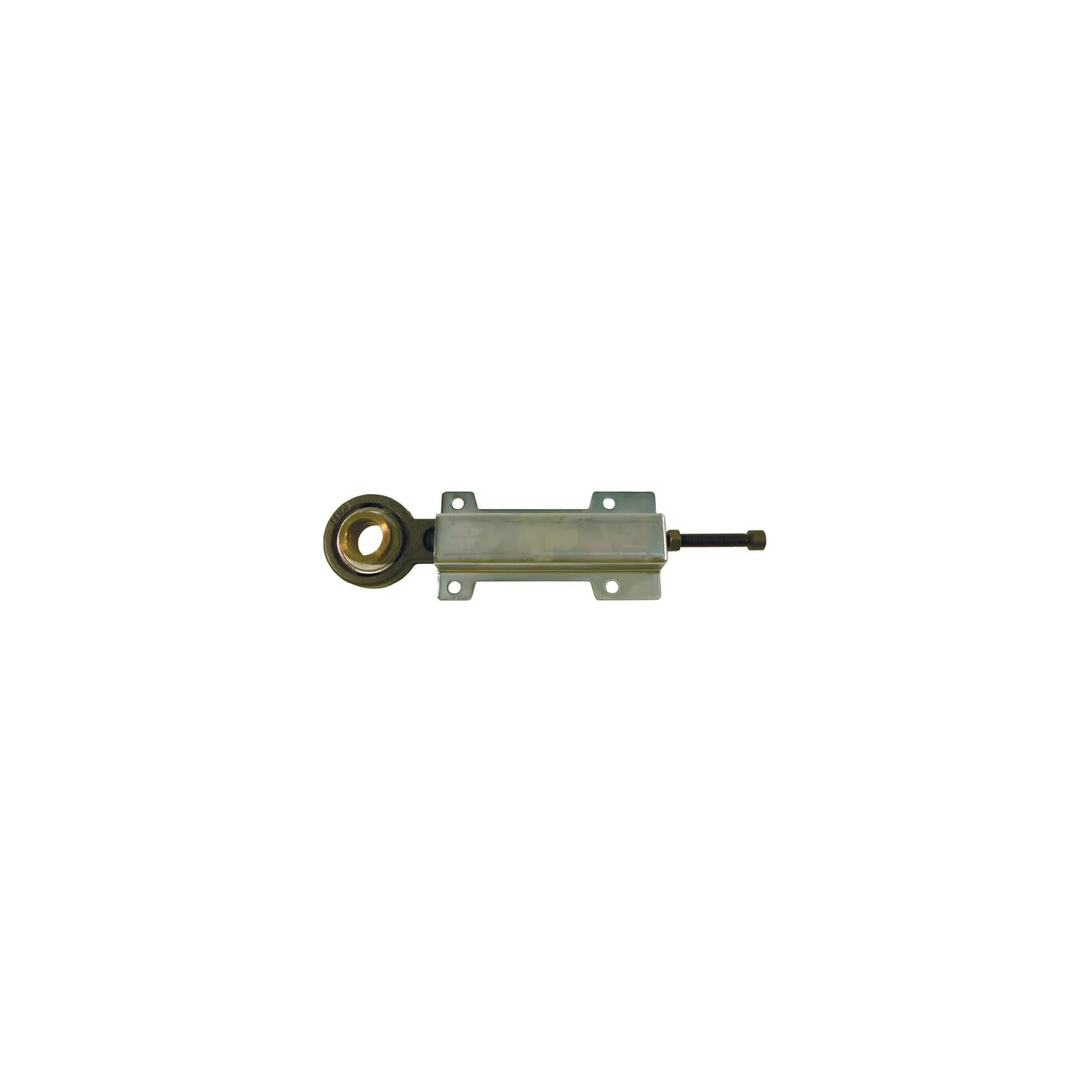

Dzīvoklis PHUSE PHUSE50N INA/FAG

IR NOLIKTAVĀ

ID: 64942

Apraksts

Part number	PHUSE50N
EAN	4012802831986
Unit	Each
Properties	Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
dBearing inside diameter	50 mm
Consists of	• Bearing block Clamp ring
Total length	256 mm
Outside diameter	120 mm
Total height	36 mm
BHousing height	30 mm
LBearing inner ring width	43.8 mm
EFlange thickness	26.5 mm
Locking ring outside diameter	69 mm
Bearing balls distance to mounting surface	32.7 mm
Mounting holes distance	180 mm
KMounting holes diameter	14 mm
Grease nipple thread diameter	M6
Mounting thread diameter	M16
Mounting plate width	130 mm
Weight	5.3 kg
Original number equivalent	PHUSE50-N
