Korpuss PME PME30

Name: Korpuss PME PME30
Brand: INA/FAG
SKU: PME30
Price: 62 EUR
Availability: InStock

Apmaksas iespējas

62,00 €

AR PVN

4-5 Darba dienas

Korpuss PME PME30 INA/FAG

IR NOLIKTAVĀ

ID: 64954

Apraksts

Part number	PME30
EAN	4012802812718
Unit	Each

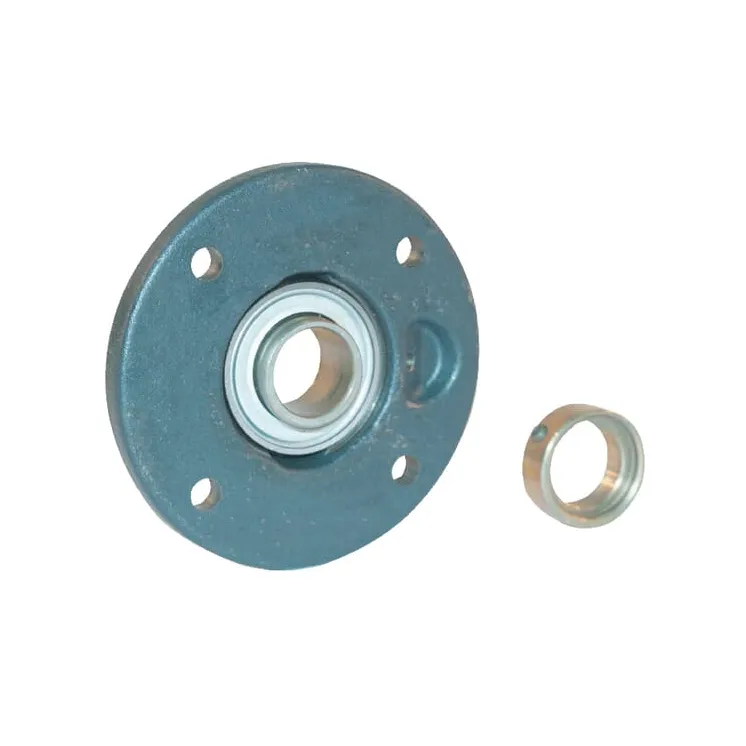

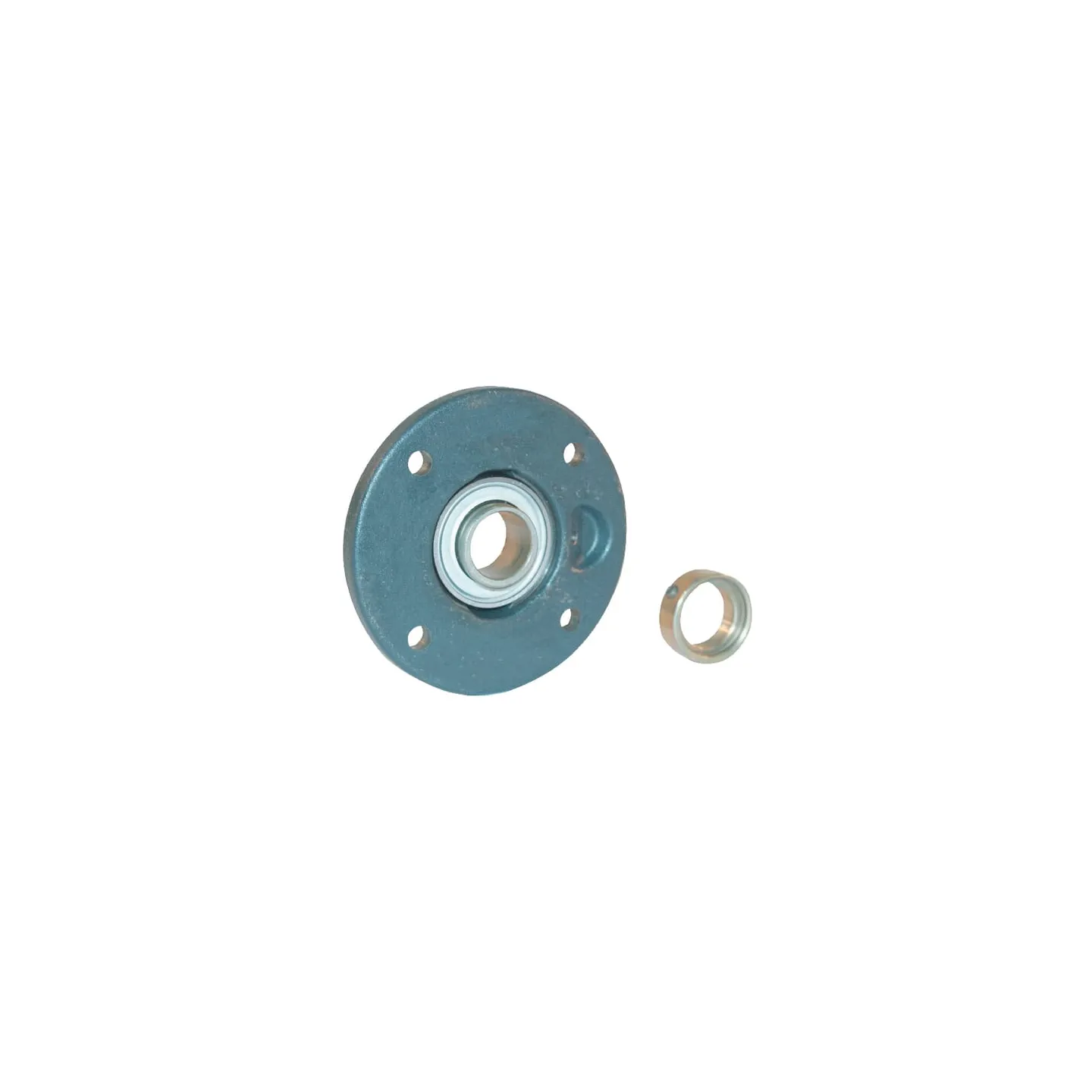

Details	Bearing housing has an adjustable edge
Properties	Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Benefits	Precise axis alignment possible Fixing points are relieved
Housing type	Round flange
dBearing inside diameter	30 mm
Consists of	Bearing block Clamp ring
Housing width	125 mm
Total height	24.7 mm
Total width	35.8 mm
Housing height	20.5 mm
L*Bearing inner ring width	35.8 mm
CFlange thickness	19 mm
Locking ring outside diameter	44 mm
KMounting holes diameter	11.5 mm
Grease nipple thread diameter	M6
Fitting edge diameter	80 mm
Weight	0.97 kg
Bearing material	Steel
Basic radial load static	11300 N
Basic radial load dynamic	19500 N
Original number equivalent	PME30-XL-N
