Korpuss PME PME35

Name: Korpuss PME PME35
Brand: INA/FAG
SKU: PME35
Price: 65.99 EUR
Availability: InStock

Apmaksas iespējas

65,99 €

AR PVN

4-5 Darba dienas

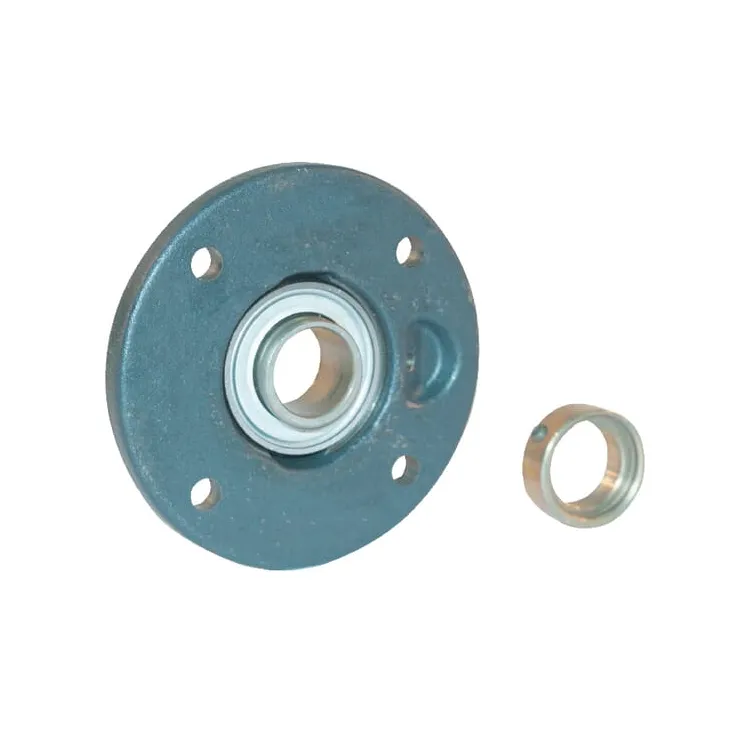

Korpuss PME PME35 INA/FAG

IR NOLIKTAVĀ

ID: 64955

Apraksts

Part number	PME35
EAN	4012802837445
Unit	Each
Details	Bearing housing has an adjustable edge
Properties	Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Benefits	Precise axis alignment possible Fixing points are relieved
Housing type	Round flange
dBearing inside diameter	35 mm
Consists of	Bearing block Clamp ring
Housing width	135 mm
Total height	28.5 mm
Total width	39 mm
Housing height	20.5 mm
L*Bearing inner ring width	39 mm
CFlange thickness	22 mm
Locking ring outside diameter	51 mm
KMounting holes diameter	11.5 mm
Grease nipple thread diameter	M6
Fitting edge diameter	90 mm
Weight	1.27 kg
Bearing material	Steel
Basic radial load static	15300 N
Basic radial load dynamic	25500 N
Original number equivalent	PME35-XL-N
