Korpuss PME PME20

Name: Korpuss PME PME20
Brand: INA/FAG
SKU: PME20
Price: 57.63 EUR
Availability: BackOrder

Apmaksas iespējas

57,63 €

AR PVN

Pēc pieprasījuma

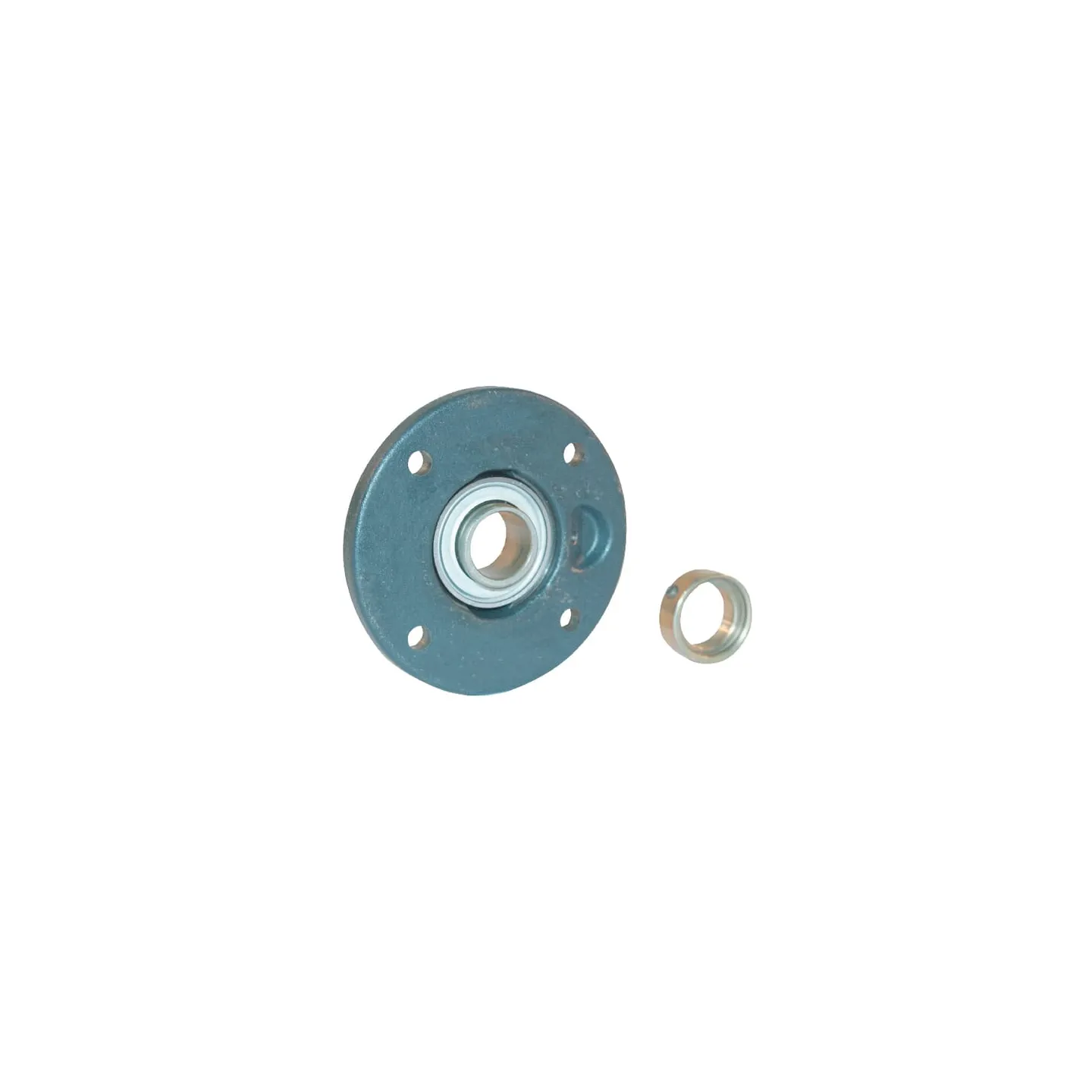

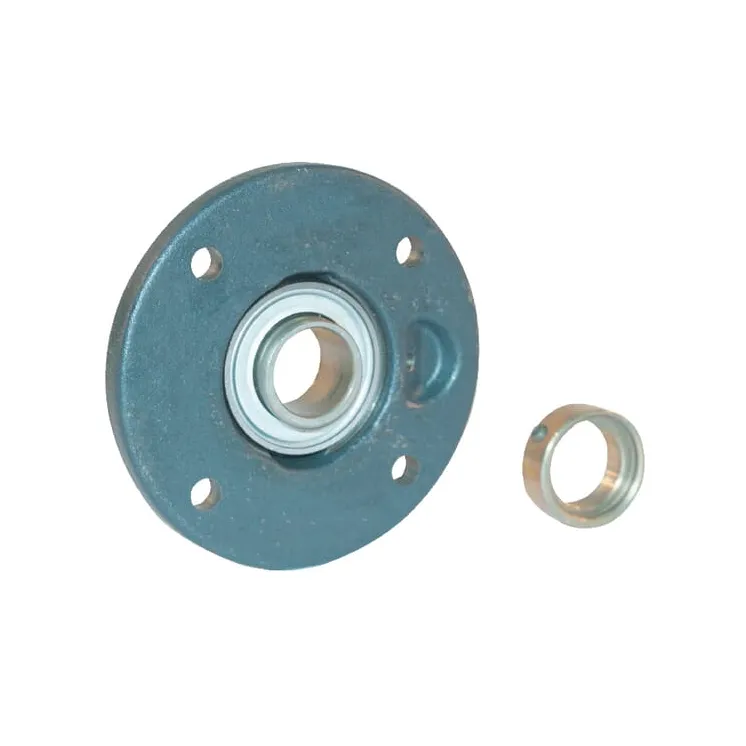

Korpuss PME PME20 INA/FAG

Uz pasūtījumu

ID: 64963

Apraksts

Part number	PME20
EAN	4012802837667
Unit	Each
Details	Bearing housing has an adjustable edge
Properties	Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Benefits	Precise axis alignment possible Fixing points are relieved
Housing type	Round flange
dBearing inside diameter	20 mm
Consists of	Bearing block Clamp ring
Housing width	100 mm
Total height	21.5 mm
Total width	31 mm
Housing height	17 mm
L*Bearing inner ring width	31 mm
CFlange thickness	22 mm
Locking ring outside diameter	33 mm
KMounting holes diameter	9 mm
Grease nipple thread diameter	M6
Fitting edge diameter	62 mm
Weight	0.53 kg
Bearing material	Steel
Basic radial load static	6600 N
Basic radial load dynamic	13600 N
Original number equivalent	PME20-XL-N
