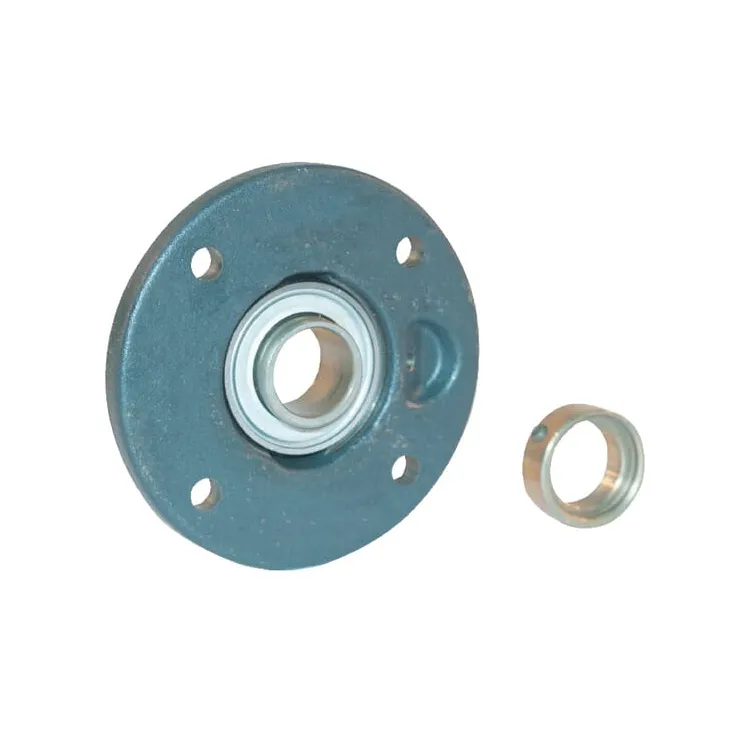

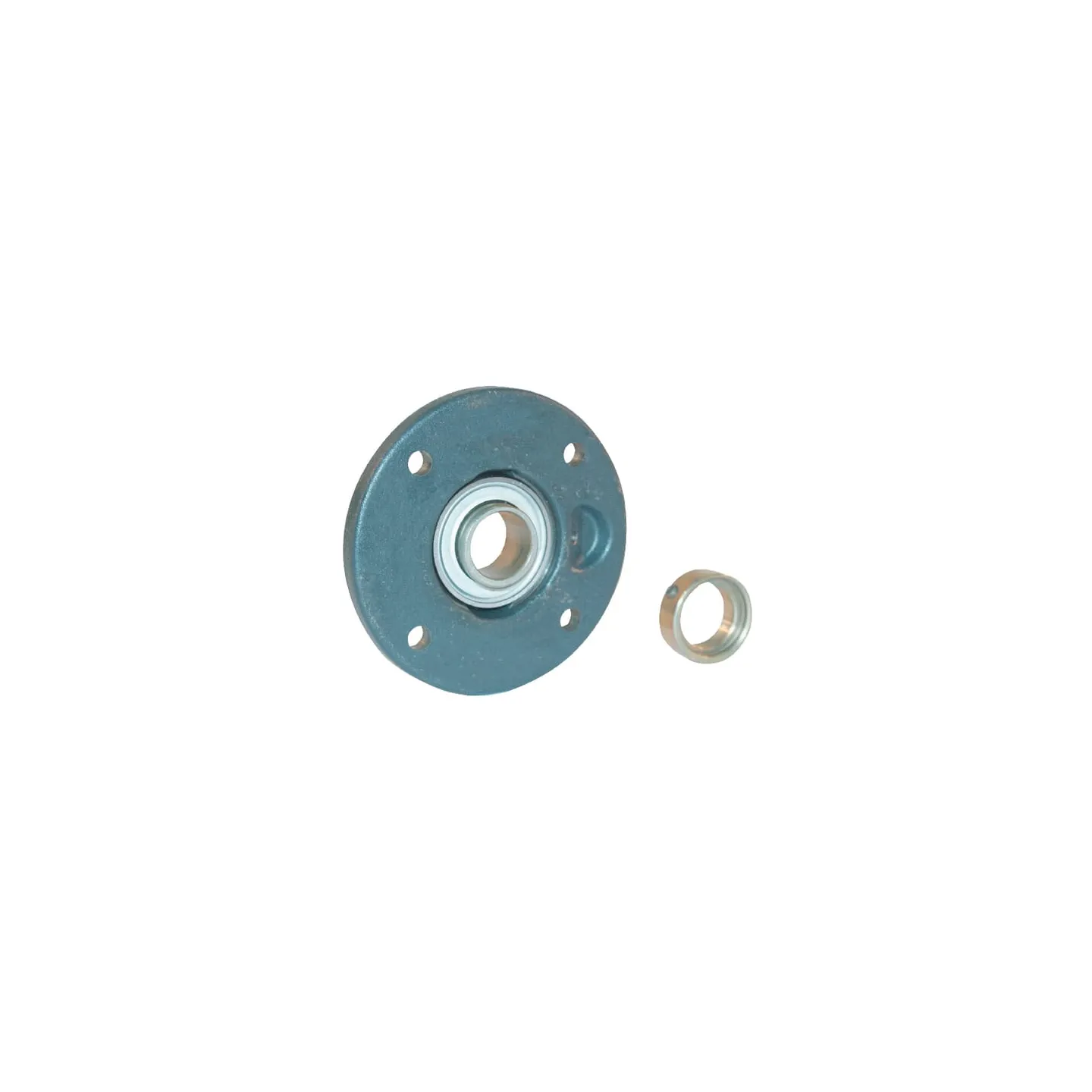

Korpuss PME PME50

Name: Korpuss PME PME50
Brand: INA/FAG
SKU: PME50
Price: 102.62 EUR
Availability: InStock

Apmaksas iespējas

102,62 €

AR PVN

4-5 Darba dienas

Korpuss PME PME50 INA/FAG

IR NOLIKTAVĀ

ID: 64967

Apraksts

Part number	PME50
EAN	4012802837056
Unit	Each
Details	Bearing housing has an adjustable edge
Properties	Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Benefits	Precise axis alignment possible Fixing points are relieved
Housing type	Round flange
dBearing inside diameter	50 mm
Consists of	Bearing block Clamp ring
Housing width	165 mm
Total height	31.8 mm
Total width	43.8 mm
Housing height	25 mm
L*Bearing inner ring width	43.8 mm
CFlange thickness	17 mm
Locking ring outside diameter	69 mm
KMounting holes diameter	14 mm
Grease nipple thread diameter	M6
Fitting edge diameter	110 mm
Weight	2.13 kg
Bearing material	Steel
Basic radial load static	23200 N
Basic radial load dynamic	35000 N
Original number equivalent	PME50-XL-N
