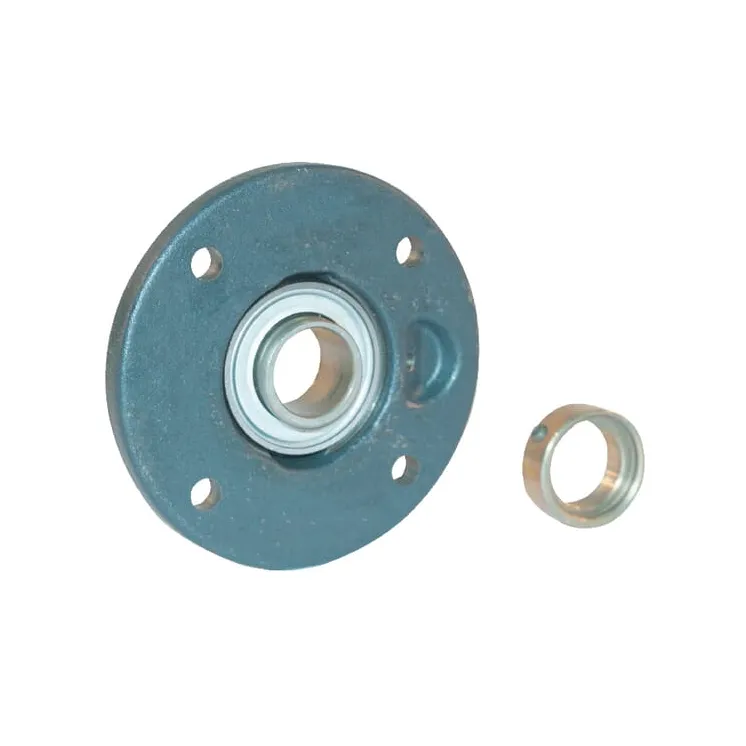

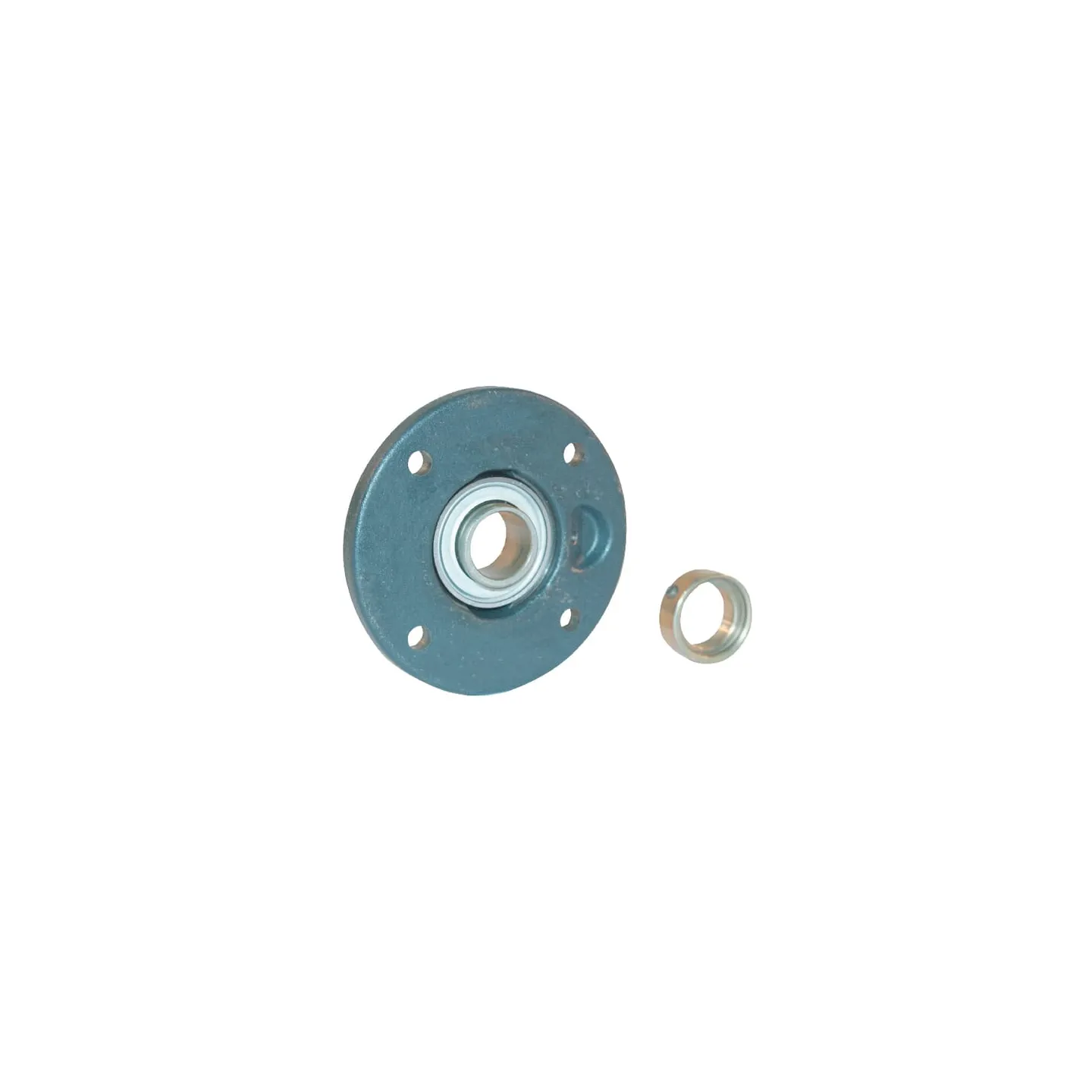

Korpuss PME PME25

Name: Korpuss PME PME25
Brand: INA/FAG
SKU: PME25
Price: 51.82 EUR
Availability: InStock

Apmaksas iespējas

51,82 €

AR PVN

4-5 Darba dienas

Korpuss PME PME25 INA/FAG

IR NOLIKTAVĀ

ID: 64974

Apraksts

Part number	PME25
EAN	4012802837629
Unit	Each
Details	Bearing housing has an adjustable edge
Properties	Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Benefits	Precise axis alignment possible Fixing points are relieved
Housing type	Round flange
dBearing inside diameter	25 mm
Consists of	Bearing block Clamp ring
Housing width	115 mm
Total height	21 mm
Total width	31 mm
Housing height	19 mm
L*Bearing inner ring width	31 mm
CFlange thickness	19 mm
Locking ring outside diameter	37.5 mm
MMounting holes/bolts circle diameter	90 mm
KMounting holes diameter	9 mm
Grease nipple thread diameter	M6
Fitting edge diameter	70 mm
Weight	0.73 kg
Bearing material	Steel
Basic radial load static	7800 N
Basic radial load dynamic	14900 N
Original number equivalent	PME25-XL-N
