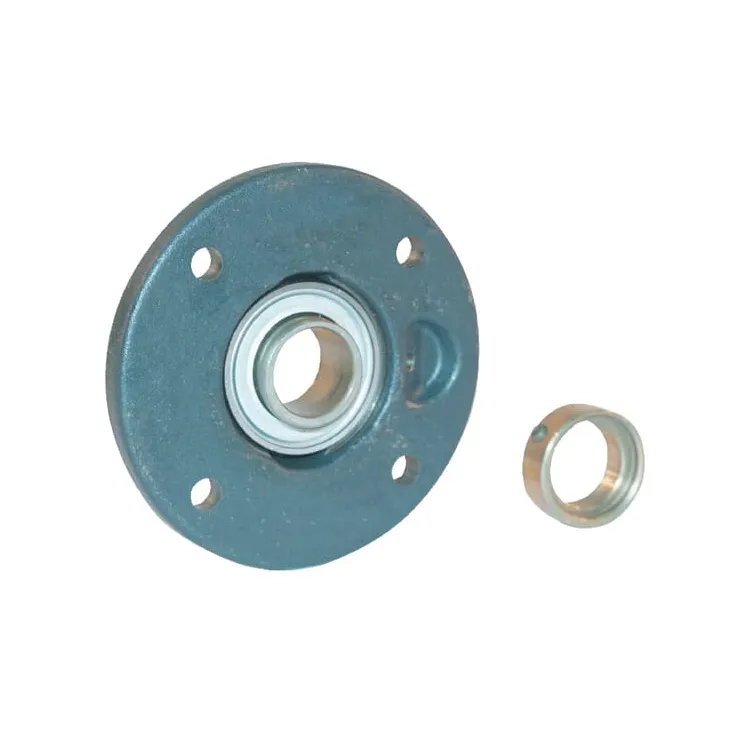

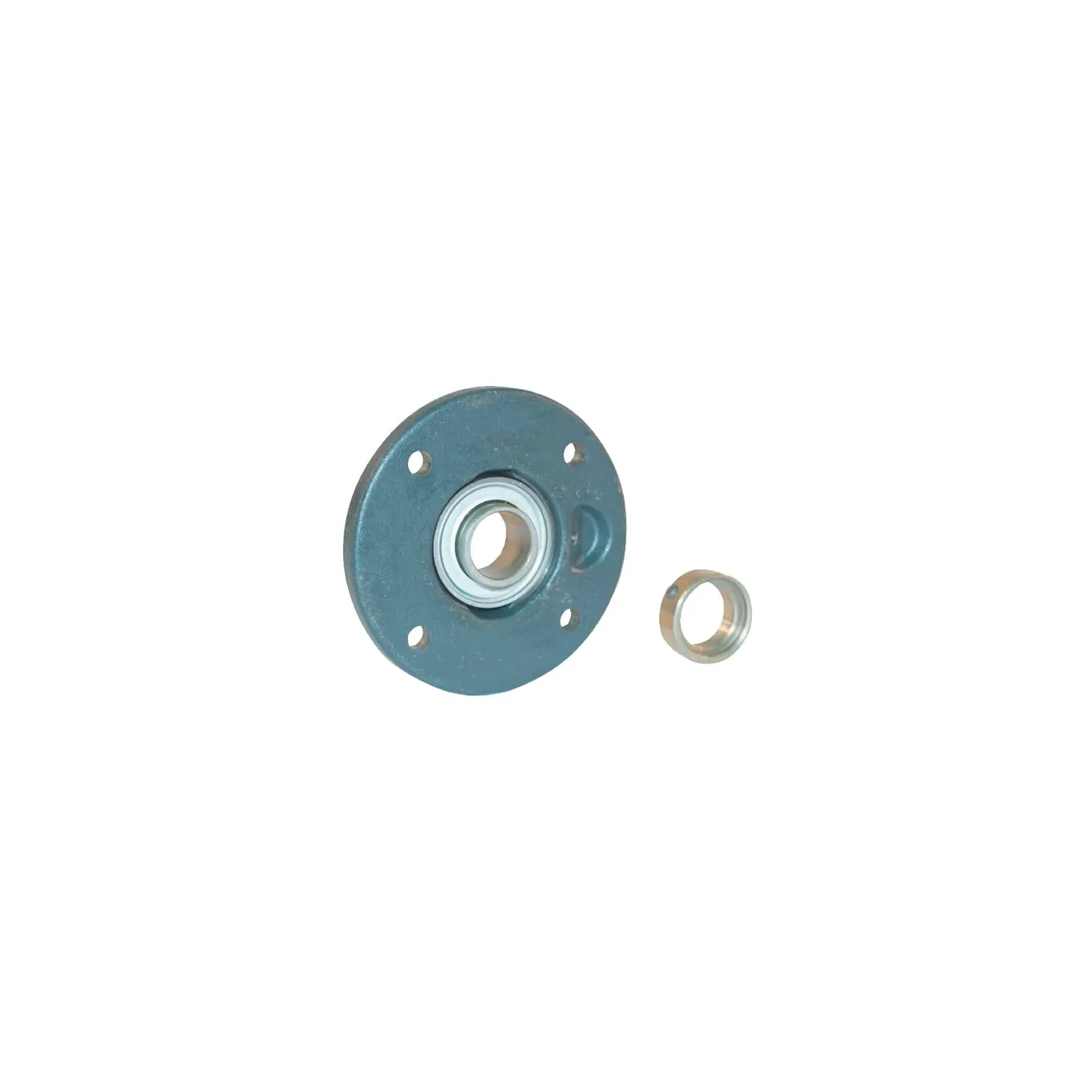

Korpuss PME PME55

Name: Korpuss PME PME55
Brand: INA/FAG
SKU: PME55
Price: 167.96 EUR
Availability: BackOrder

Apmaksas iespējas

167,96 €

AR PVN

Pēc pieprasījuma

Korpuss PME PME55 INA/FAG

Uz pasūtījumu

ID: 64979

Apraksts

Part number	PME55
EAN	4012802817423
Unit	Each
Details	Bearing housing has an adjustable edge
Properties	Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Benefits	Precise axis alignment possible Fixing points are relieved
Housing type	Round flange
dBearing inside diameter	55 mm
Consists of	Bearing block Clamp ring
Housing width	185 mm
Total height	36.4 mm
Total width	48.4 mm
Housing height	27.5 mm
L*Bearing inner ring width	48.4 mm
CFlange thickness	19 mm
Locking ring outside diameter	76 mm
KMounting holes diameter	18 mm
Grease nipple thread diameter	M6
Fitting edge diameter	125 mm
Weight	3.24 kg
Bearing material	Steel
Basic radial load static	29000 N
Basic radial load dynamic	46000 N
Original number equivalent	PME55-XL
