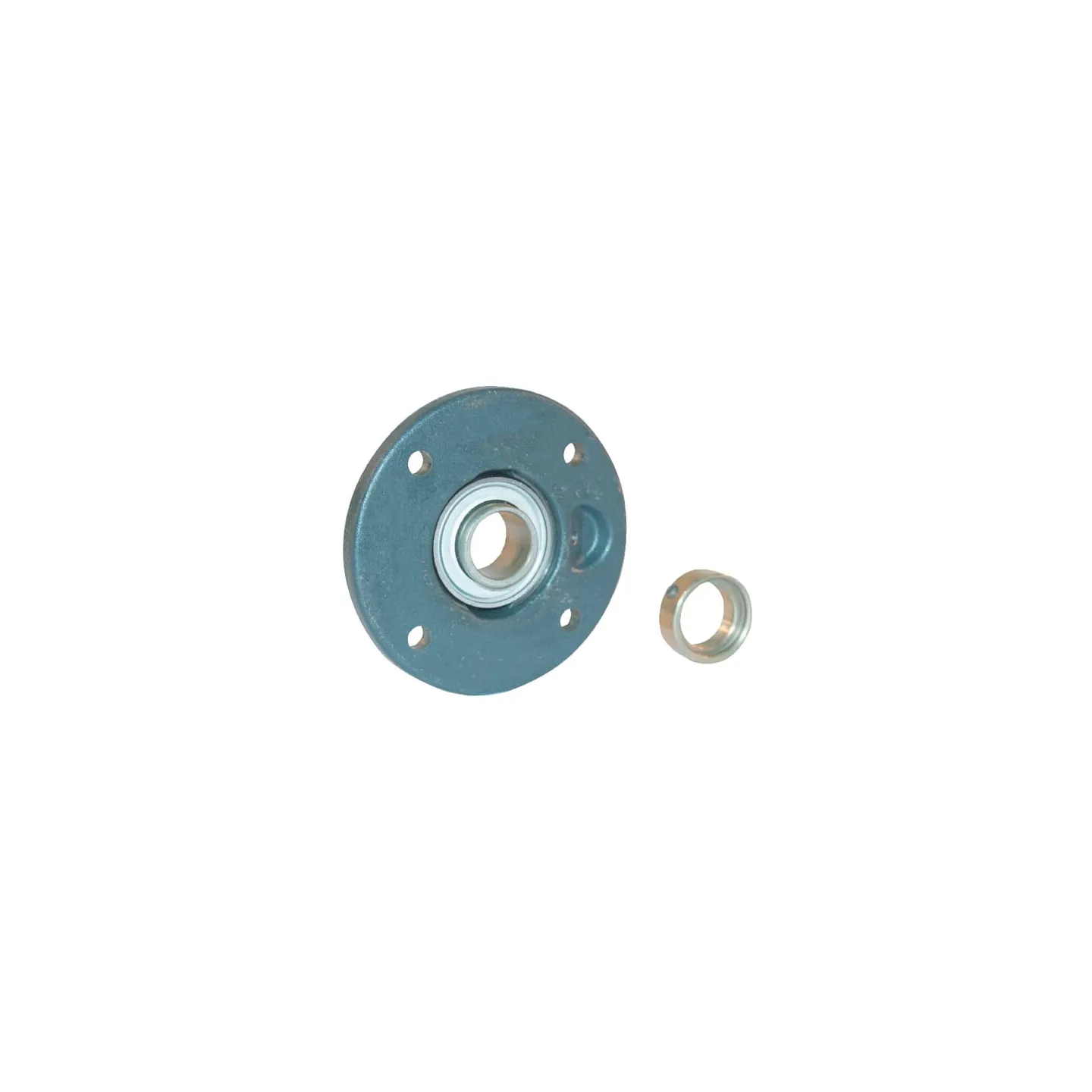

Korpuss PME PME45

Name: Korpuss PME PME45
Brand: INA/FAG
SKU: PME45
Price: 93.22 EUR
Availability: InStock

Apmaksas iespējas

93,22 €

AR PVN

4-5 Darba dienas

Korpuss PME PME45 INA/FAG

IR NOLIKTAVĀ

ID: 64989

Apraksts

Part number	PME45
EAN	4012802804287
Unit	Each
Details	Bearing housing has an adjustable edge
Properties	Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Benefits	Precise axis alignment possible Fixing points are relieved
Housing type	Round flange
dBearing inside diameter	45 mm
Consists of	Bearing block Clamp ring
Housing width	155 mm
Total height	30.7 mm
Total width	43.8 mm
Housing height	25 mm
L*Bearing inner ring width	43.8 mm
CFlange thickness	16 mm
Locking ring outside diameter	63 mm
KMounting holes diameter	14 mm
Grease nipple thread diameter	M6
Fitting edge diameter	105 mm
Weight	1.86 kg
Bearing material	Steel
Basic radial load static	20400 N
Basic radial load dynamic	32500 N
Original number equivalent	PME45-XL
