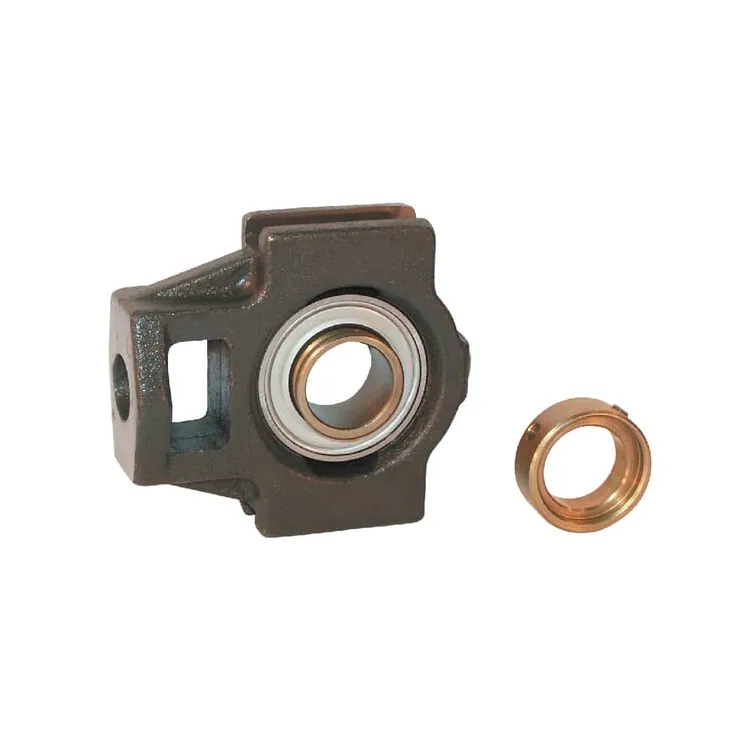

Dzīvojamā vienība PTUE PTUE60

Name: Dzīvojamā vienība PTUE PTUE60
Brand: INA/FAG
SKU: PTUE60
Price: 181.48 EUR
Availability: BackOrder

Apmaksas iespējas

181,48 €

AR PVN

Pēc pieprasījuma

Dzīvojamā vienība PTUE PTUE60 INA/FAG

Uz pasūtījumu

ID: 64991

Apraksts

Part number	PTUE60
EAN	4012802799330
Unit	Each
Properties	Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
dBearing inside diameter	60 mm
Consists of	• Bearing block Clamp ring
ATotal length	186 mm
VHousing width	146 mm
Total height	146 mm
MHousing length	130 mm
Total width	146 mm
LBearing inner ring width	53.1 mm
Locking ring outside diameter	84 mm
HShaft vertical distance	118 mm
OBearing balls distance to mounting surface	39.6 mm
Mounting holes distance	60 mm
KMounting holes diameter	35 mm
Grease nipple thread diameter	M6
K1Mounting thread length	63.5 mm
DGuide groove width	22 mm
WGuide groove length	100 mm
Weight	4.35 kg
Original number equivalent	PTUE60
