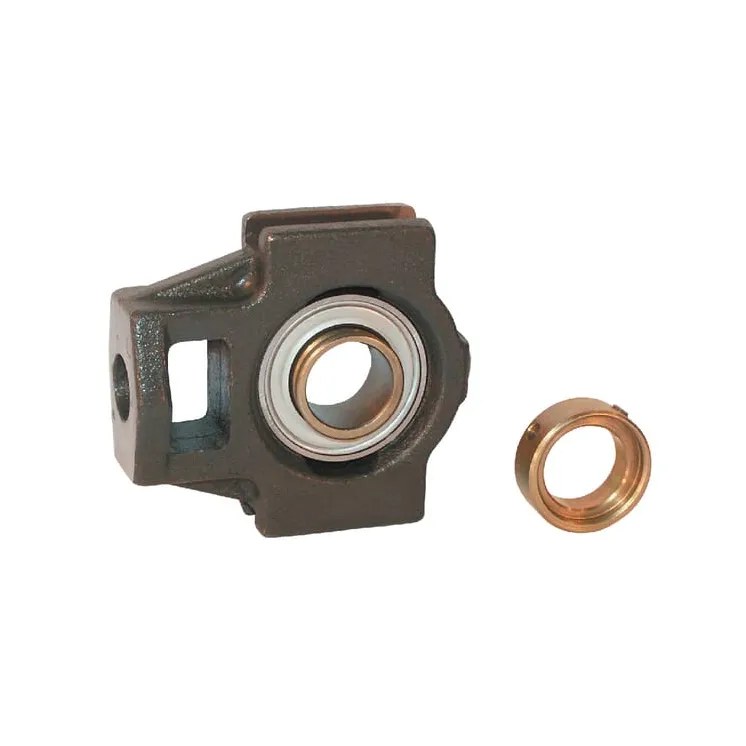

Dzīvojamā vienība PTUE PTUE30

Name: Dzīvojamā vienība PTUE PTUE30
Brand: INA/FAG
SKU: PTUE30
Price: 72.91 EUR
Availability: InStock

Apmaksas iespējas

72,91 €

AR PVN

4-5 Darba dienas

Dzīvojamā vienība PTUE PTUE30 INA/FAG

IR NOLIKTAVĀ

ID: 64992

Apraksts

Part number	PTUE30
EAN	4054372273247
Unit	Each
Properties	Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
dBearing inside diameter	30 mm
Consists of	• Bearing block Clamp ring
ATotal length	114.5 mm
VHousing width	102 mm
MHousing length	89 mm
Total width	102 mm
LBearing inner ring width	35.7 mm
Locking ring outside diameter	44 mm
HShaft vertical distance	70 mm
OBearing balls distance to mounting surface	26.7 mm
Mounting holes distance	30 mm
KMounting holes diameter	22 mm
Grease nipple thread diameter	M6
K1Mounting thread length	36.5 mm
DGuide groove width	12 mm
WGuide groove length	57 mm
Weight	1.19 kg
Original number equivalent	PTUE30
