Dzīvojamā vienība PTUE PTUE45

Name: Dzīvojamā vienība PTUE PTUE45
Brand: INA/FAG
SKU: PTUE45
Price: 108.6 EUR
Availability: InStock

Apmaksas iespējas

108,60 €

AR PVN

4-5 Darba dienas

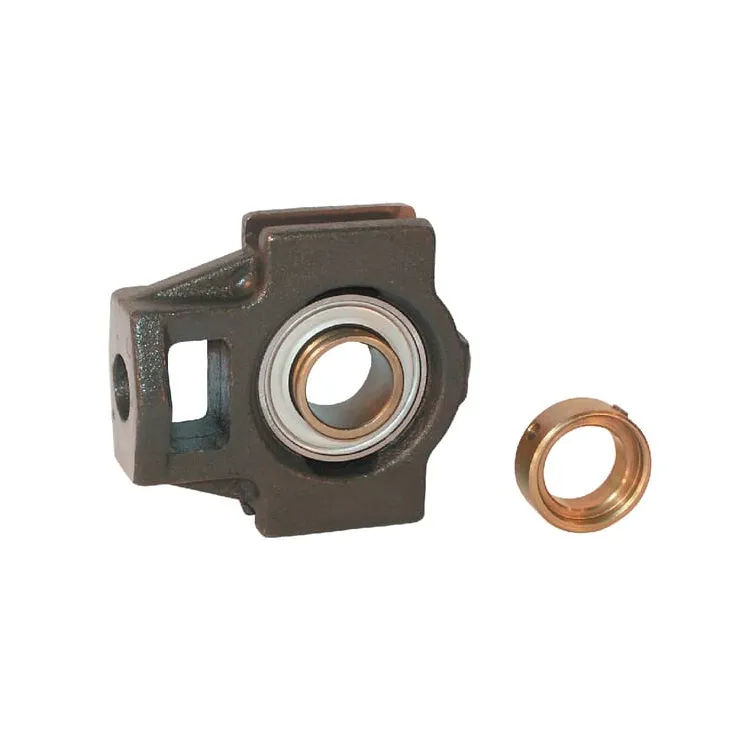

Dzīvojamā vienība PTUE PTUE45 INA/FAG

IR NOLIKTAVĀ

ID: 65000

Apraksts

Part number	PTUE45
EAN	4012802799354
Unit	Each
Properties	Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
dBearing inside diameter	45 mm
Consists of	• Bearing block Clamp ring
ATotal length	141 mm
VHousing width	115 mm
Total height	115 mm
MHousing length	102 mm
Total width	115 mm
LBearing inner ring width	43.8 mm
Locking ring outside diameter	63 mm
HShaft vertical distance	88 mm
OBearing balls distance to mounting surface	32.7 mm
Mounting holes distance	45 mm
KMounting holes diameter	29 mm
Mounting holes length	49 mm
Grease nipple thread diameter	M6
DGuide groove width	16 mm
WGuide groove length	82 mm
Weight	2.3 kg
Original number equivalent	PTUE45
