Gultņa ieliktnis 30x55x13mm RALE30NPPB

Name: Gultņa ieliktnis 30x55x13mm RALE30NPPB
Brand: INA/FAG
SKU: RALE30NPPB
Price: 35.34 EUR
Availability: BackOrder

Apmaksas iespējas

35,34 €

AR PVN

Pēc pieprasījuma

Gultņa ieliktnis 30x55x13mm RALE30NPPB INA/FAG

Uz pasūtījumu

ID: 65028

Apraksts

Part number	RALE30NPPB
EAN	4012802781960
Unit	Each

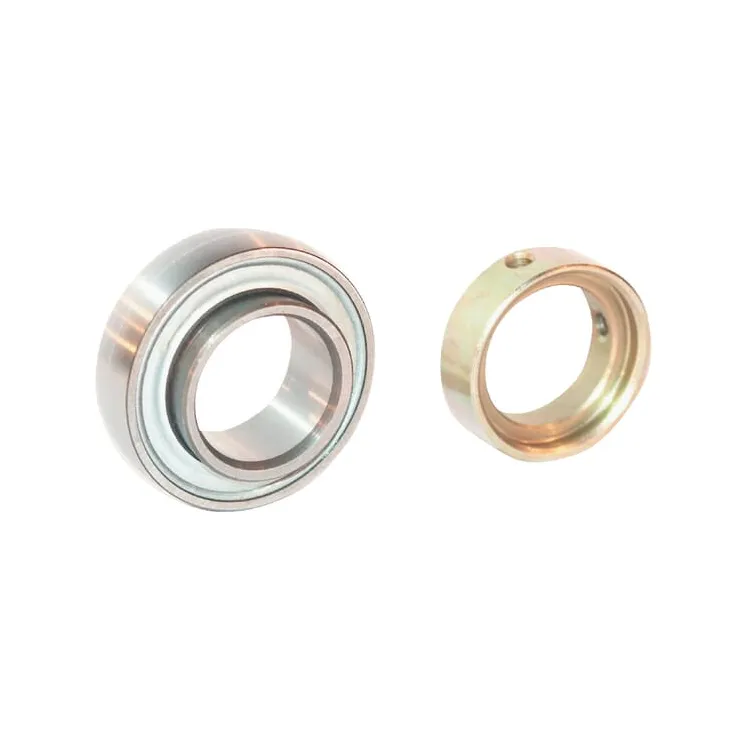

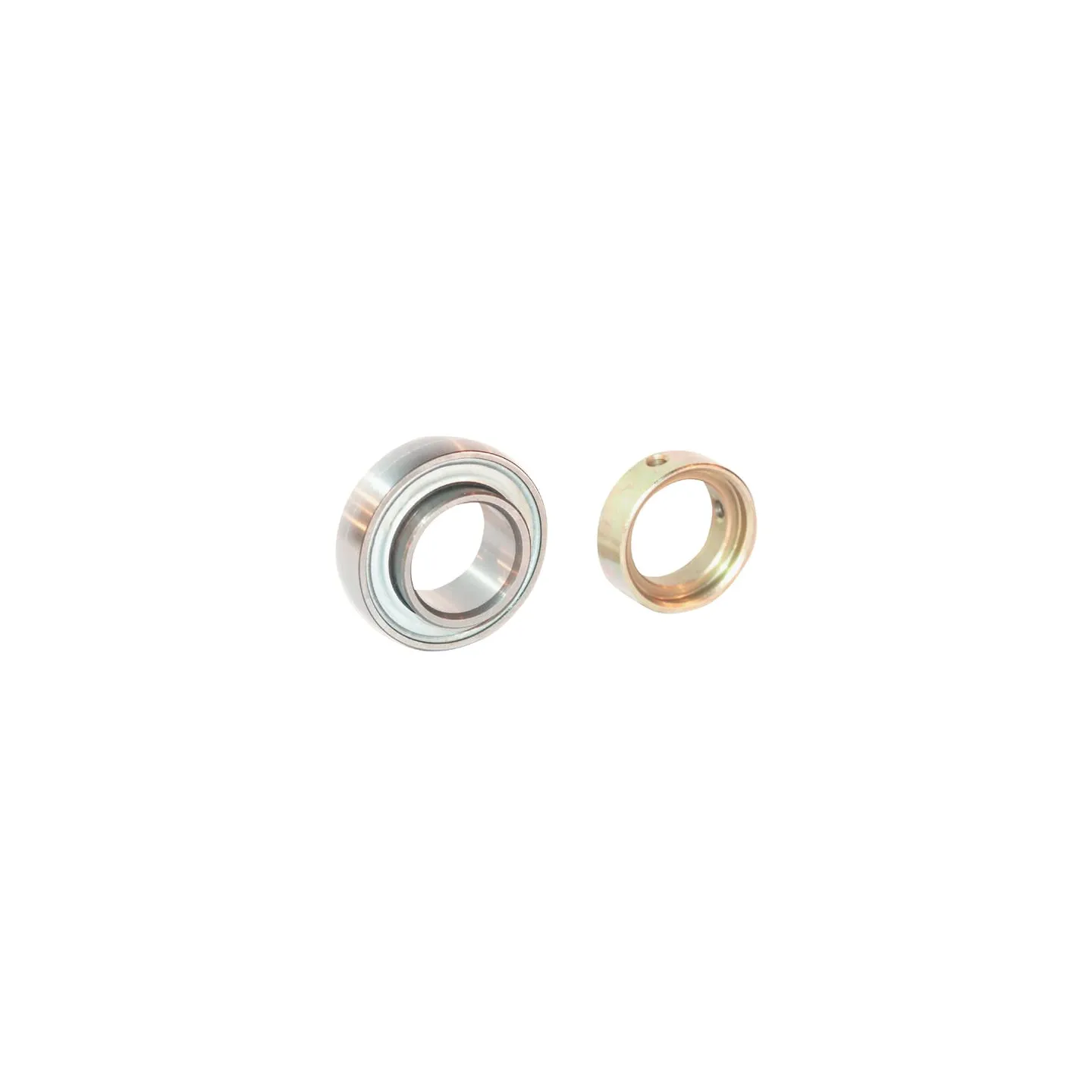

Long description	Ball bearing inserts INA/FAG, series RALE..NPPB
Application range	Mobile mechanical engineering Stationary mechanical engineering
Properties	One-sided extended inner ring with clamp ring Convex outer ring without lubricating holes P seal Polyamide housing
dInside diameter	30 mm
DOutside diameter	55 mm
Consists of	Clamp bearing Clamp ring
BOuter ring width	13 mm
CInner ring width	18.5 mm
Locking collar and inner ring width	26.5 mm
Locking collar outside diameter	42.5 mm
FOutside diameter of inner ring	35.7 mm
Basic radial load static	8300 N
Basic radial load dynamic	14100 N
Wrench/Spanner size	2.5 mm
Ball centre to end distance	6.5 mm
Original number equivalent	RALE30-NPP-B
Weight	0.18 kg
