Korpuss RA RA25 SAPF205TR

Name: Korpuss RA RA25 SAPF205TR
Brand: INA/FAG
SKU: RA25
Price: 33.14 EUR
Availability: BackOrder

Apmaksas iespējas

33,14 €

AR PVN

Pēc pieprasījuma

Korpuss RA RA25 INA/FAG SAPF205TR

Uz pasūtījumu

ID: 65039

Apraksts

Part number	RA25
EAN	4012802792744
Unit	Each
Properties	Housing components rust-resistant through Corrotect N coating Inner bearing has one-sided extended inner ring with clamp ring No subsequent lubrication possible Up to and including bearing block RA35: 3 attachment openings RA40 and above: 4 attachment openings
Housing type	Round flange
dBearing inside diameter	25 mm

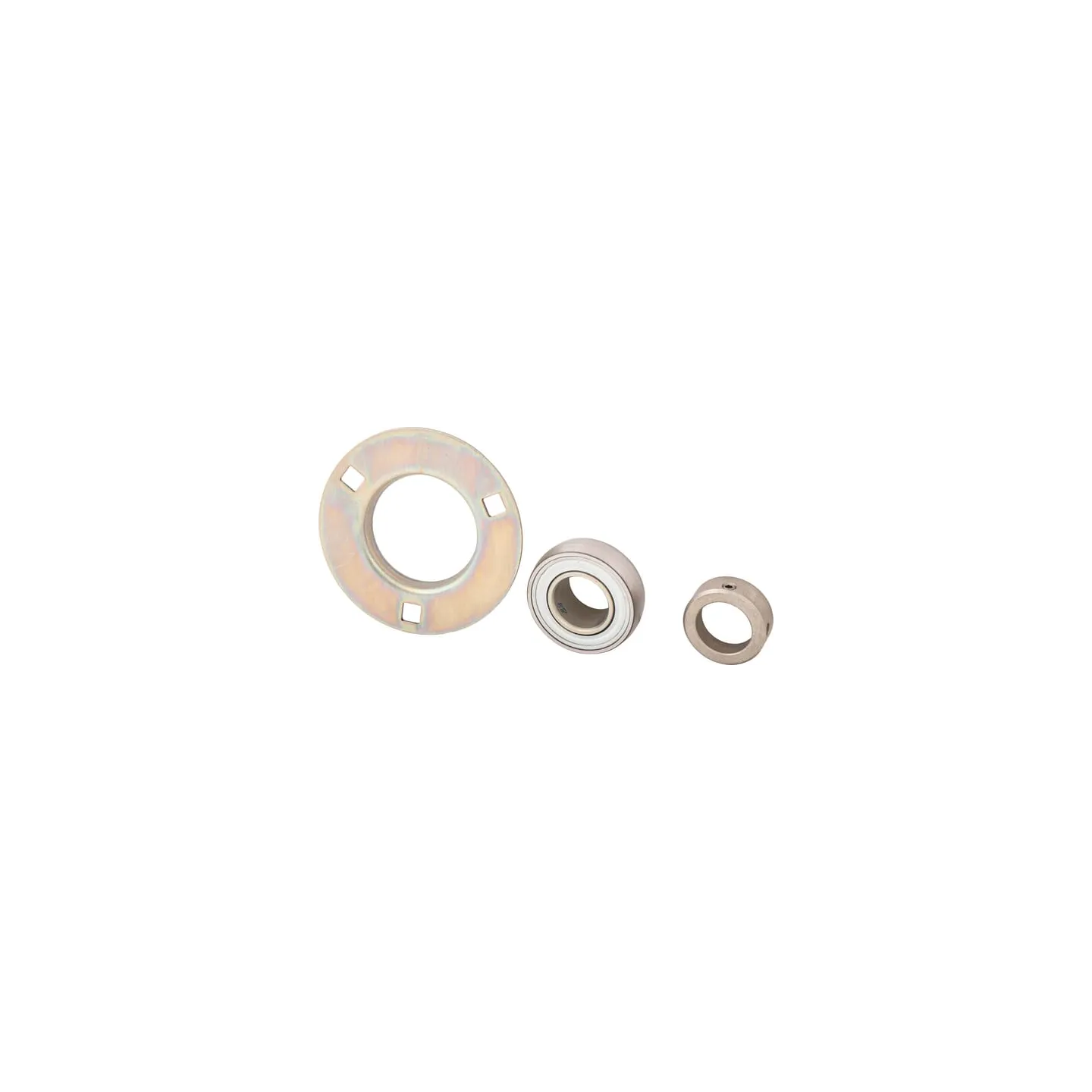

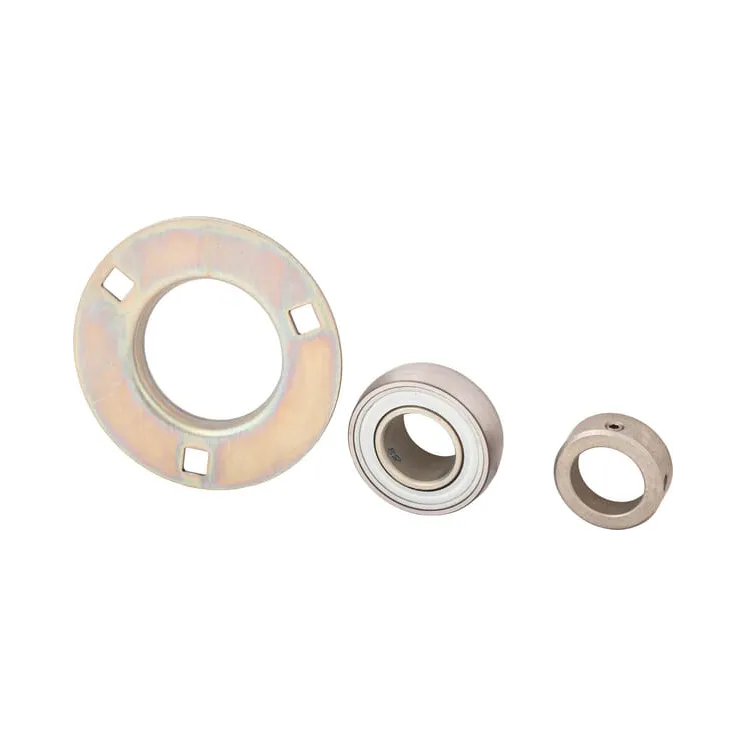

Consists of	2 halves of housing Clamp bearing Clamp ring
Housing width	95 mm
Total height	25.5 mm
Total width	31 mm
Housing height	8.7 mm
L*Bearing inner ring width	31 mm
Flange thickness	2 mm
Locking ring outside diameter	37.5 mm
Mounting holes/bolts circle diameter	76 mm
KMounting holes diameter	8.7 mm
Weight	0.37 kg
Housing material	Steel
Bearing material	Steel
Basic radial load static	7800 N
Basic radial load dynamic	14000 N
Original number equivalent	RA25
