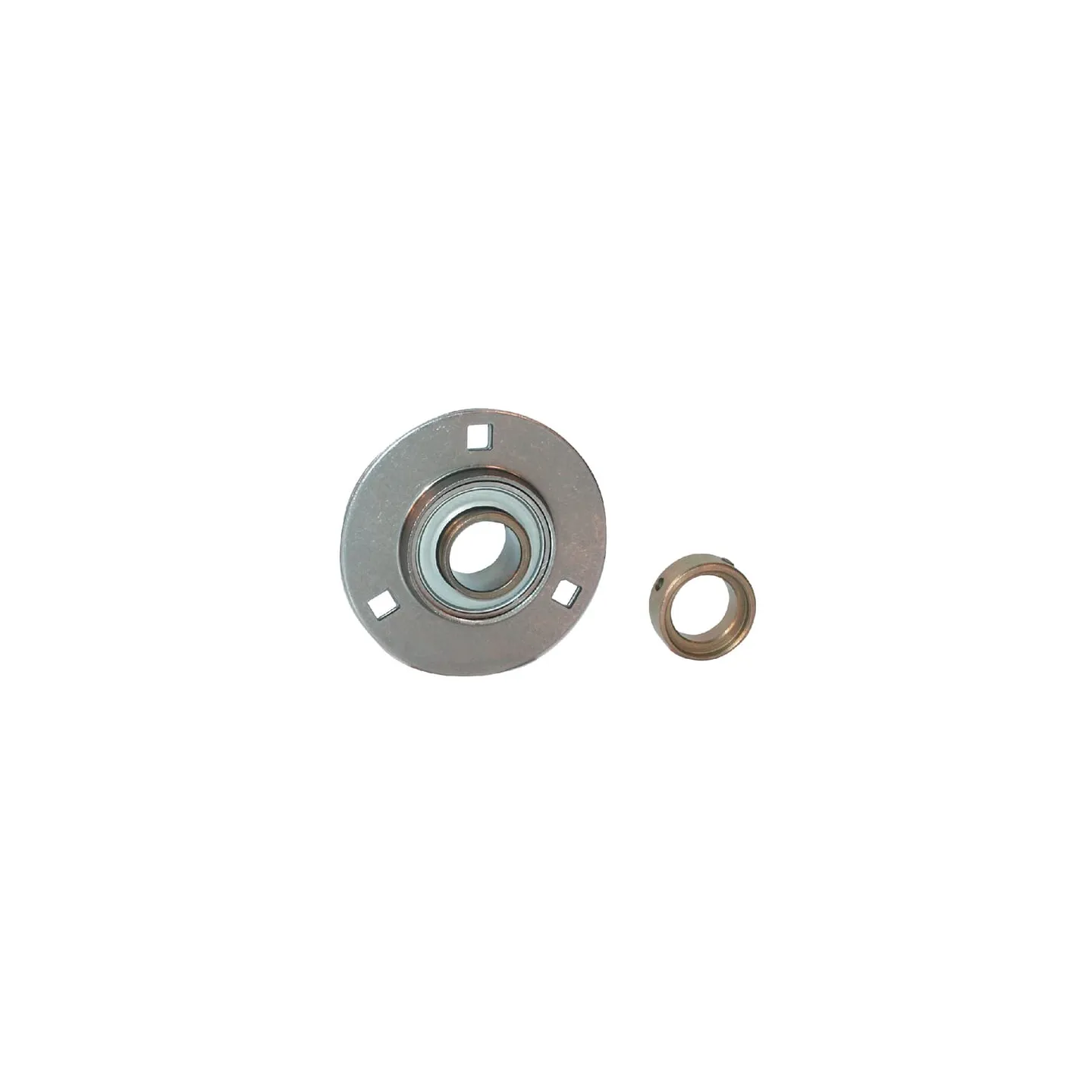

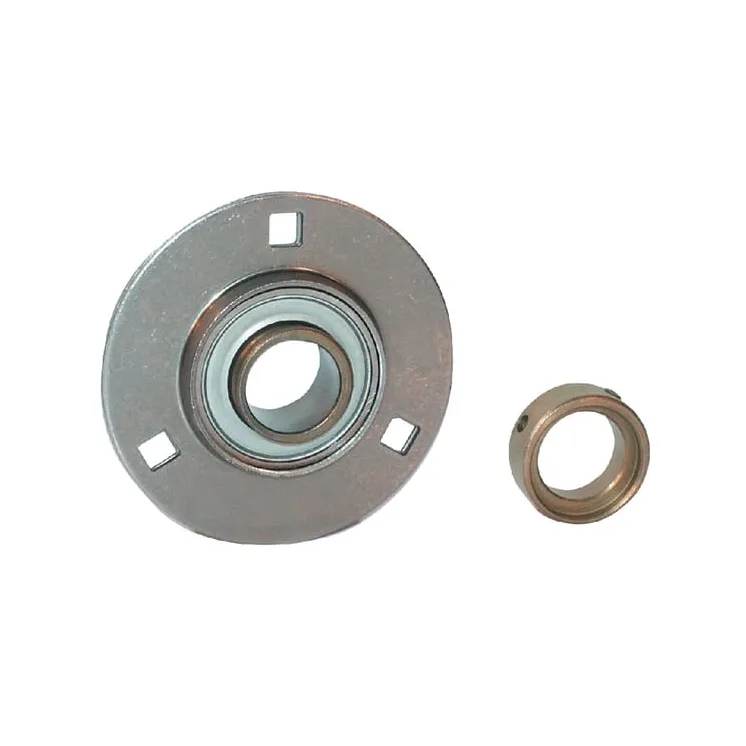

Korpuss RA RA30 SAPF206TR

Name: Korpuss RA RA30 SAPF206TR
Brand: INA/FAG
SKU: RA30
Price: 32.68 EUR
Availability: InStock

Apmaksas iespējas

32,68 €

AR PVN

4-5 Darba dienas

Korpuss RA RA30 INA/FAG SAPF206TR

IR NOLIKTAVĀ

ID: 65040

Apraksts

Part number	RA30
EAN	4012802792720
Unit	Each
Properties	Housing components rust-resistant through Corrotect N coating Inner bearing has one-sided extended inner ring with clamp ring No subsequent lubrication possible Up to and including bearing block RA35: 3 attachment openings RA40 and above: 4 attachment openings
Housing type	Round flange
dBearing inside diameter	30 mm
Consists of	2 halves of housing Clamp bearing Clamp ring
Housing width	112.7 mm
Total height	29.2 mm
Total width	35.8 mm
Housing height	8.7 mm
L*Bearing inner ring width	35.8 mm
Flange thickness	2.5 mm
Locking ring outside diameter	44 mm
Mounting holes/bolts circle diameter	90.5 mm
KMounting holes diameter	10.5 mm
Weight	0.61 kg
Housing material	Steel
Bearing material	Steel
Basic radial load static	11300 N
Basic radial load dynamic	19500 N
Original number equivalent	RA30
