Korpuss RASE RASE75

Name: Korpuss RASE RASE75
Brand: INA/FAG
SKU: RASE75
Price: 307.85 EUR
Availability: BackOrder

Apmaksas iespējas

307,85 €

AR PVN

Pēc pieprasījuma

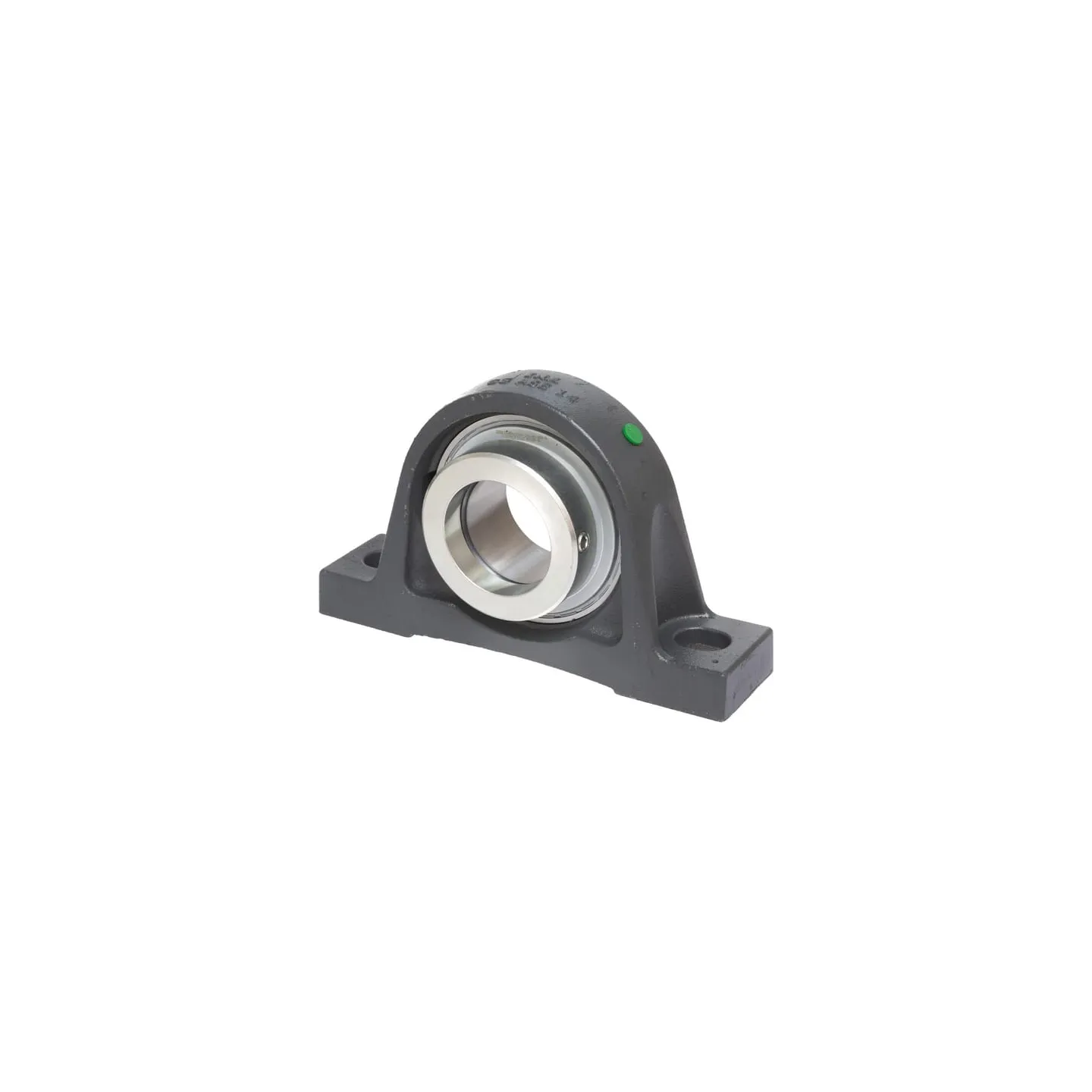

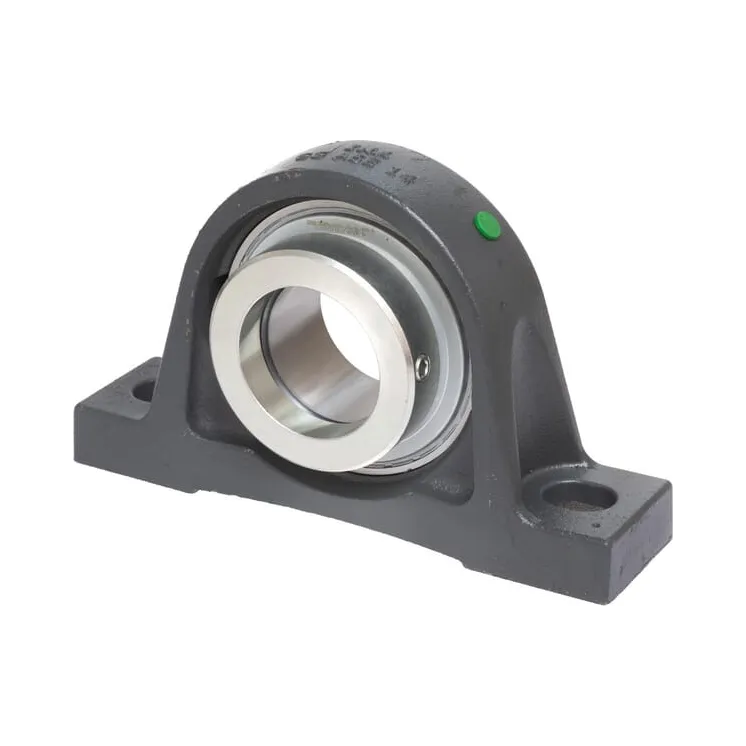

Korpuss RASE RASE75 INA/FAG

Uz pasūtījumu

ID: 65049

Apraksts

Part number	RASE75
EAN	4012802795233
Unit	Each
Properties	Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Technical info	Addition FA125: additional rust protection
Housing type	Pillow block
dBearing inside diameter	75 mm
Consists of	Bearing block Clamp ring
WTotal length	265 mm
BHousing width	66 mm
HTotal height	164 mm
LBearing inner ring width	67 mm
CFlange thickness	22 mm
Locking ring outside diameter	100 mm
AShaft vertical distance	82.5 mm
OBearing balls distance to mounting surface	45.6 mm
Mounting holes distance	210 mm
KMounting holes diameter	20.5 mm
Grease nipple thread diameter	M6
Weight	6.58 kg
Original number equivalent	RASE75
