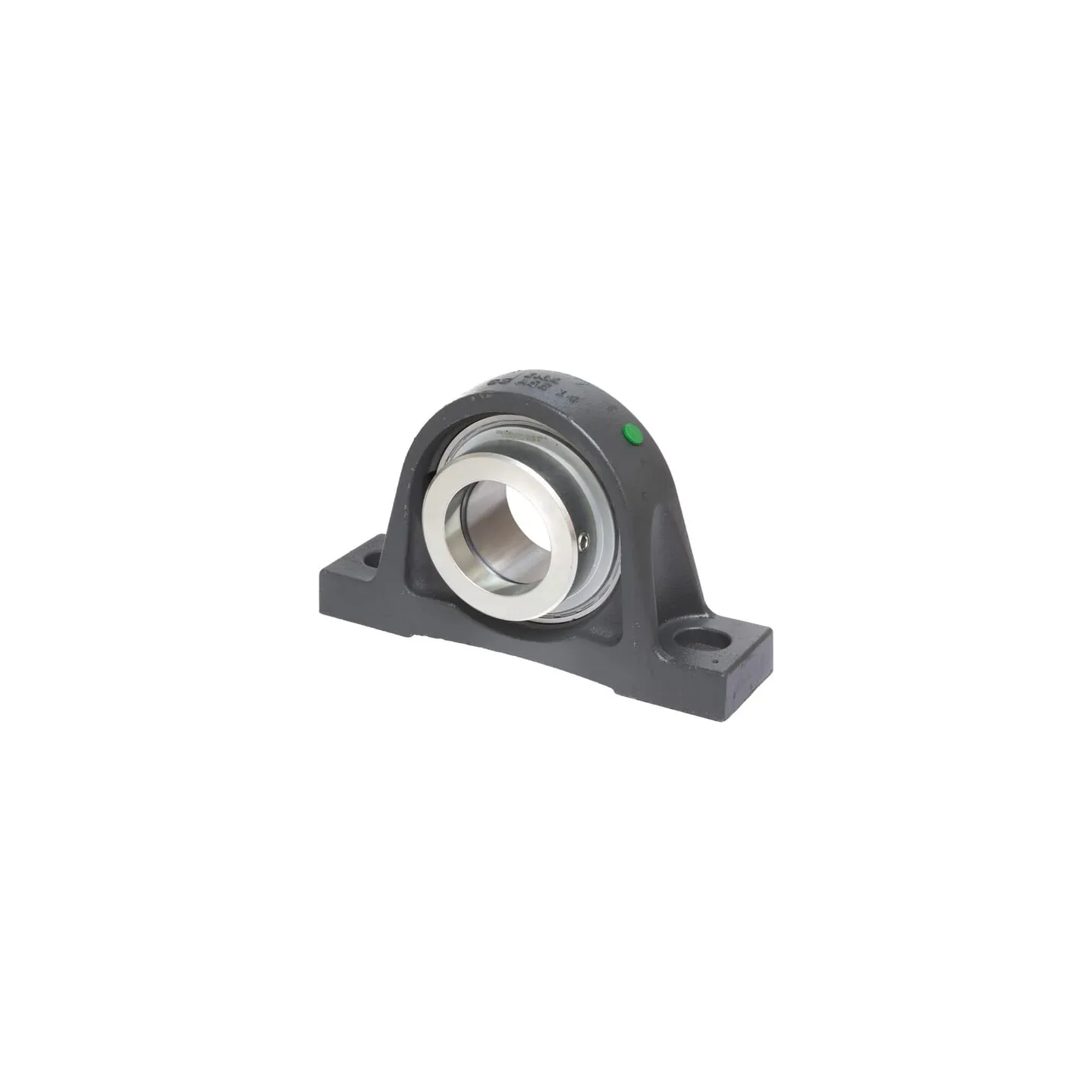

Korpuss RASE RASE50

Name: Korpuss RASE RASE50
Brand: INA/FAG
SKU: RASE50
Price: 85.97 EUR
Availability: InStock

Apmaksas iespējas

85,97 €

AR PVN

4-5 Darba dienas

Korpuss RASE RASE50 INA/FAG

IR NOLIKTAVĀ

ID: 65052

Apraksts

Part number	RASE50
EAN	4054372845079
Unit	Each
Properties	Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Technical info	Addition FA125: additional rust protection
Housing type	Pillow block
dBearing inside diameter	50 mm
Consists of	Bearing block Clamp ring
WTotal length	200 mm
BHousing width	54 mm
HTotal height	115 mm
LBearing inner ring width	62.7 mm
CFlange thickness	18 mm
Locking ring outside diameter	69 mm
AShaft vertical distance	57.2 mm
OBearing balls distance to mounting surface	38.1 mm
Mounting holes distance	158 mm
KMounting holes diameter	16.6 mm
Grease nipple thread diameter	M6
Weight	2.8 kg
Original number equivalent	RASE50-N
