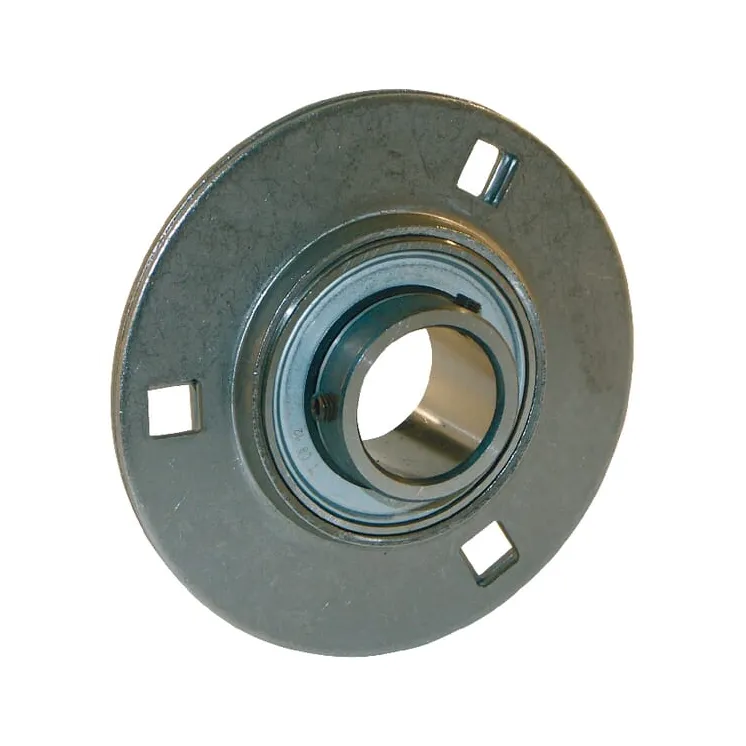

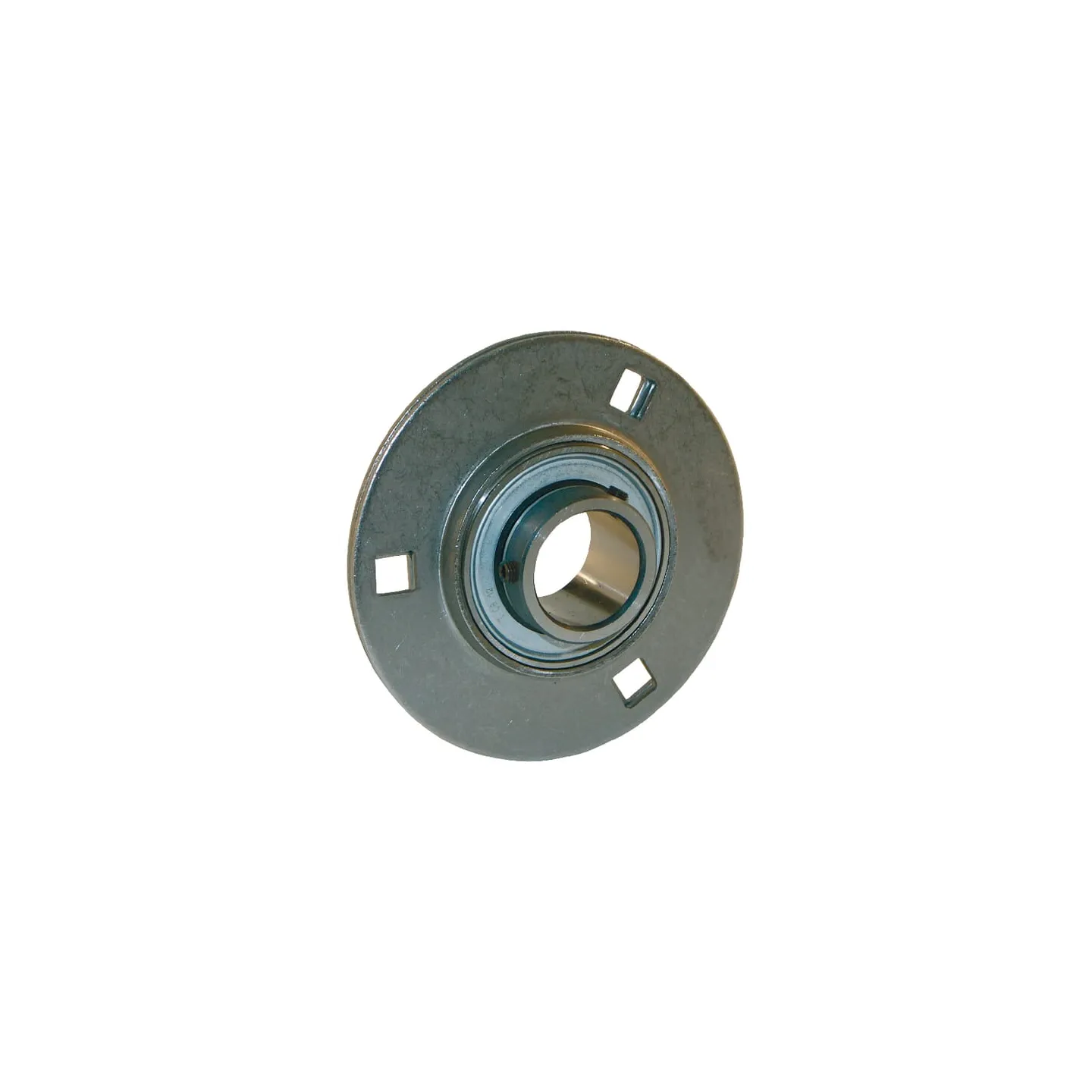

Korpuss RAY RAY35 SBPF207 SBPF207TR

Name: Korpuss RAY RAY35 SBPF207 SBPF207TR
Brand: INA/FAG
SKU: RAY35
Price: 43.32 EUR
Availability: InStock

Apmaksas iespējas

43,32 €

AR PVN

4-5 Darba dienas

Korpuss RAY RAY35 INA/FAG SBPF207 SBPF207TR

IR NOLIKTAVĀ

ID: 65053

Apraksts

Part number	RAY35
EAN	4012802808803
Unit	Each
Properties	Housing components rust-resistant through Corrotect N coating Inner bearing has one-sided extended inner ring with 2 adjusting screws No subsequent lubrication possible Up to and including bearing block RAY35: 3 attachment openings RAY40 and above: 4 attachment openings
Housing type	Round flange
dBearing inside diameter	35 mm
Consists of	2 halves of housing Clamp bearing
Housing width	122 mm
Total height	28 mm
Housing height	9.5 mm
LBearing inner ring width	35 mm
Flange thickness	2.5 mm
Mounting holes/bolts circle diameter	100 mm
Mounting holes diameter	10.5 mm
Weight	0.78 kg
Housing material	Steel
Bearing material	Steel
Basic radial load static	15300 N
Basic radial load dynamic	25500 N
Original number equivalent	RAY35
