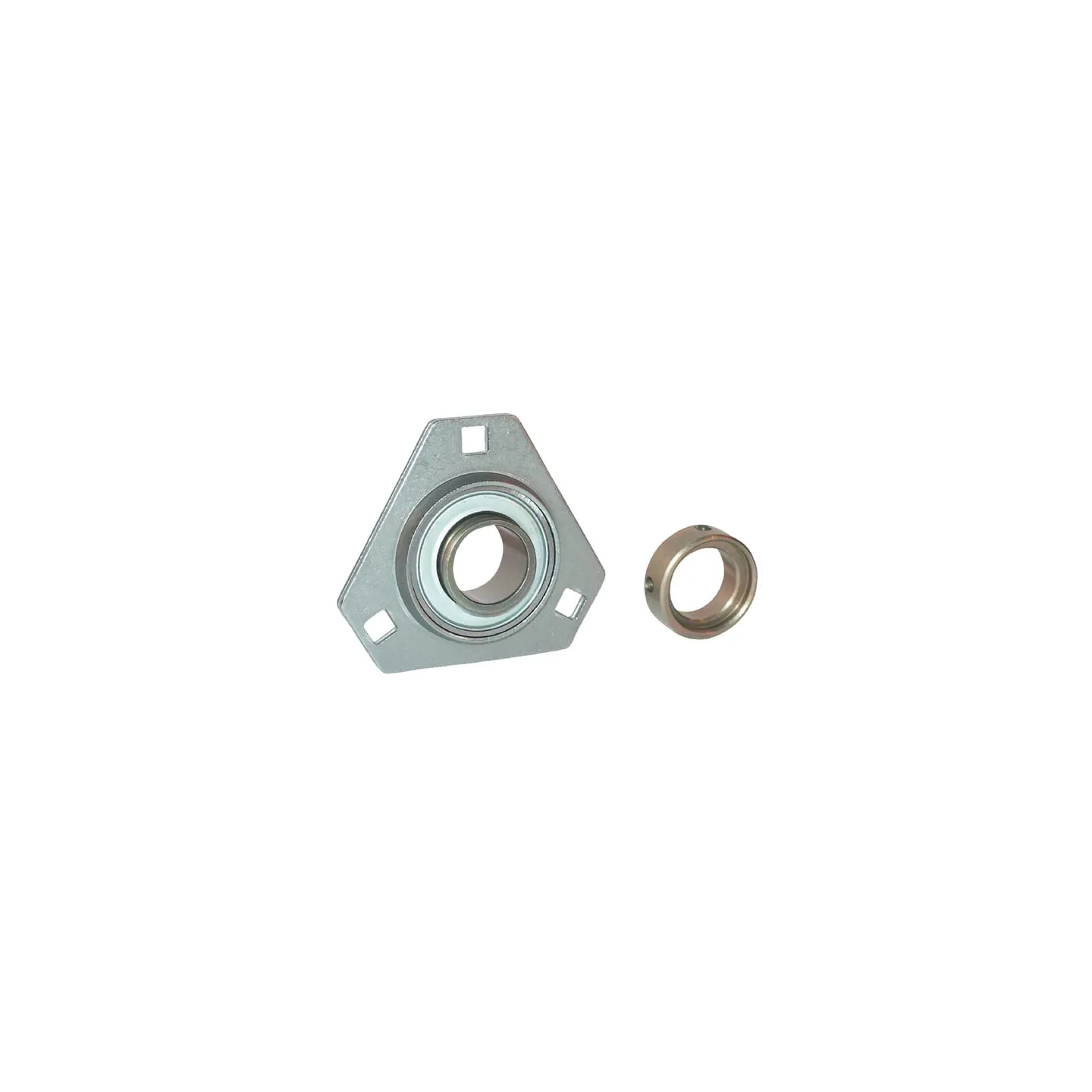

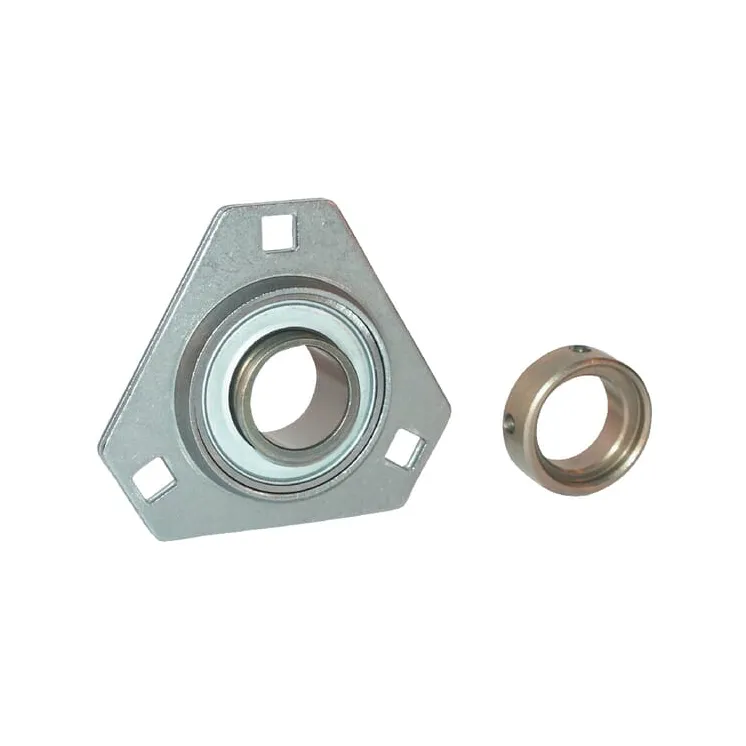

Dzīvojamā vienība RATR RATR20

Name: Dzīvojamā vienība RATR RATR20
Brand: INA/FAG
SKU: RATR20
Price: 31.05 EUR
Availability: InStock

Apmaksas iespējas

31,05 €

AR PVN

4-5 Darba dienas

Dzīvojamā vienība RATR RATR20 INA/FAG

IR NOLIKTAVĀ

ID: 65063

Apraksts

Part number	RATR20
EAN	4012802793161
Unit	Each
Application range	Mobile mechanical engineering Stationary mechanical engineering
Properties	Housing components rust-resistant through Corrotect N coating Inner bearing has one-sided extended inner ring with clamp ring No subsequent lubrication possible
Housing type	Triangular flange
dBearing inside diameter	20 mm
Consists of	2 halves of housing Clamp bearing Clamp ring
Total length	76.2 mm
AHousing width	90 mm
Total height	25.5 mm
L*Bearing inner ring width	31 mm
Locking ring outside diameter	33 mm
BShaft vertical distance	33.3 mm
KMounting holes length	8.7 mm
Grease nipple thread diameter	M6
Weight	0.28 kg
Basic radial load static	6600 N
Basic radial load dynamic	13600 N
Original number equivalent	RATR20
