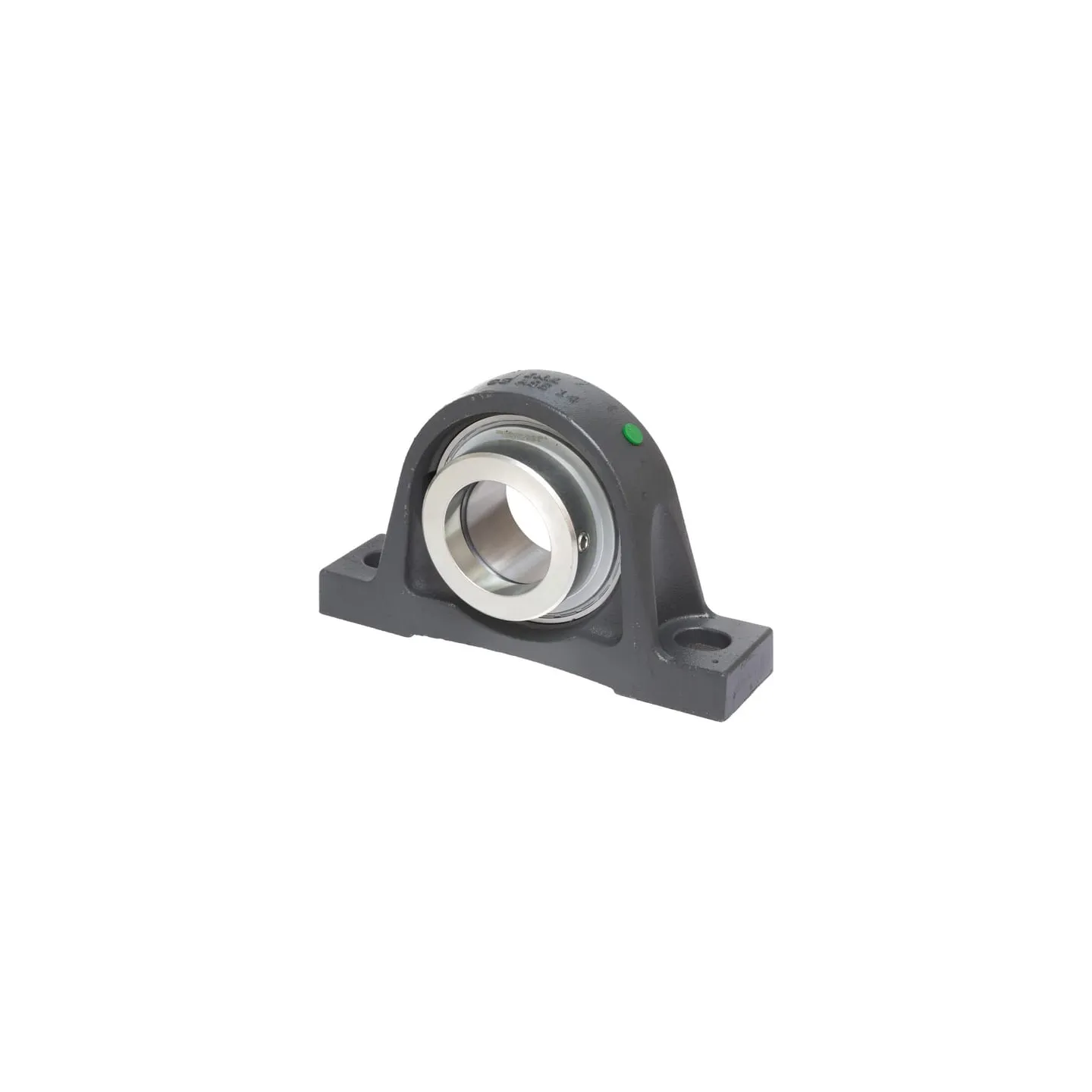

Korpuss RASE RASE30

Name: Korpuss RASE RASE30
Brand: INA/FAG
SKU: RASE30
Price: 58.24 EUR
Availability: InStock

Apmaksas iespējas

58,24 €

AR PVN

4-5 Darba dienas

Korpuss RASE RASE30 INA/FAG

IR NOLIKTAVĀ

ID: 65064

Apraksts

Part number	RASE30
EAN	4054372493546
Unit	Each
Properties	Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Technical info	Addition FA125: additional rust protection
Housing type	Pillow block
dBearing inside diameter	30 mm
Consists of	Bearing block Clamp ring
WTotal length	158 mm
BHousing width	40 mm
HTotal height	82 mm
LBearing inner ring width	48.4 mm
CFlange thickness	13 mm
Locking ring outside diameter	44 mm
AShaft vertical distance	42.9 mm
OBearing balls distance to mounting surface	30.1 mm
Mounting holes distance	118 mm
KMounting holes diameter	12.6 mm
Grease nipple thread diameter	M6
Weight	1.2 kg
Original number equivalent	RASE30-N
