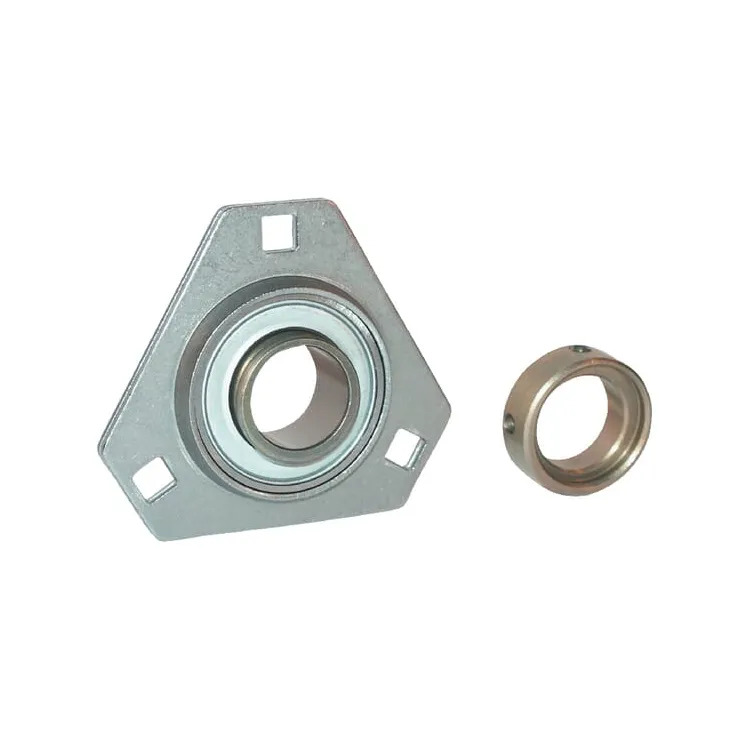

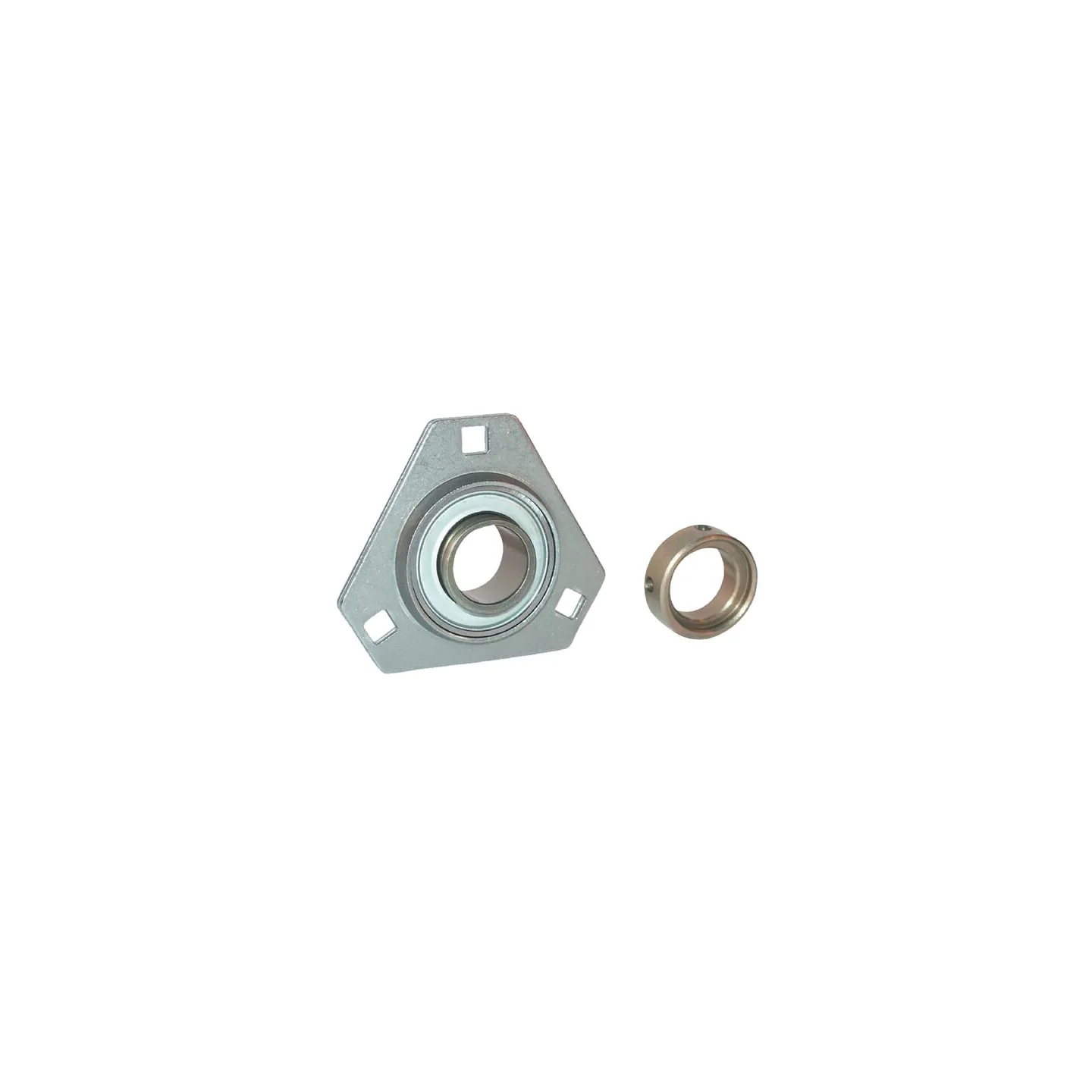

Dzīvojamā vienība RATR RATR30

Name: Dzīvojamā vienība RATR RATR30
Brand: INA/FAG
SKU: RATR30
Price: 39.66 EUR
Availability: InStock

Apmaksas iespējas

39,66 €

AR PVN

4-5 Darba dienas

Dzīvojamā vienība RATR RATR30 INA/FAG

IR NOLIKTAVĀ

ID: 65072

Apraksts

Part number	RATR30
EAN	4012802793147
Unit	Each
Application range	Mobile mechanical engineering Stationary mechanical engineering
Properties	Housing components rust-resistant through Corrotect N coating Inner bearing has one-sided extended inner ring with clamp ring No subsequent lubrication possible
Housing type	Triangular flange
dBearing inside diameter	30 mm
Consists of	2 halves of housing Clamp bearing Clamp ring
Total length	93 mm
AHousing width	112.7 mm
Total height	29.2 mm
L*Bearing inner ring width	35.7 mm
Locking ring outside diameter	44 mm
BShaft vertical distance	38.1 mm
KMounting holes length	10.5 mm
Grease nipple thread diameter	M6
Weight	0.5 kg
Basic radial load static	11300 N
Basic radial load dynamic	19500 N
Original number equivalent	RATR30
