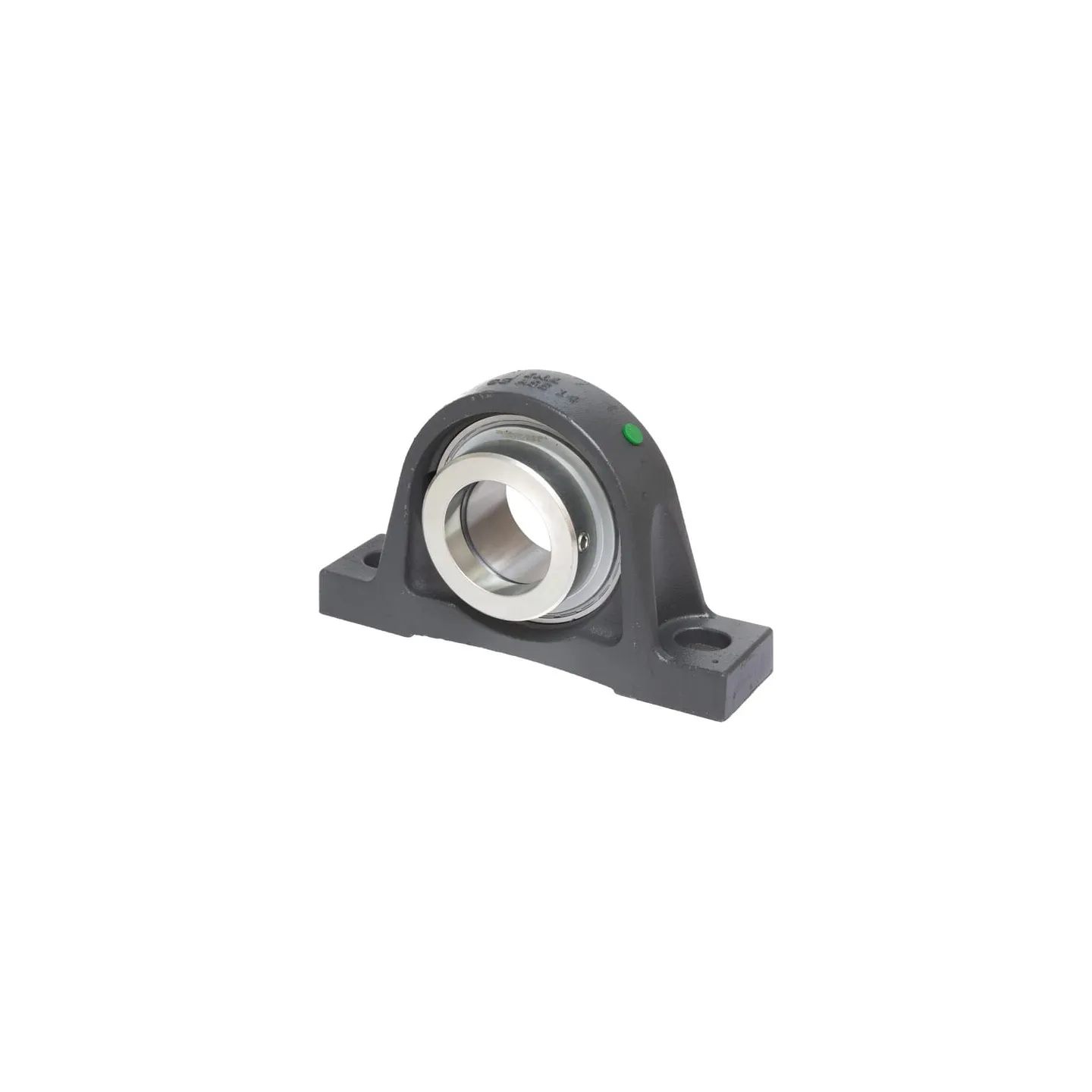

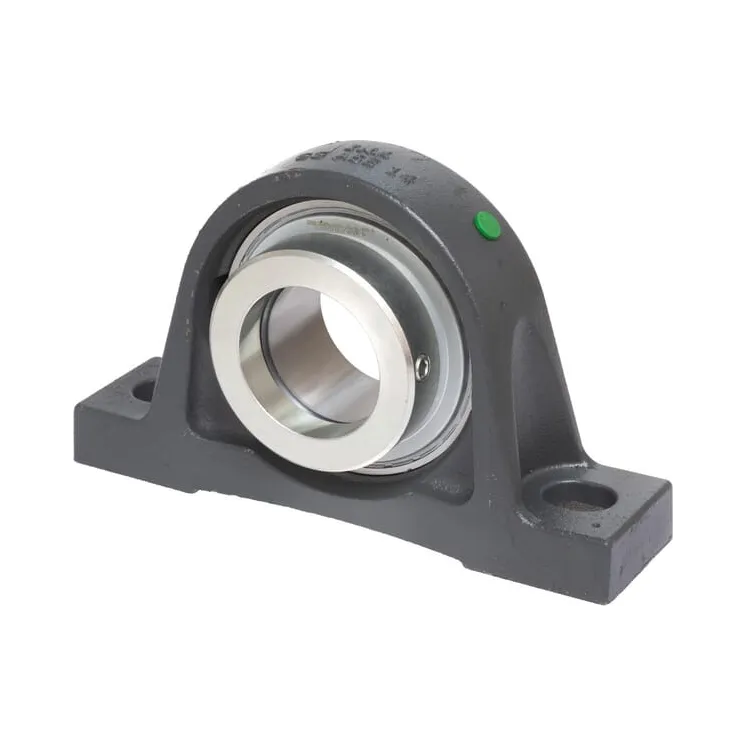

Korpuss RASE RASE80

Name: Korpuss RASE RASE80
Brand: INA/FAG
SKU: RASE80
Price: 363.36 EUR
Availability: InStock

Apmaksas iespējas

363,36 €

AR PVN

4-5 Darba dienas

Korpuss RASE RASE80 INA/FAG

IR NOLIKTAVĀ

ID: 65075

Apraksts

Part number	RASE80
EAN	4054372849053
Unit	Each
Properties	Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Technical info	Addition FA125: additional rust protection
Housing type	Pillow block
dBearing inside diameter	80 mm
Consists of	Bearing block Clamp ring
WTotal length	290 mm
BHousing width	78 mm
HTotal height	175 mm
LBearing inner ring width	70.7 mm
CFlange thickness	25 mm
Locking ring outside diameter	108 mm
AShaft vertical distance	89 mm
OBearing balls distance to mounting surface	47.6 mm
Mounting holes distance	232 mm
KMounting holes diameter	24.5 mm
Grease nipple thread diameter	M6
Weight	8.49 kg
Original number equivalent	RASE80
