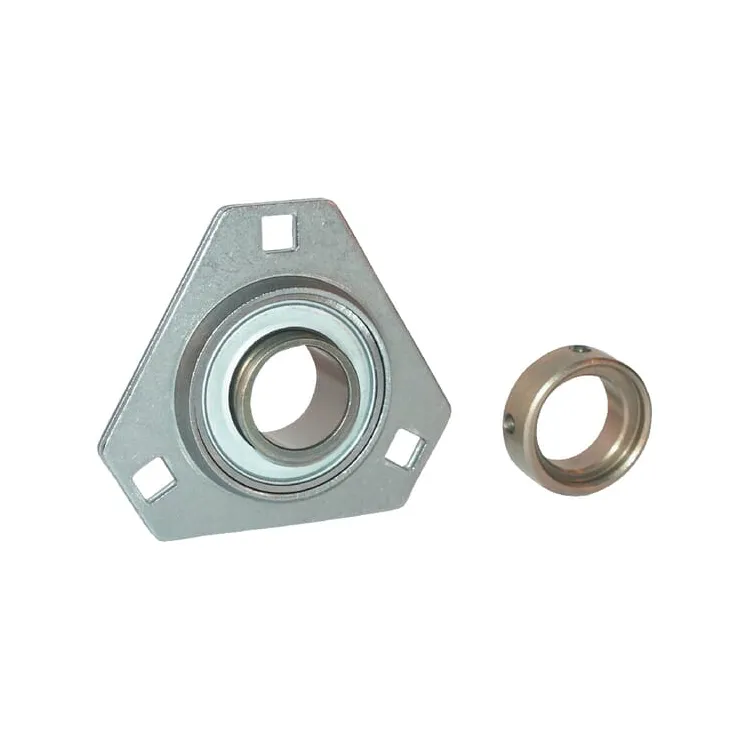

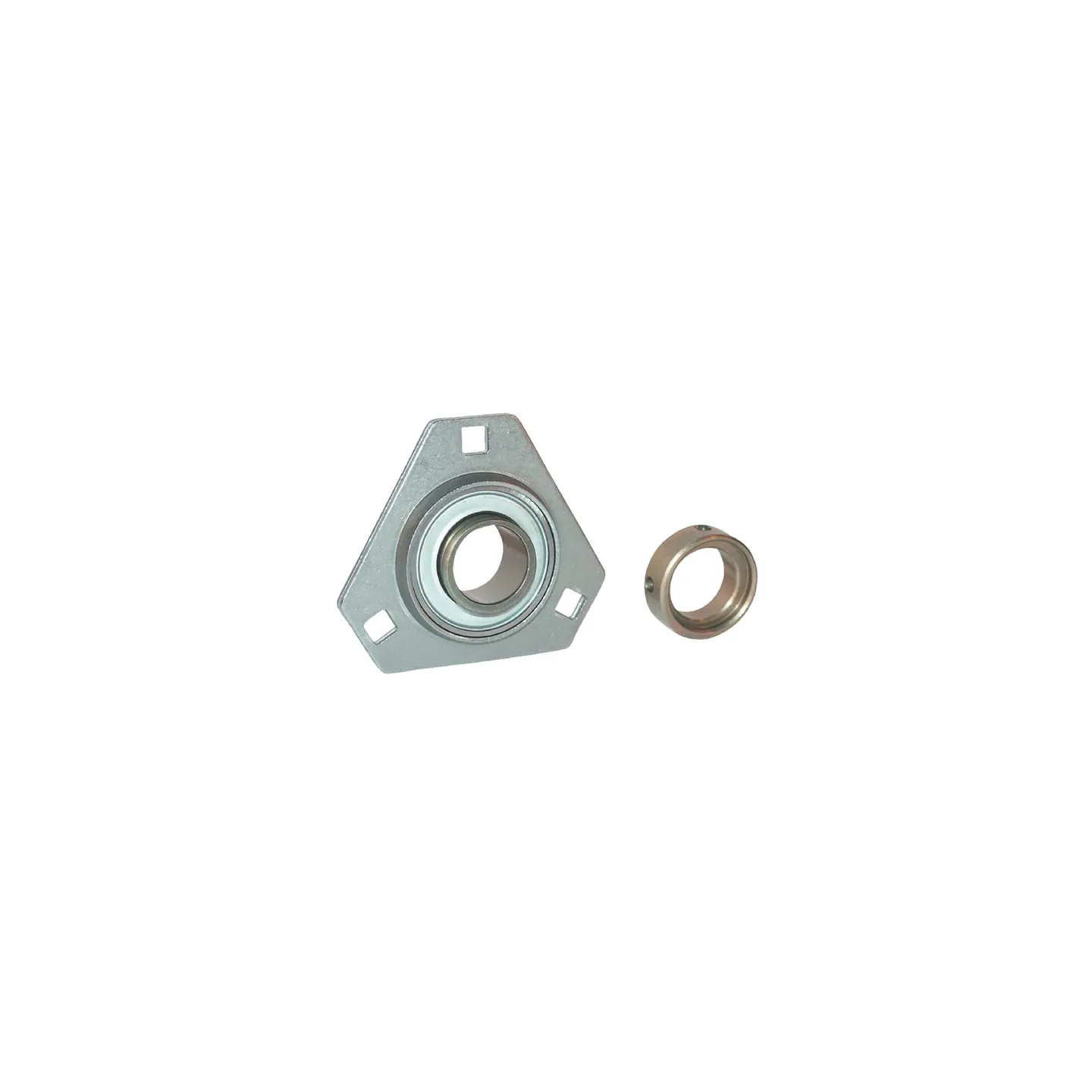

RATR RATR35

Name: RATR RATR35
Brand: INA/FAG
SKU: RATR35
Price: 51.52 EUR
Availability: InStock

Apmaksas iespējas

51,52 €

AR PVN

4-5 Darba dienas

RATR RATR35 INA/FAG

IR NOLIKTAVĀ

ID: 65080

Apraksts

Part number	RATR35
EAN	4012802823561
Unit	Each
Application range	Mobile mechanical engineering Stationary mechanical engineering
Properties	Housing components rust-resistant through Corrotect N coating Inner bearing has one-sided extended inner ring with clamp ring No subsequent lubrication possible
Housing type	Triangular flange
dBearing inside diameter	35 mm
Consists of	2 halves of housing Clamp bearing Clamp ring
Total length	105.6 mm
AHousing width	122 mm
Total height	31.9 mm
L*Bearing inner ring width	38.9 mm
Locking ring outside diameter	51 mm
BShaft vertical distance	44.5 mm
KMounting holes length	10.5 mm
Grease nipple thread diameter	M6
Weight	0.63 kg
Basic radial load static	15300 N
Basic radial load dynamic	25500 N
Original number equivalent	RATR35
