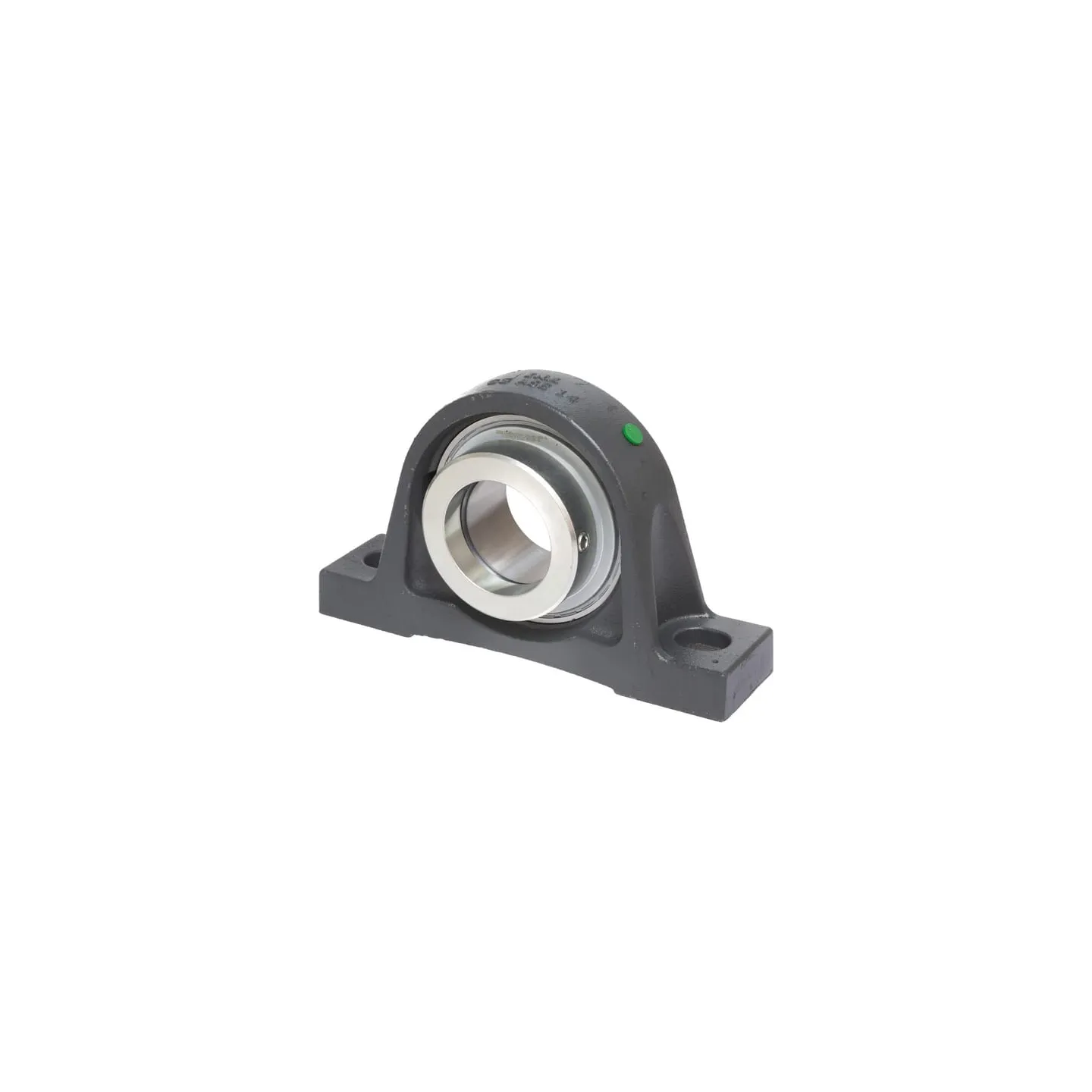

Korpuss RASE RASE35

Name: Korpuss RASE RASE35
Brand: INA/FAG
SKU: RASE35
Price: 63.88 EUR
Availability: InStock

Apmaksas iespējas

63,88 €

AR PVN

4-5 Darba dienas

Korpuss RASE RASE35 INA/FAG

IR NOLIKTAVĀ

ID: 65087

Apraksts

Part number	RASE35
EAN	4054372514364
Unit	Each
Properties	Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Technical info	Addition FA125: additional rust protection
Housing type	Pillow block
dBearing inside diameter	35 mm
Consists of	Bearing block Clamp ring
WTotal length	163 mm
BHousing width	45 mm
HTotal height	93 mm
LBearing inner ring width	51.1 mm
CFlange thickness	13 mm
Locking ring outside diameter	51 mm
AShaft vertical distance	47.6 mm
OBearing balls distance to mounting surface	32.3 mm
Mounting holes distance	126 mm
KMounting holes diameter	12.6 mm
Grease nipple thread diameter	M6
Weight	1.65 kg
Original number equivalent	RASE35-N
