Korpuss RASE RASE70

Name: Korpuss RASE RASE70
Brand: INA/FAG
SKU: RASE70
Price: 264.76 EUR
Availability: InStock

Apmaksas iespējas

264,76 €

AR PVN

4-5 Darba dienas

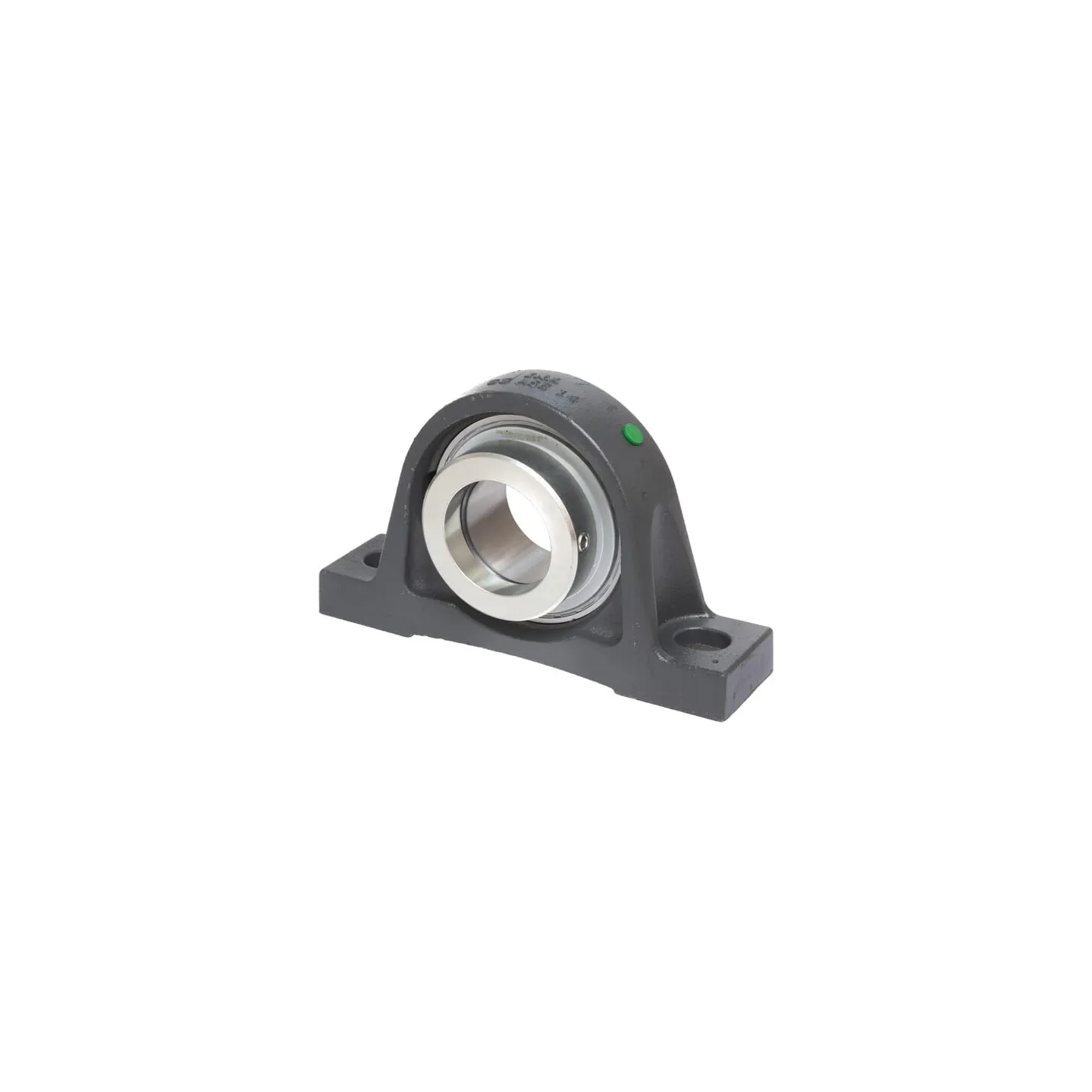

Korpuss RASE RASE70 INA/FAG

IR NOLIKTAVĀ

ID: 65090

Apraksts

Part number	RASE70
EAN	4054372849046
Unit	Each
Properties	Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Technical info	Addition FA125: additional rust protection
Housing type	Pillow block
dBearing inside diameter	70 mm
Consists of	Bearing block Clamp ring
WTotal length	260 mm
BHousing width	65 mm
HTotal height	156 mm
LBearing inner ring width	66 mm
CFlange thickness	15 mm
Locking ring outside diameter	96 mm
AShaft vertical distance	79.4 mm
OBearing balls distance to mounting surface	44.6 mm
Mounting holes distance	203 mm
KMounting holes diameter	20.5 mm
Grease nipple thread diameter	M6
Weight	6.06 kg
Original number equivalent	RASE70
