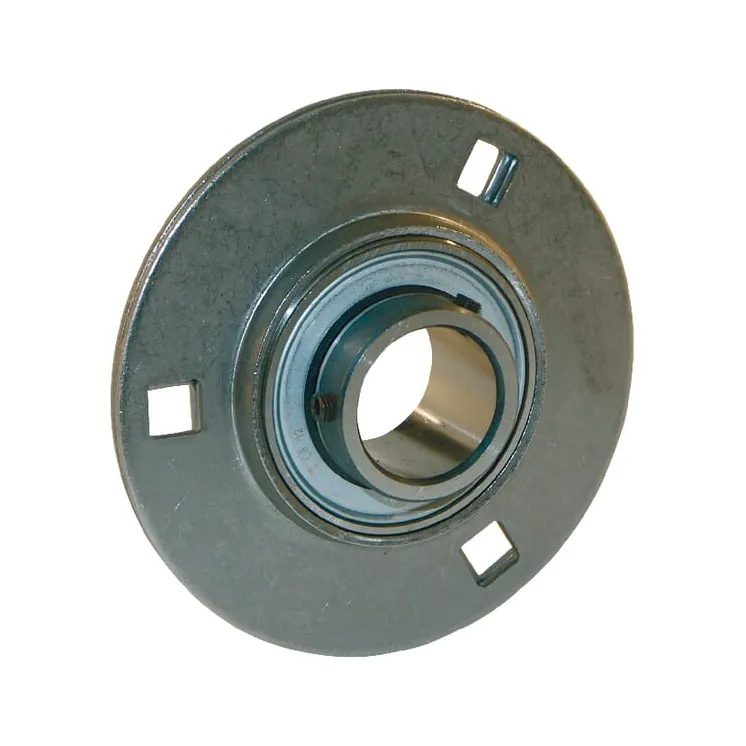

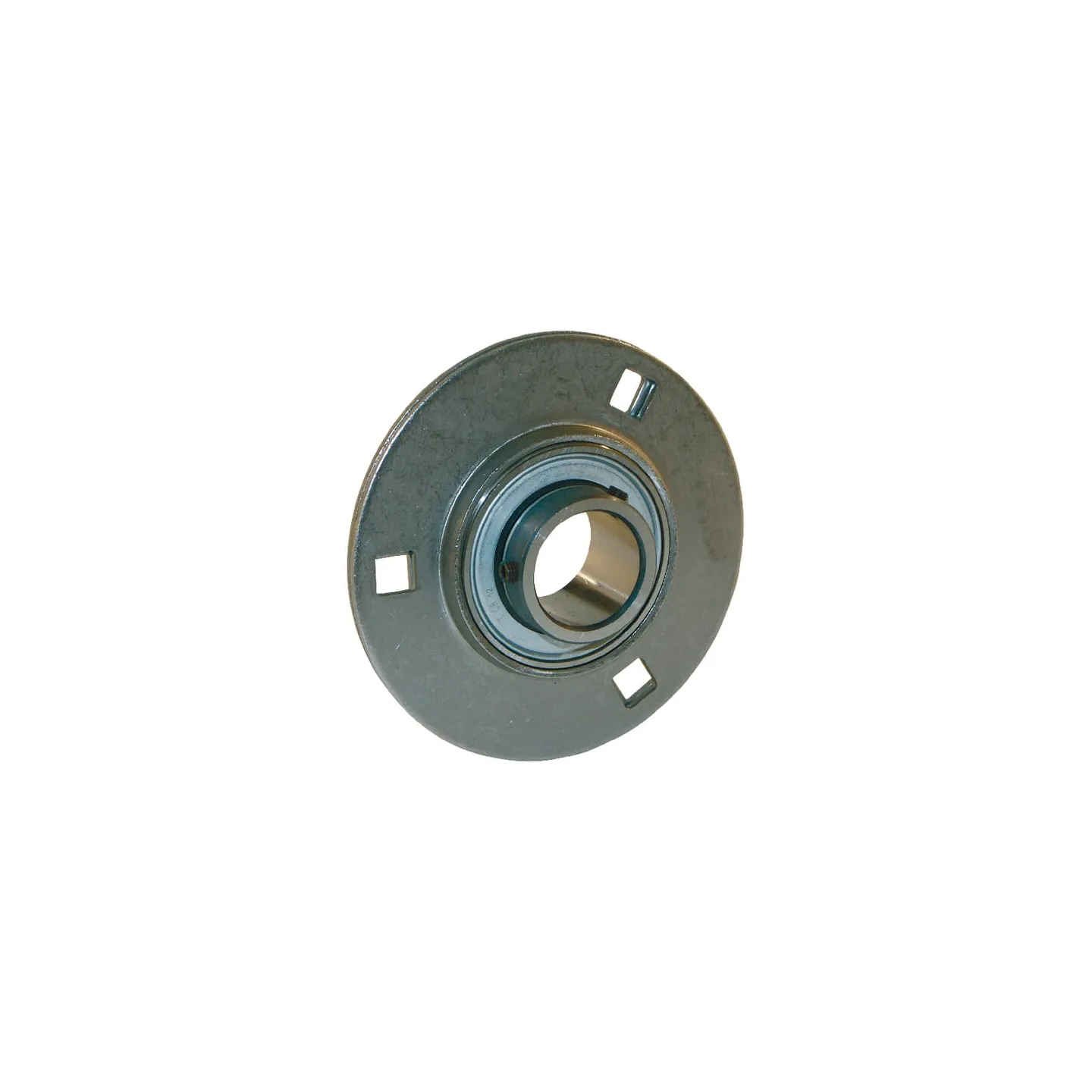

Korpuss RAY RAY20 SBPF204

Name: Korpuss RAY RAY20 SBPF204
Brand: INA/FAG
SKU: RAY20
Price: 27.31 EUR
Availability: InStock

Apmaksas iespējas

27,31 €

AR PVN

4-5 Darba dienas

Korpuss RAY RAY20 INA/FAG SBPF204

IR NOLIKTAVĀ

ID: 65092

Apraksts

Part number	RAY20
EAN	4012802788891
Unit	Each
Properties	Housing components rust-resistant through Corrotect N coating Inner bearing has one-sided extended inner ring with 2 adjusting screws No subsequent lubrication possible Up to and including bearing block RAY35: 3 attachment openings RAY40 and above: 4 attachment openings
Housing type	Round flange
dBearing inside diameter	20 mm
Consists of	2 halves of housing Clamp bearing
Outside diameter	90.5 mm
Total height	20 mm
Total width	20 mm
Housing height	8 mm
LBearing inner ring width	25 mm
Flange thickness	2 mm
Mounting holes/bolts circle diameter	71.5 mm
Mounting holes diameter	8.7 mm
Weight	0.3 kg
Housing material	Steel
Bearing material	Steel
Basic radial load static	6600 N
Basic radial load dynamic	13600 N
Original number equivalent	RAY20
