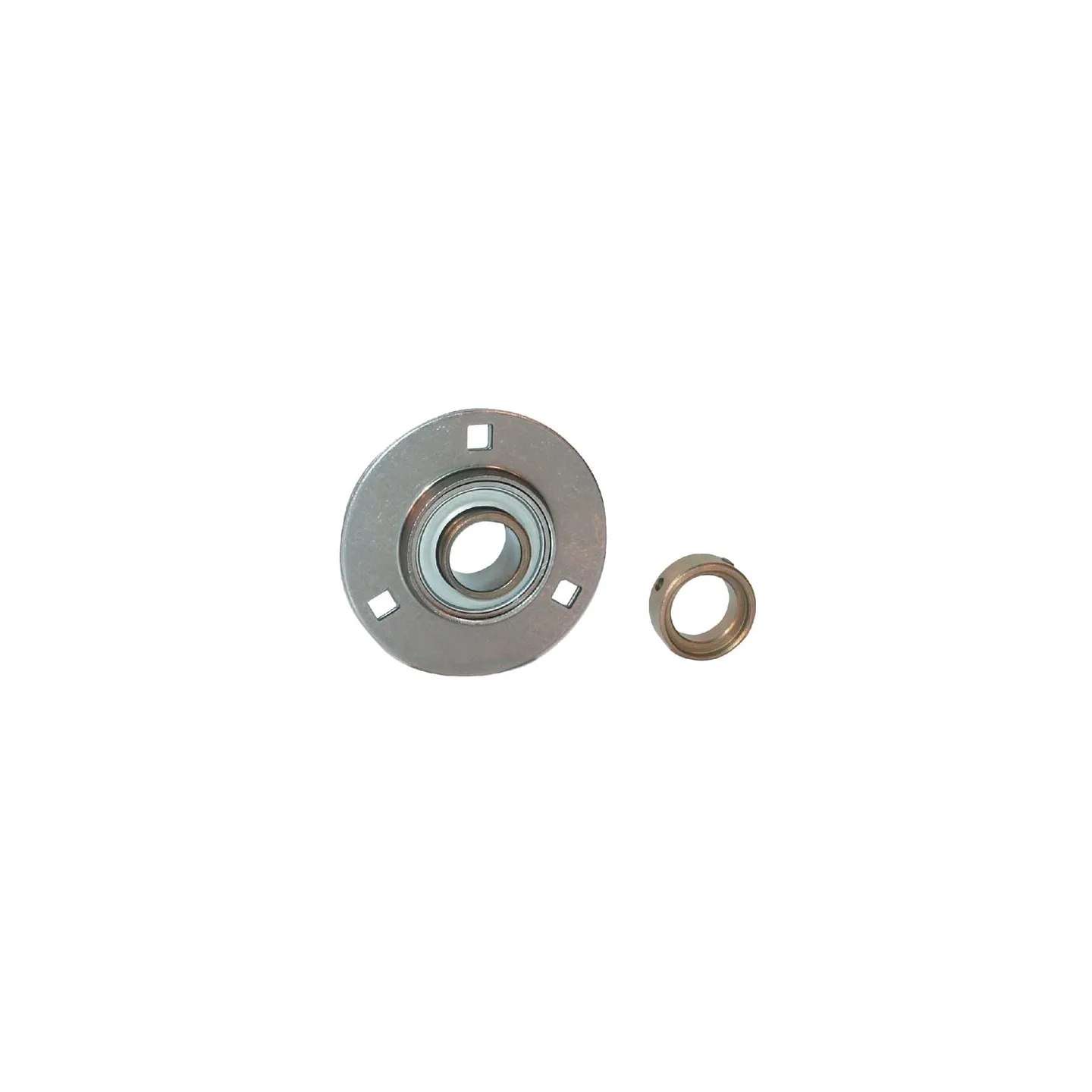

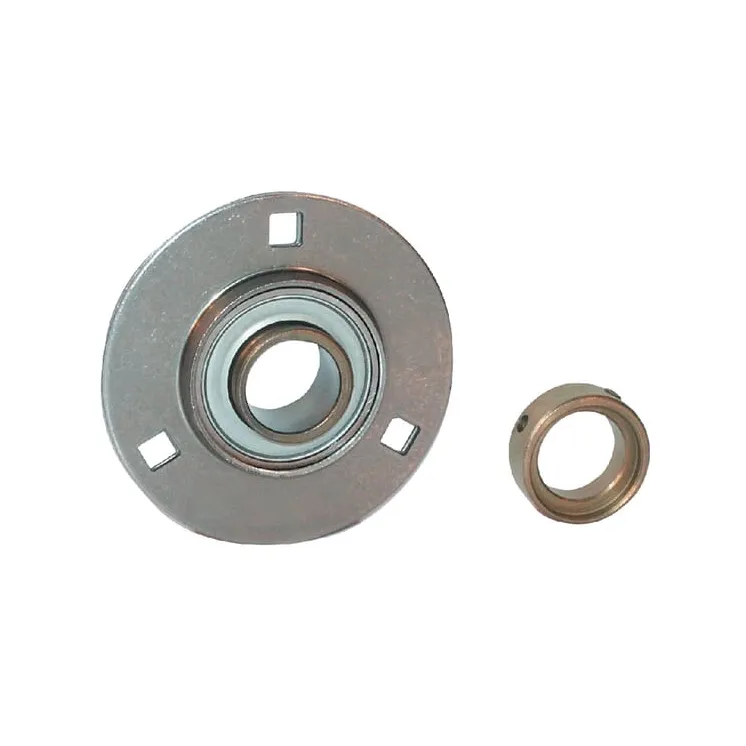

Korpuss RA RA35 SAPF207TR

Name: Korpuss RA RA35 SAPF207TR
Brand: INA/FAG
SKU: RA35
Price: 44.26 EUR
Availability: InStock

Apmaksas iespējas

44,26 €

AR PVN

4-5 Darba dienas

Korpuss RA RA35 INA/FAG SAPF207TR

IR NOLIKTAVĀ

ID: 65094

Apraksts

Part number	RA35
EAN	4012802792669
Unit	Each
Properties	Housing components rust-resistant through Corrotect N coating Inner bearing has one-sided extended inner ring with clamp ring No subsequent lubrication possible Up to and including bearing block RA35: 3 attachment openings RA40 and above: 4 attachment openings
Housing type	Round flange
dBearing inside diameter	35 mm
Consists of	2 halves of housing Clamp bearing Clamp ring
Housing width	122 mm
Total height	31.9 mm
Total width	39 mm
Housing height	9.5 mm
L*Bearing inner ring width	39 mm
Flange thickness	2.5 mm
Locking ring outside diameter	51 mm
Mounting holes/bolts circle diameter	100 mm
KMounting holes diameter	10.5 mm
Weight	0.85 kg
Housing material	Steel
Bearing material	Steel
Basic radial load static	15300 N
Basic radial load dynamic	25500 N
Original number equivalent	RA35
