Korpuss RA RA20 SAPF204TR

Name: Korpuss RA RA20 SAPF204TR
Brand: INA/FAG
SKU: RA20
Price: 31.05 EUR
Availability: InStock

Apmaksas iespējas

31,05 €

AR PVN

4-5 Darba dienas

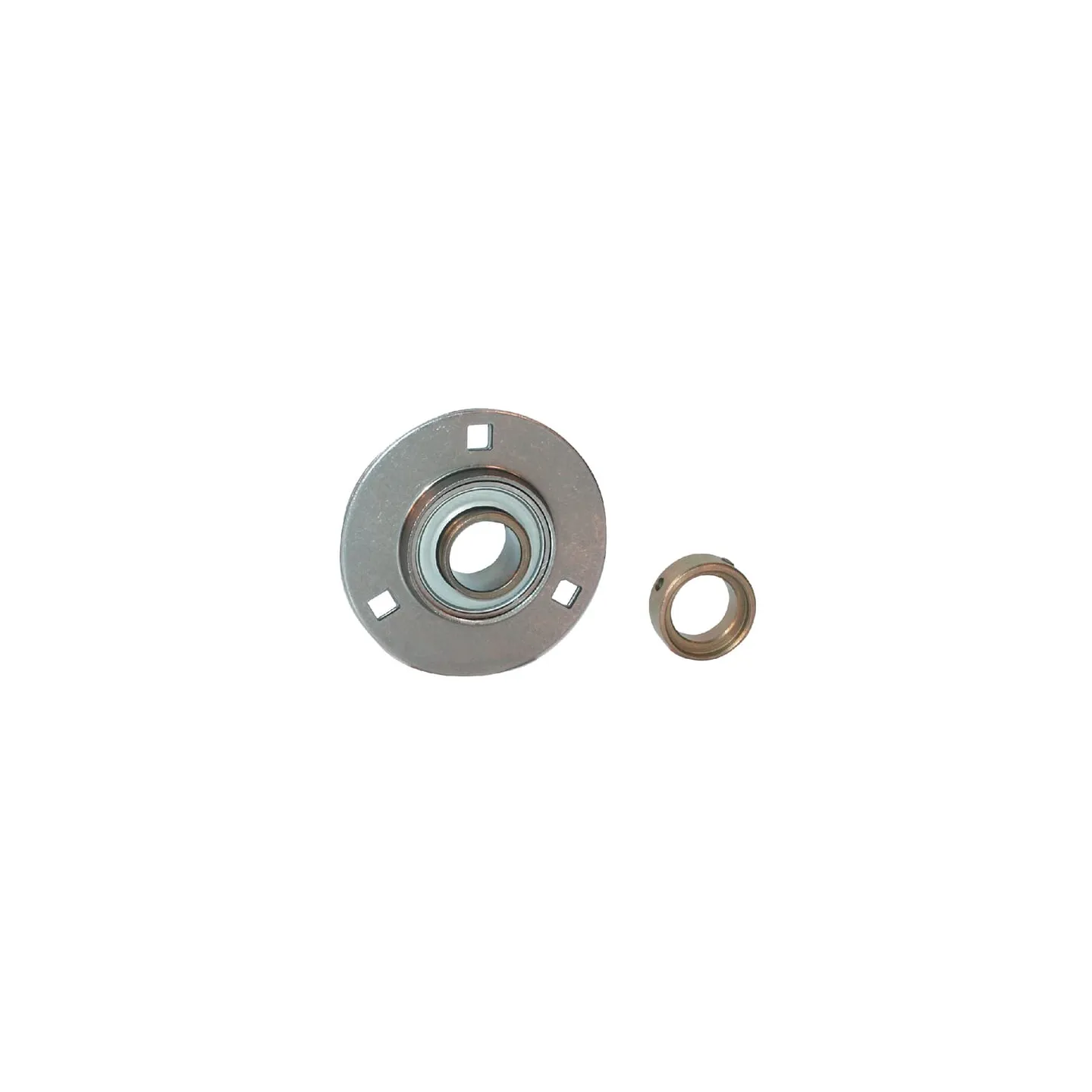

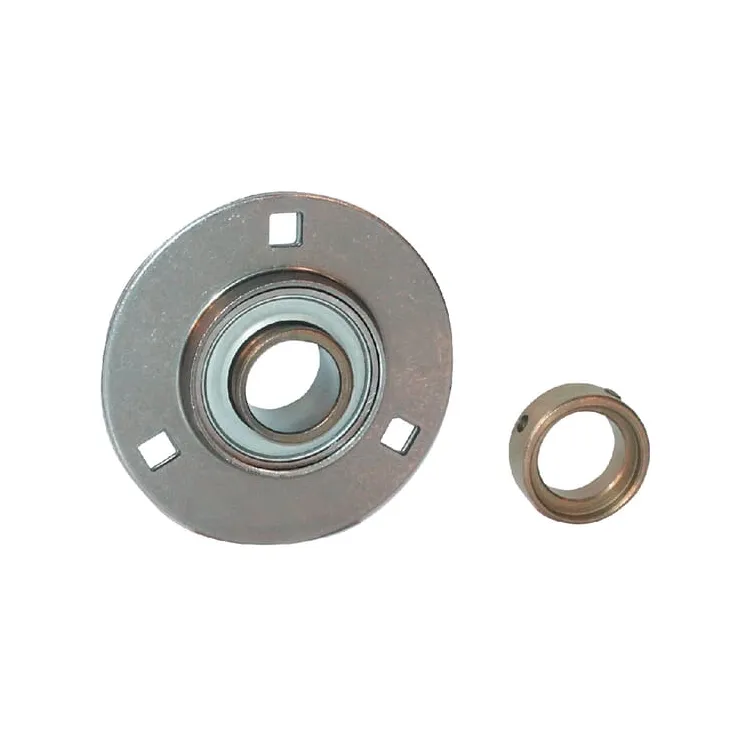

Korpuss RA RA20 INA/FAG SAPF204TR

IR NOLIKTAVĀ

ID: 65098

Apraksts

Part number	RA20
EAN	4012802792768
Unit	Each
Properties	Housing components rust-resistant through Corrotect N coating Inner bearing has one-sided extended inner ring with clamp ring No subsequent lubrication possible Up to and including bearing block RA35: 3 attachment openings RA40 and above: 4 attachment openings
Housing type	Round flange
dBearing inside diameter	20 mm
Consists of	2 halves of housing Clamp bearing Clamp ring
Housing width	90.5 mm
Total height	25.5 mm
Total width	31 mm
Housing height	8 mm
L*Bearing inner ring width	31 mm
Flange thickness	2 mm
Locking ring outside diameter	33 mm
Mounting holes/bolts circle diameter	71.5 mm
KMounting holes diameter	8.7 mm
Weight	0.32 kg
Housing material	Steel
Bearing material	Steel
Basic radial load static	6600 N
Basic radial load dynamic	12800 N
Original number equivalent	RA20
