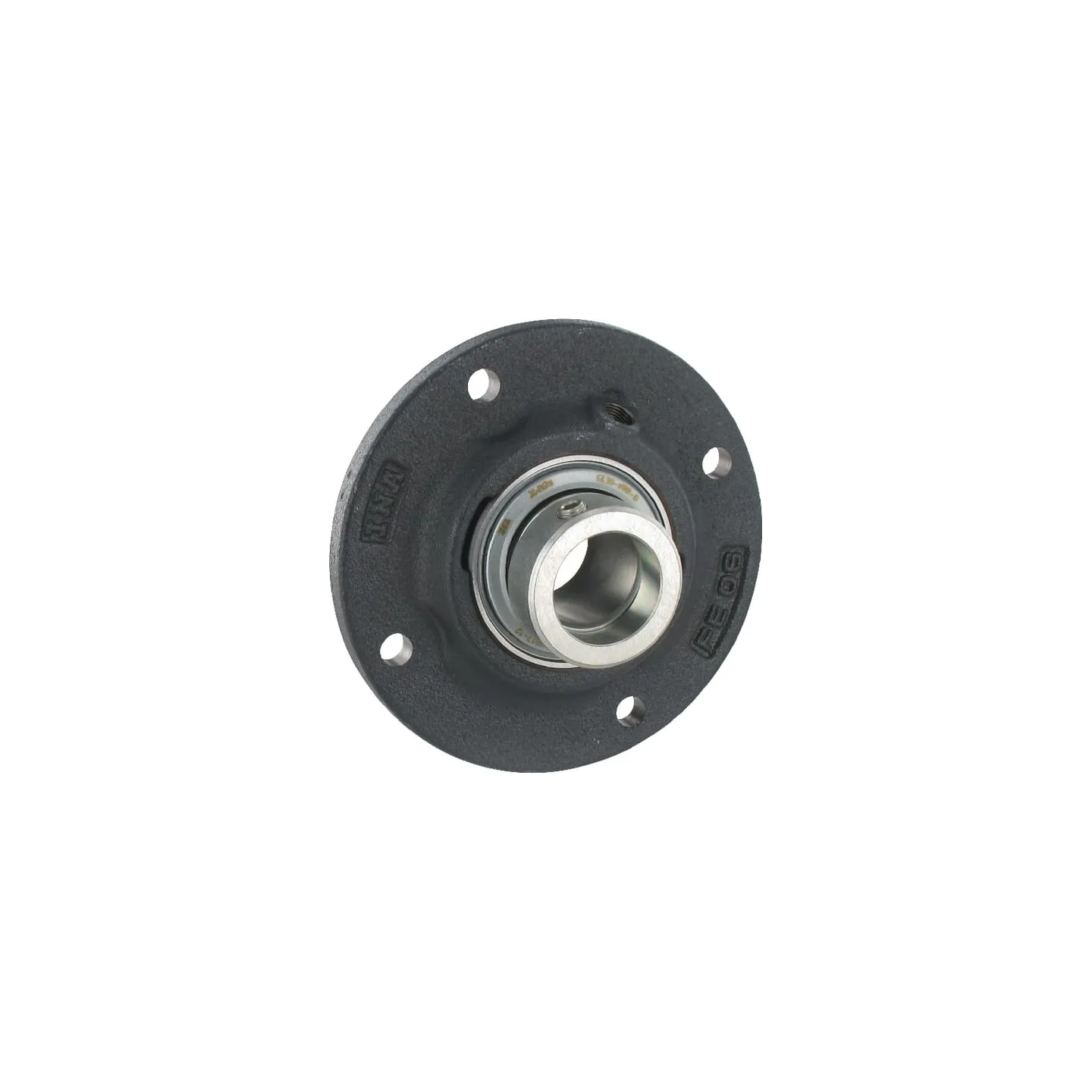

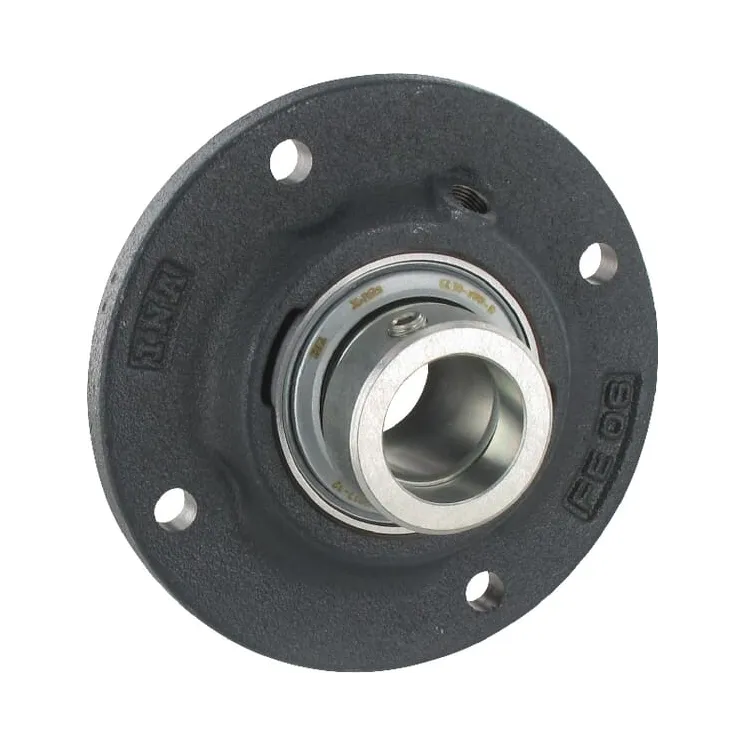

Gultņa korpuss RFE30

Name: Gultņa korpuss RFE30
Brand: INA/FAG
SKU: RFE30
Price: 81.18 EUR
Availability: InStock

Apmaksas iespējas

81,18 €

AR PVN

4-5 Darba dienas

Gultņa korpuss RFE30 INA/FAG

IR NOLIKTAVĀ

ID: 65101

Apraksts

Part number	RFE30
EAN	4012802793727
Unit	Each
Details	Bearing housing has an adjustable edge
Properties	Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Benefits	Precise axis alignment possible Fixing points are relieved
Housing type	Round flange
dBearing inside diameter	30 mm
d3Outside diameter	127 mm
Housing width	127 mm
Total height	40.6 mm
Total width	48.5 mm
Housing height	22.5 mm
Bearing inner ring width	48.5 mm
Flange thickness	9.5 mm
Locking ring outside diameter	44 mm
A1Mounting holes diameter	9 mm
Grease nipple thread diameter	M6
Fitting edge diameter	85 mm
Weight	1.1 kg
Bearing material	Steel
Basic radial load static	11300 N
Basic radial load dynamic	19500 N
Original number equivalent	RFE30-XL
