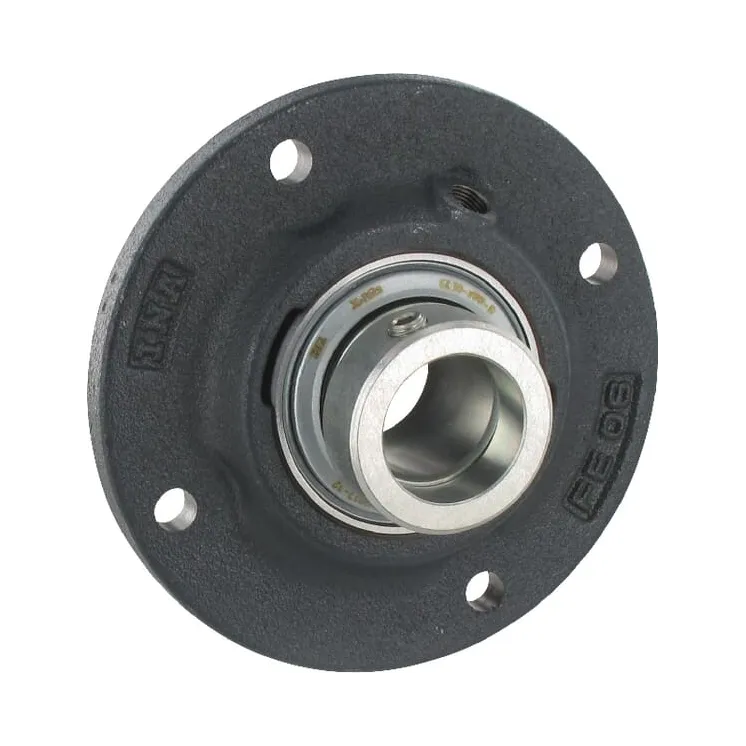

Gultņa korpuss RFE50N

Name: Gultņa korpuss RFE50N
Brand: INA/FAG
SKU: RFE50N
Price: 131.48 EUR
Availability: InStock

Apmaksas iespējas

131,48 €

AR PVN

4-5 Darba dienas

Gultņa korpuss RFE50N INA/FAG

IR NOLIKTAVĀ

ID: 65103

Apraksts

Part number	RFE50N
EAN	4054372959776
Unit	Each
Details	Bearing housing has an adjustable edge
Properties	Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Benefits	Precise axis alignment possible Fixing points are relieved
Housing type	Round flange
dBearing inside diameter	50 mm
Housing width	165 mm
Total height	50.6 mm
Total width	62.8 mm
Housing height	27.5 mm
Bearing inner ring width	62.8 mm
Flange thickness	13 mm
Locking ring outside diameter	69 mm
A1Mounting holes diameter	14 mm
Grease nipple thread diameter	M6
Fitting edge diameter	115 mm
Weight	2.45 kg
Bearing material	Steel
Basic radial load static	23200 N
Basic radial load dynamic	37500 N
Original number equivalent	RFE50-XL-N-I
