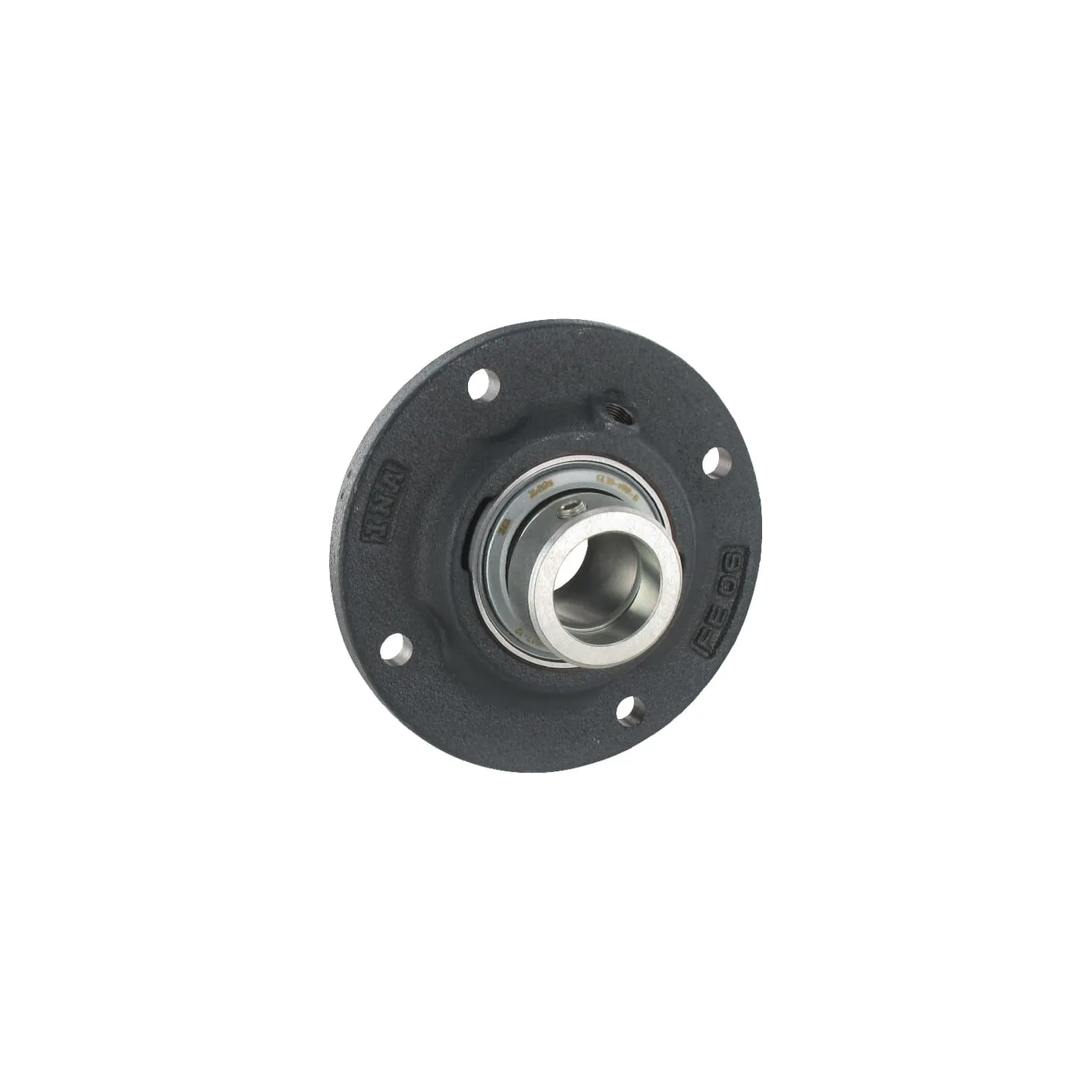

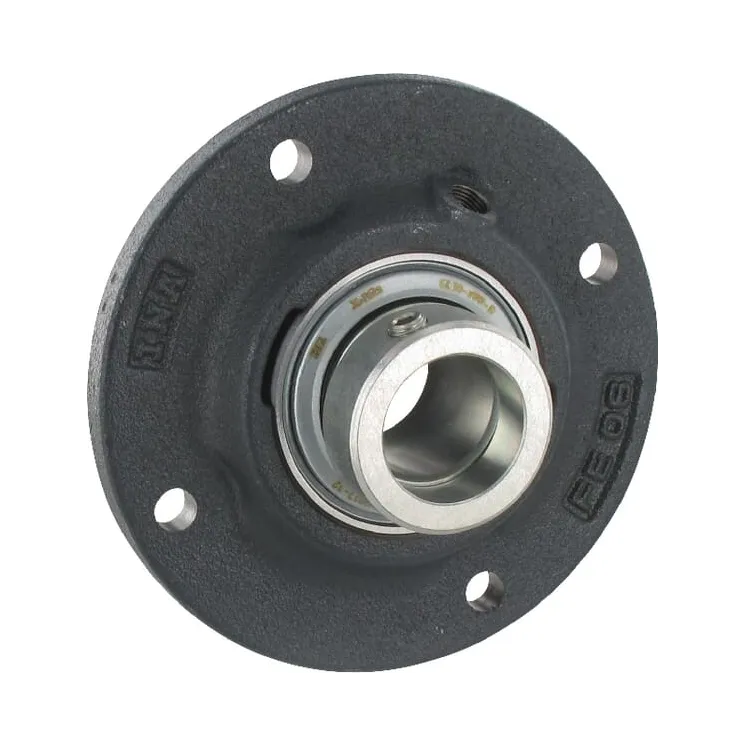

Gultņa korpuss RFE40

Name: Gultņa korpuss RFE40
Brand: INA/FAG
SKU: RFE40
Price: 102.64 EUR
Availability: InStock

Apmaksas iespējas

102,64 €

AR PVN

4-5 Darba dienas

Gultņa korpuss RFE40 INA/FAG

IR NOLIKTAVĀ

ID: 65107

Apraksts

Part number	RFE40
EAN	4054372596506
Unit	Each
Details	Bearing housing has an adjustable edge
Properties	Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Benefits	Precise axis alignment possible Fixing points are relieved
Housing type	Round flange
dBearing inside diameter	40 mm
Total length	145 mm
d3Outside diameter	145 mm
Total height	56.5 mm
Total width	56.5 mm
Housing height	26 mm
Bearing inner ring width	56.5 mm
Flange thickness	11.5 mm
Locking ring outside diameter	58 mm
A1Mounting holes diameter	11.5 mm
Grease nipple thread diameter	M6
Fitting edge diameter	100 mm
Weight	1.69 kg
Bearing material	Steel
Basic radial load static	19800 N
Basic radial load dynamic	34500 N
Original number equivalent	RFE40-XL-I
