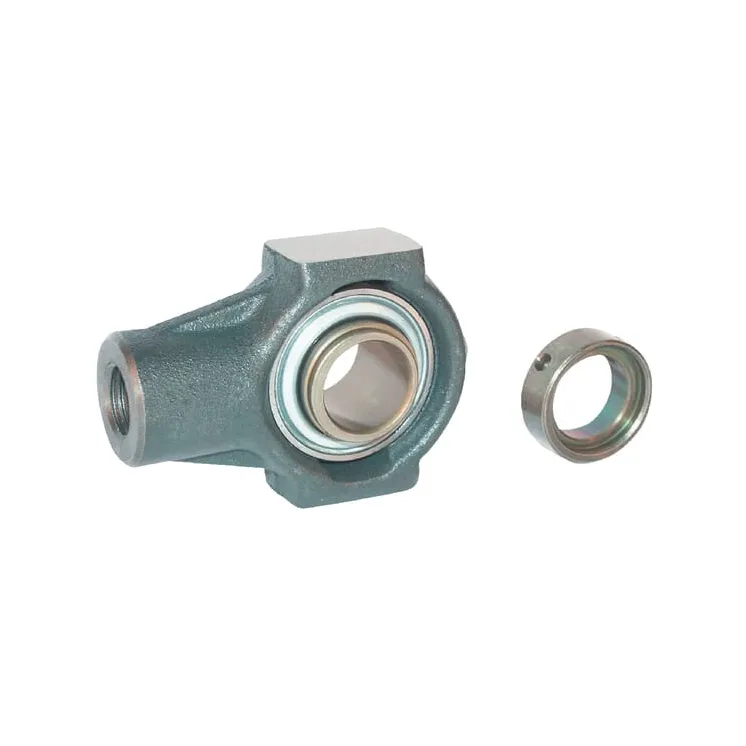

Korpuss RHE RHE50

Name: Korpuss RHE RHE50
Brand: INA/FAG
SKU: RHE50
Price: 129.77 EUR
Availability: InStock

Apmaksas iespējas

129,77 €

AR PVN

4-5 Darba dienas

Korpuss RHE RHE50 INA/FAG

IR NOLIKTAVĀ

ID: 65112

Apraksts

Part number	RHE50
EAN	4012802788426
Unit	Each
Properties	Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
dBearing inside diameter	50 mm
Consists of	• Bearing block Clamp ring
ATotal length	145 mm
MHousing width	110 mm
Total height	62.8 mm
BHousing height	40 mm
LBearing inner ring width	62.8 mm
Locking ring outside diameter	69 mm
HShaft vertical distance	90 mm
OBearing balls distance to mounting surface	38.1 mm
Grease nipple thread diameter	M6
Mounting thread diameter	M24
K1Mounting thread length	24 mm
WGuide groove length	46 mm
Weight	2.07 kg
Original number equivalent	RHE50
