Korpuss RHE RHE35

Name: Korpuss RHE RHE35
Brand: INA/FAG
SKU: RHE35
Price: 92.81 EUR
Availability: InStock

Apmaksas iespējas

92,81 €

AR PVN

4-5 Darba dienas

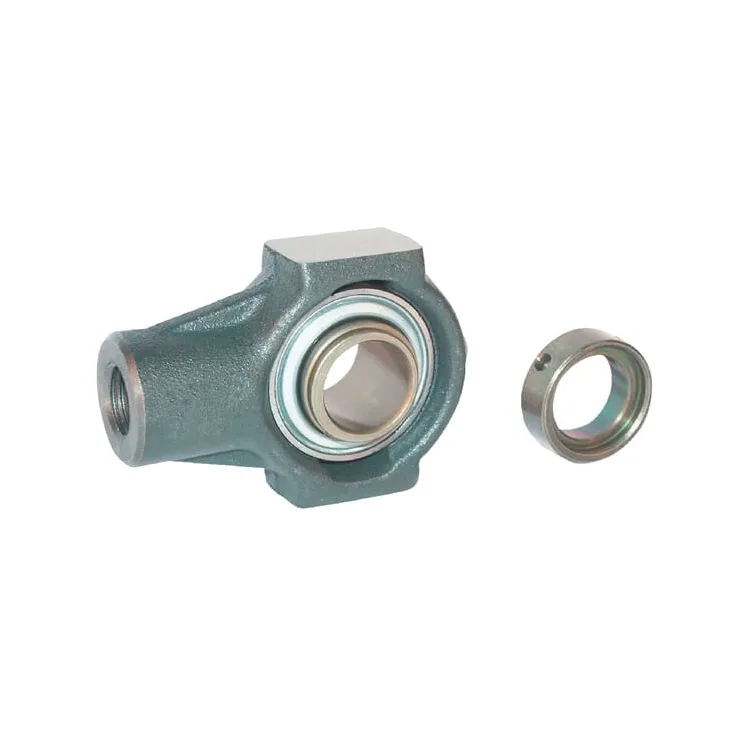

Korpuss RHE RHE35 INA/FAG

IR NOLIKTAVĀ

ID: 65115

Apraksts

Part number	RHE35
EAN	4012802788488
Unit	Each
Properties	Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
dBearing inside diameter	35 mm
Consists of	• Bearing block Clamp ring
ATotal length	122 mm
MHousing width	90 mm
Total height	51.3 mm
BHousing height	32 mm
LBearing inner ring width	51.3 mm
Locking ring outside diameter	51 mm
HShaft vertical distance	76 mm
OBearing balls distance to mounting surface	32.3 mm
Grease nipple thread diameter	M6
Mounting thread diameter	M24
K1Mounting thread length	24 mm
WGuide groove length	49 mm
Weight	1.38 kg
Original number equivalent	RHE35
