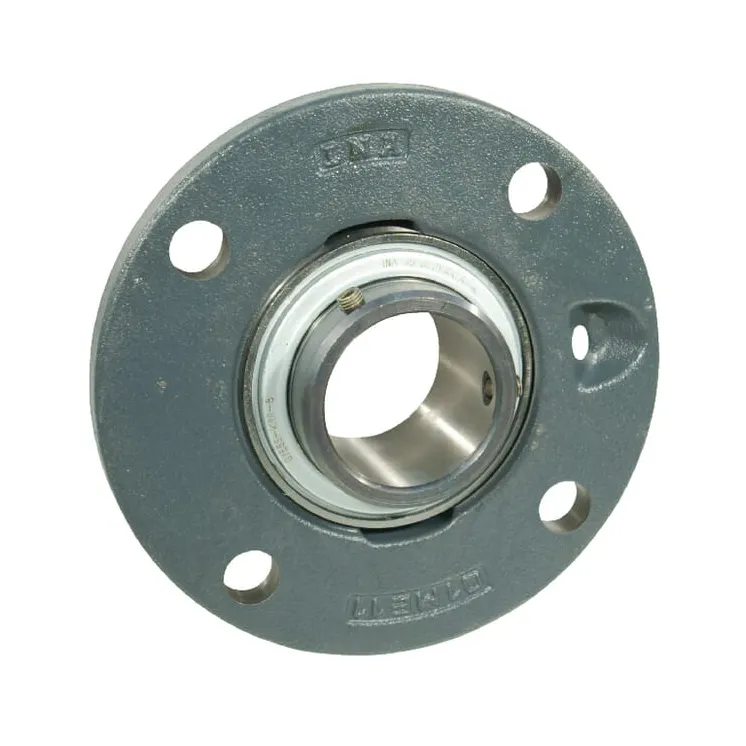

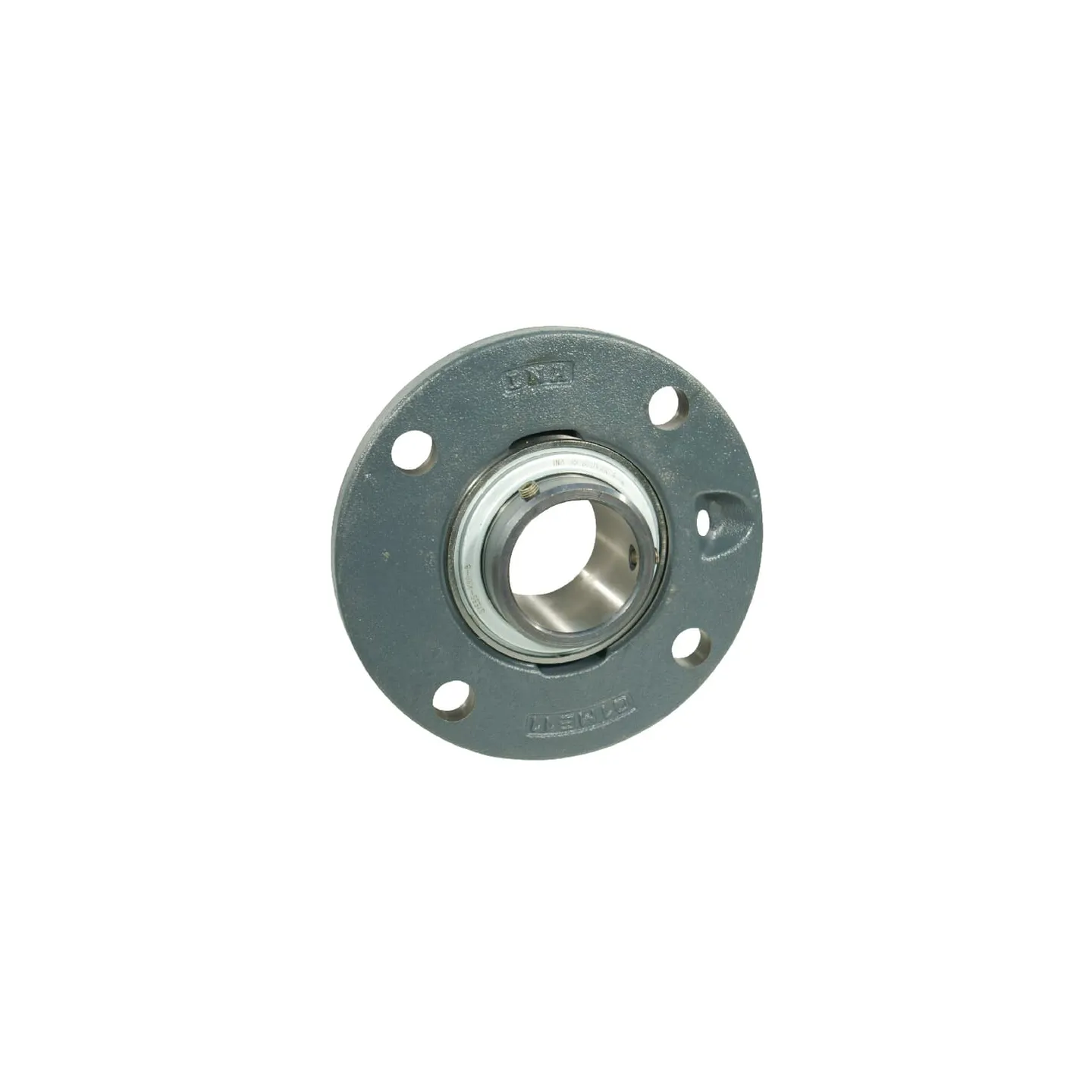

Dzīvojamā vienība RMEY RMEY20

Name: Dzīvojamā vienība RMEY RMEY20
Brand: INA/FAG
SKU: RMEY20
Price: 47.36 EUR
Availability: InStock

Apmaksas iespējas

47,36 €

AR PVN

4-5 Darba dienas

Dzīvojamā vienība RMEY RMEY20 INA/FAG

IR NOLIKTAVĀ

ID: 65116

Apraksts

Part number	RMEY20
EAN	4012802803532
Unit	Each
Details	Bearing housing has an adjustable edge
Properties	Inner bearing has extended inner ring with 2 adjusting screws on both sides Can be subsequently lubricated
Benefits	Precise axis alignment possible Fixing points are relieved
Housing type	Round flange
dBearing inside diameter	20 mm
Housing width	100 mm
Total height	16.3 mm
Total width	31 mm
THousing height	17 mm
LBearing inner ring width	31 mm
CFlange thickness	8 mm
MMounting holes/bolts circle diameter	78 mm
KMounting holes diameter	9 mm
Grease nipple thread diameter	M6
ZFitting edge diameter	62 mm
Weight	0.5 kg
Bearing material	Steel
Basic radial load static	6600 N
Basic radial load dynamic	13600 N
Original number equivalent	RMEY20-XL-N
