Korpuss RMEO50XL

Name: Korpuss RMEO50XL
Brand: INA/FAG
SKU: RMEO50XL
Price: 233.28 EUR
Availability: InStock

Apmaksas iespējas

233,28 €

AR PVN

4-5 Darba dienas

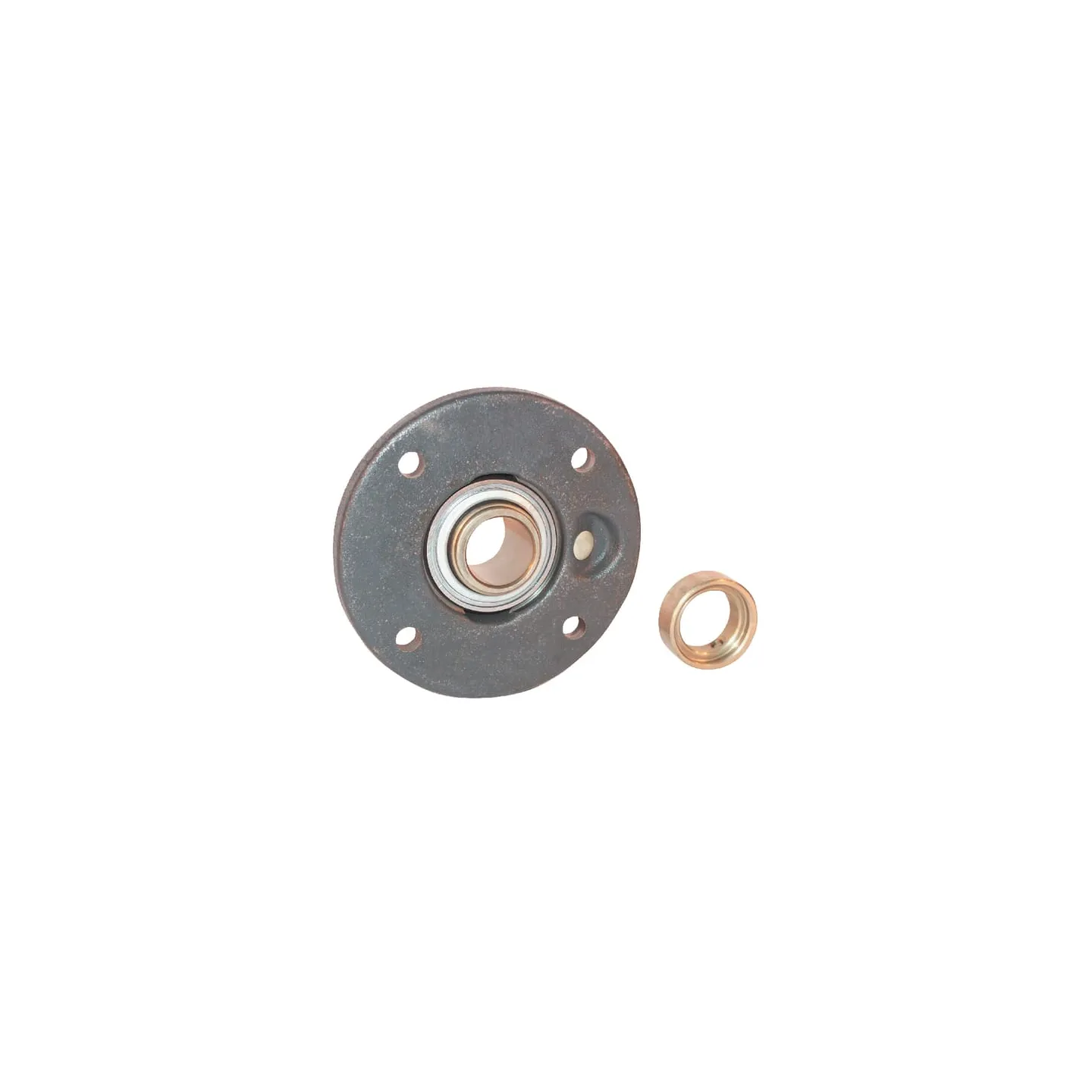

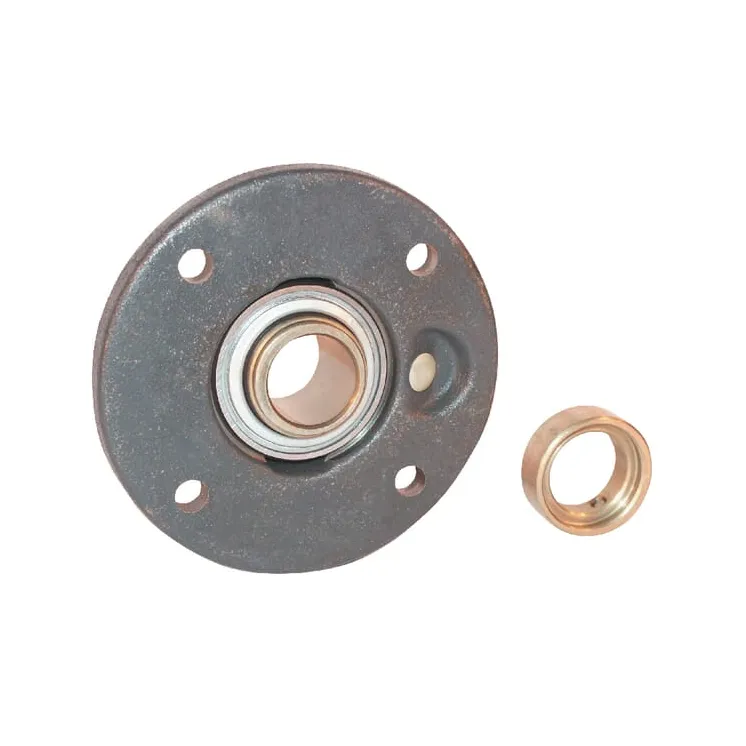

Korpuss RMEO50XL INA/FAG

IR NOLIKTAVĀ

ID: 65123

Apraksts

Part number	RMEO50XL
EAN	4012802803242
Unit	Each
Technical info	Flange bearing, GNE..KRRB - c/w eccentric cam locking collar, - Cast round housing, 4 Hole
Housing type	Round flange
dBearing inside diameter	50 mm
Housing width	230 mm
Total height	44.6 mm
Total width	66.75 mm
THousing height	31 mm
LBearing inner ring width	66.75 mm
Locking ring outside diameter	75.8 mm
KMounting holes diameter	23 mm
Grease nipple thread diameter	M6
ZFitting edge diameter	140 mm
Weight	5.66 kg
Bearing material	Steel
Basic radial load static	38000 N
Basic radial load dynamic	66000 N
Original number equivalent	RMEO50-XL
