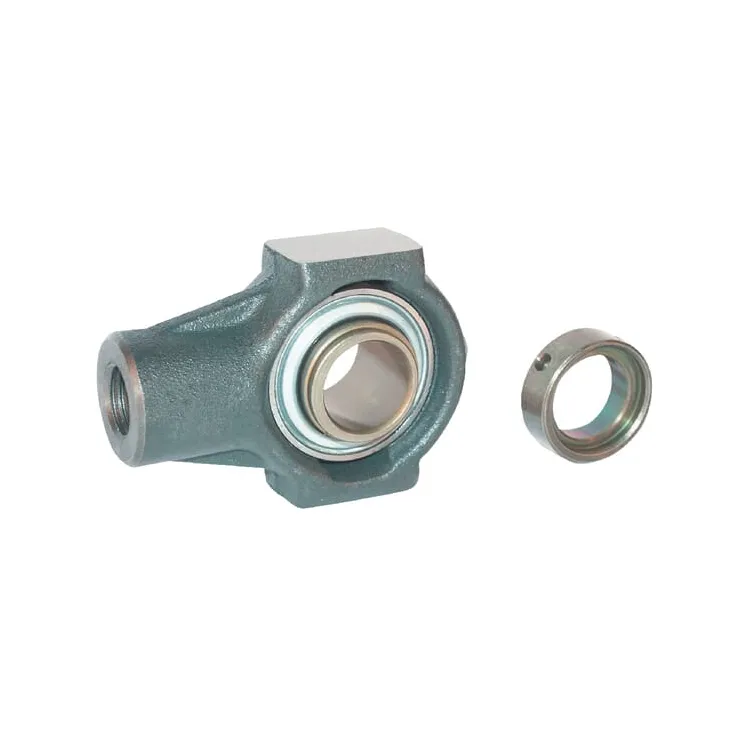

Korpuss RHE RHE40

Name: Korpuss RHE RHE40
Brand: INA/FAG
SKU: RHE40
Price: 98.26 EUR
Availability: InStock

Apmaksas iespējas

98,26 €

AR PVN

4-5 Darba dienas

Korpuss RHE RHE40 INA/FAG

IR NOLIKTAVĀ

ID: 65124

Apraksts

Part number	RHE40
EAN	4012802788464
Unit	Each
Properties	Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
dBearing inside diameter	40 mm
Consists of	• Bearing block Clamp ring
ATotal length	135 mm
MHousing width	100 mm
Total height	56.5 mm
BHousing height	36 mm
LBearing inner ring width	56.5 mm
Locking ring outside diameter	58 mm
HShaft vertical distance	85 mm
OBearing balls distance to mounting surface	34.9 mm
Grease nipple thread diameter	M6
Mounting thread diameter	M24
K1Mounting thread length	24 mm
WGuide groove length	45 mm
Weight	1.7 kg
Original number equivalent	RHE40
