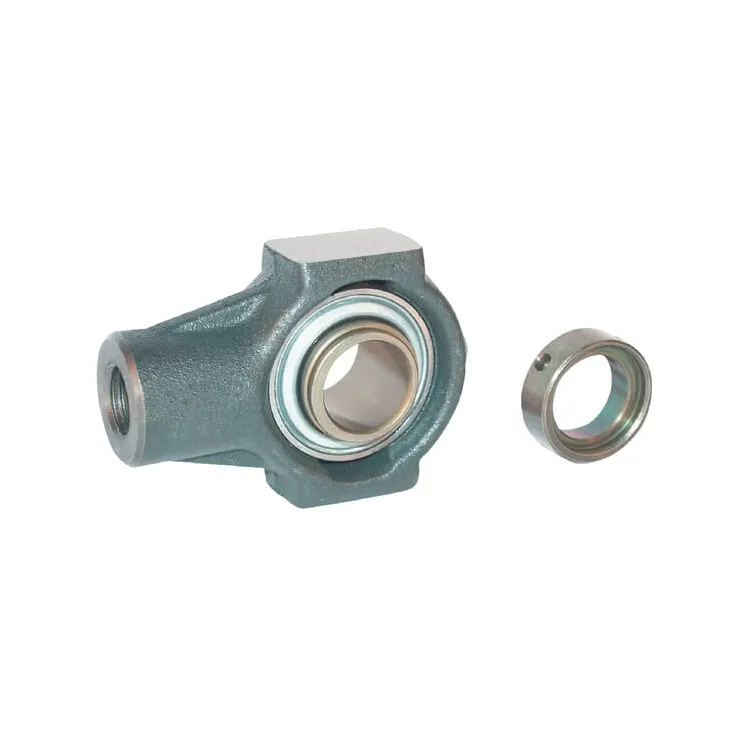

Korpuss RHE RHE25

Name: Korpuss RHE RHE25
Brand: INA/FAG
SKU: RHE25
Price: 52.31 EUR
Availability: InStock

Apmaksas iespējas

52,31 €

AR PVN

4-5 Darba dienas

Korpuss RHE RHE25 INA/FAG

IR NOLIKTAVĀ

ID: 65129

Apraksts

Part number	RHE25
EAN	4012802788525
Unit	Each
Properties	Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
dBearing inside diameter	25 mm
Consists of	• Bearing block Clamp ring
ATotal length	99 mm
MHousing width	70 mm
Total height	44.5 mm
BHousing height	28 mm
LBearing inner ring width	44.5 mm
HShaft vertical distance	64 mm
OBearing balls distance to mounting surface	26.9 mm
Grease nipple thread diameter	M6
Mounting thread diameter	M20
K1Mounting thread length	22 mm
WGuide groove length	38 mm
Original number equivalent	RHE25
