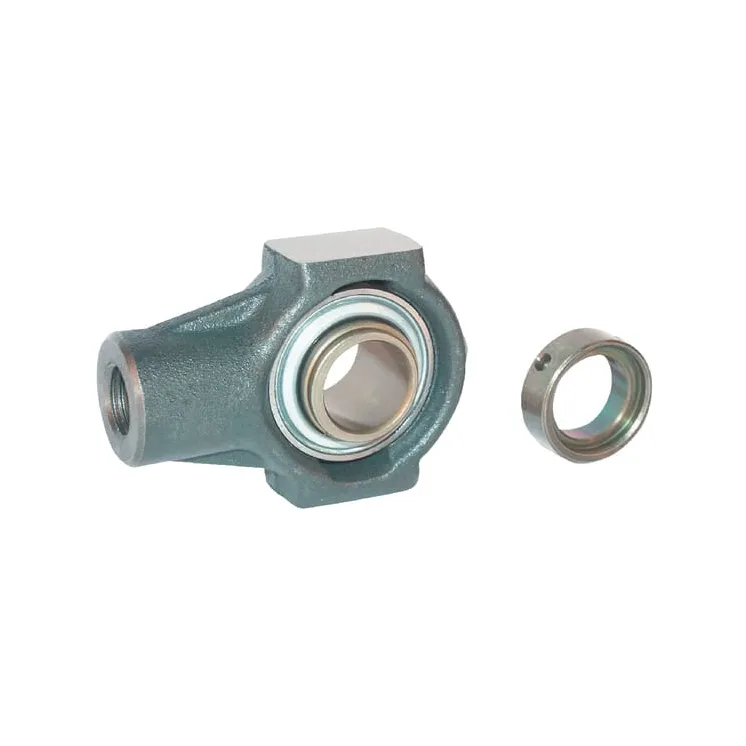

Korpuss RHE RHE30

Name: Korpuss RHE RHE30
Brand: INA/FAG
SKU: RHE30
Price: 79.46 EUR
Availability: InStock

Apmaksas iespējas

79,46 €

AR PVN

4-5 Darba dienas

Korpuss RHE RHE30 INA/FAG

IR NOLIKTAVĀ

ID: 65136

Apraksts

Part number	RHE30
EAN	4054372502088
Unit	Each
Properties	Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
dBearing inside diameter	30 mm
Consists of	• Bearing block Clamp ring
ATotal length	114 mm
MHousing width	85 mm
Total height	48.5 mm
BHousing height	32 mm
LBearing inner ring width	48.5 mm
Locking ring outside diameter	44 mm
HShaft vertical distance	72 mm
OBearing balls distance to mounting surface	30.1 mm
Grease nipple thread diameter	M6
Mounting thread diameter	M24
K1Mounting thread length	24 mm
WGuide groove length	40 mm
Weight	1.17 kg
Original number equivalent	RHE30
