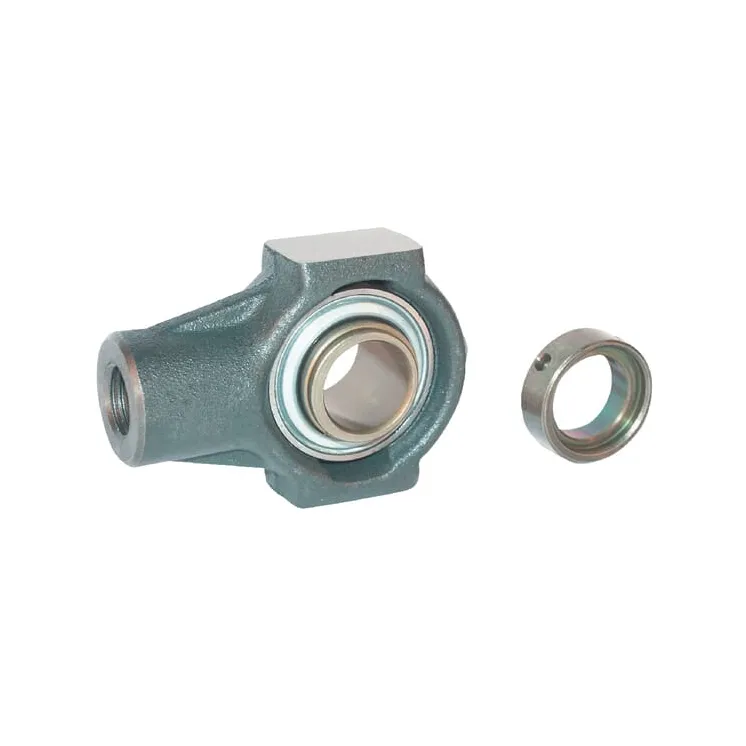

Dzīvojamā vienība RHE RHE20

Name: Dzīvojamā vienība RHE RHE20
Brand: INA/FAG
SKU: RHE20
Price: 56.82 EUR
Availability: InStock

Apmaksas iespējas

56,82 €

AR PVN

4-5 Darba dienas

Dzīvojamā vienība RHE RHE20 INA/FAG

IR NOLIKTAVĀ

ID: 65142

Apraksts

Part number	RHE20
EAN	4012802788549
Unit	Each
Properties	Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
dBearing inside diameter	20 mm
Consists of	• Bearing block Clamp ring
ATotal length	91 mm
MHousing width	65 mm
Total height	43.7 mm
BHousing height	25 mm
LBearing inner ring width	43.7 mm
Locking ring outside diameter	33 mm
HShaft vertical distance	58 mm
OBearing balls distance to mounting surface	26.6 mm
Grease nipple thread diameter	M6
Mounting thread diameter	M16
K1Mounting thread length	21 mm
WGuide groove length	38 mm
Weight	0.6 kg
Original number equivalent	RHE20
