Dzīvojamā vienība RME RME25

Name: Dzīvojamā vienība RME RME25
Brand: INA/FAG
SKU: RME25
Price: 63.83 EUR
Availability: InStock

Apmaksas iespējas

63,83 €

AR PVN

4-5 Darba dienas

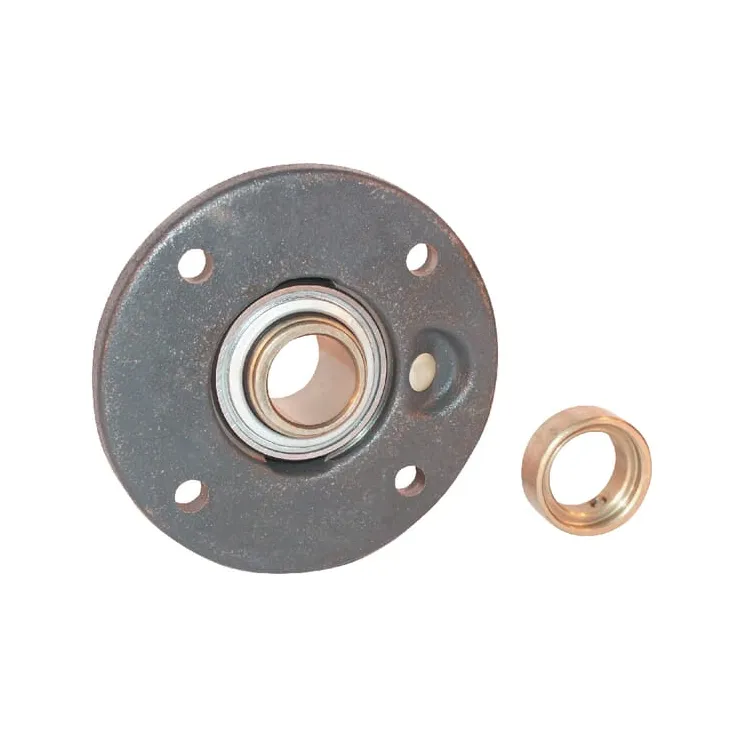

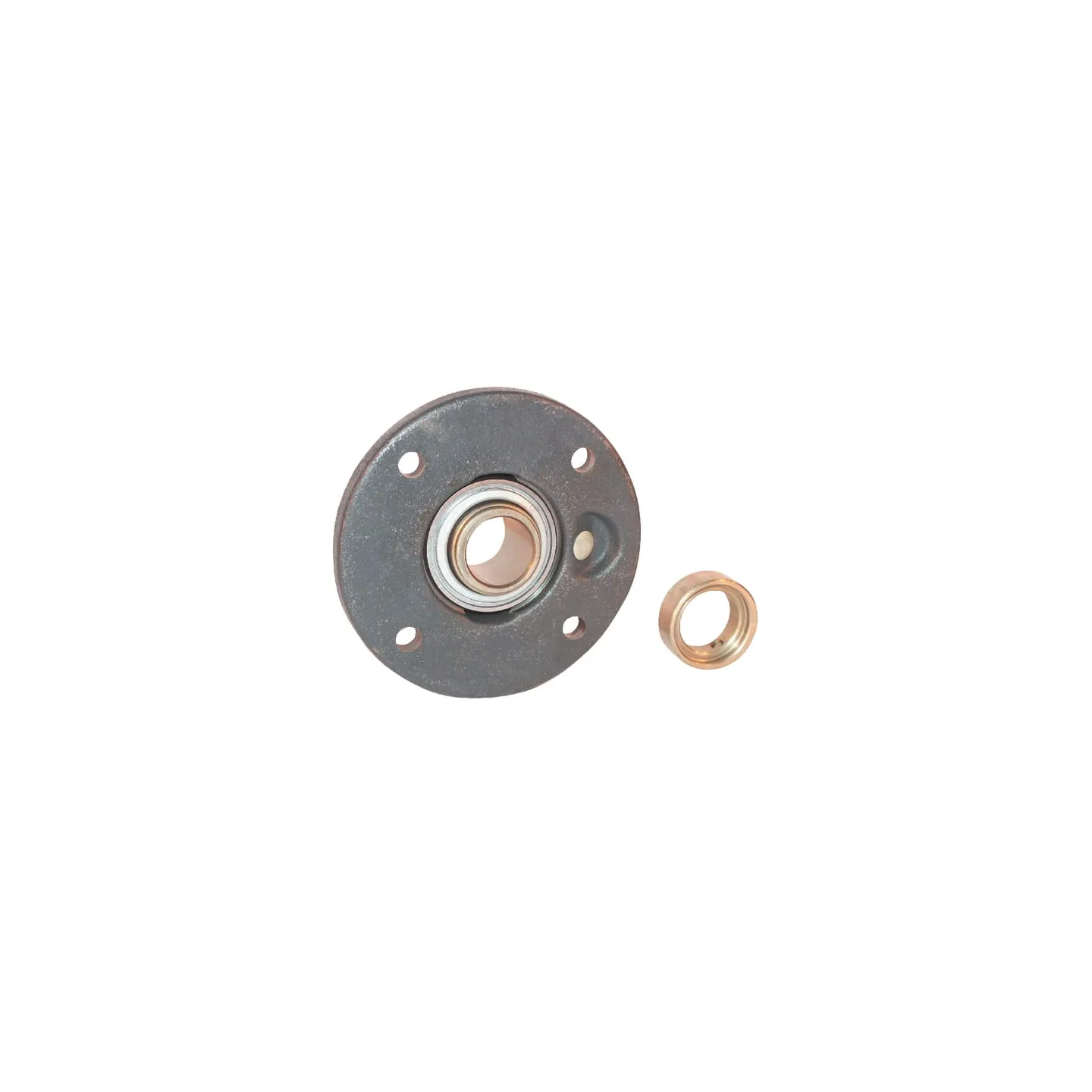

Dzīvojamā vienība RME RME25 INA/FAG

IR NOLIKTAVĀ

ID: 65155

Apraksts

Part number	RME25
EAN	4012802837902
Unit	Each
Details	Bearing housing has an adjustable edge
Properties	Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Benefits	Precise axis alignment possible Fixing points are relieved
Housing type	Round flange
dBearing inside diameter	25 mm
Consists of	• Bearing block Clamp ring
Housing width	115 mm
Total height	24.4 mm
Total width	44.5 mm
THousing height	19 mm
LBearing inner ring width	44.5 mm
CFlange thickness	9 mm
Locking ring outside diameter	37.5 mm
MMounting holes/bolts circle diameter	90 mm
KMounting holes diameter	9 mm
Grease nipple thread diameter	M6
ZFitting edge diameter	70 mm
Weight	0.8 kg
Bearing material	Steel
Basic radial load static	7800 N
Basic radial load dynamic	14900 N
Original number equivalent	RME25-XL-N
