Dzīvojamā vienība RCJ RCJ30

Name: Dzīvojamā vienība RCJ RCJ30
Brand: INA/FAG
SKU: RCJ30
Price: 78.11 EUR
Availability: InStock

Apmaksas iespējas

78,11 €

AR PVN

4-5 Darba dienas

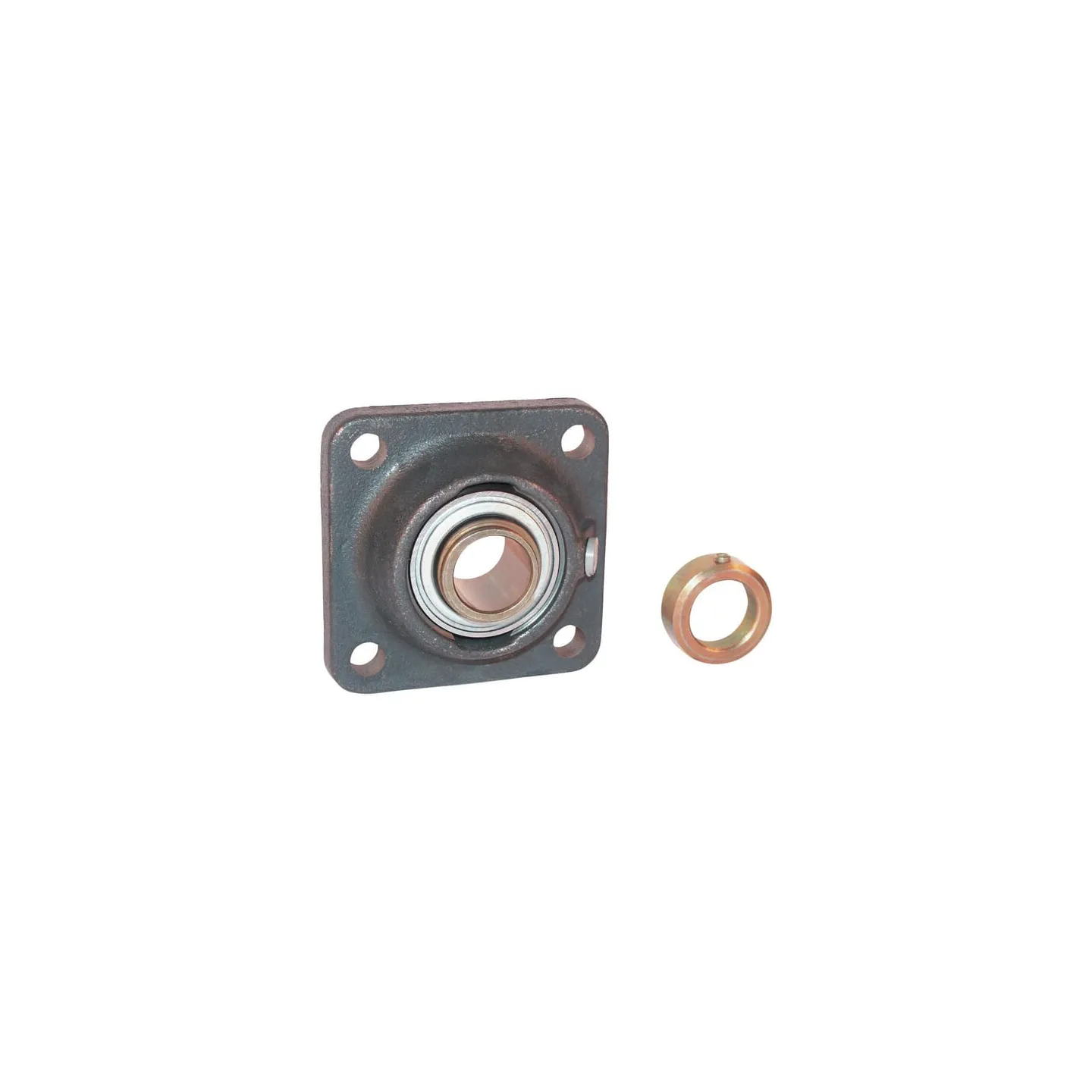

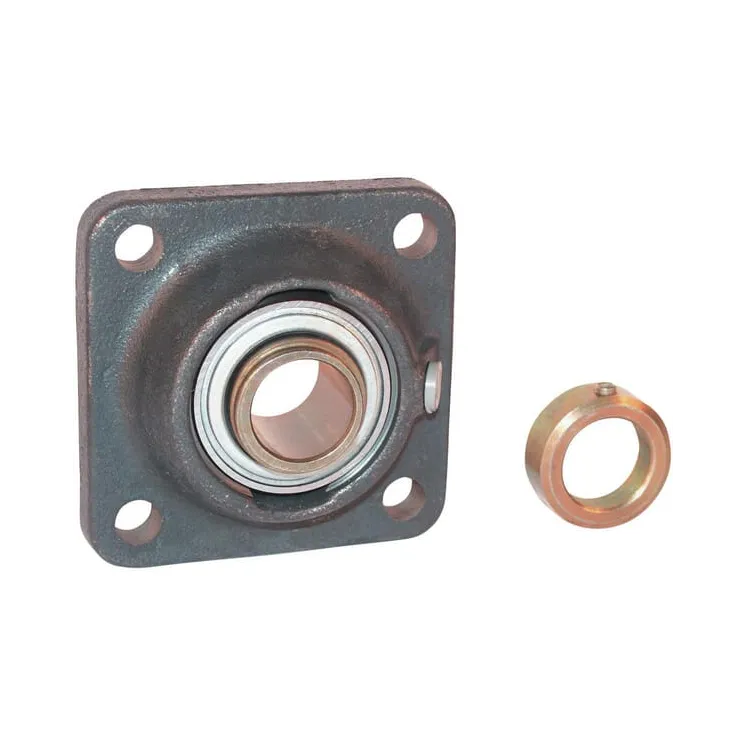

Dzīvojamā vienība RCJ RCJ30 INA/FAG

IR NOLIKTAVĀ

ID: 65159

Apraksts

Part number	RCJ30
EAN	4012802839166
Unit	Each
Properties	Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Housing type	Square flange
dBearing inside diameter	30 mm
Consists of	• Bearing block Clamp ring
Total length	108 mm
Housing width	108 mm
UTotal height	50.2 mm
THousing height	29 mm
LBearing inner ring width	48.5 mm
CFlange thickness	27.5 mm
Locking ring outside diameter	44 mm
Bearing balls distance to locking side end	20 mm
MMounting holes distance	82.5 mm
Mounting holes diameter	11.5 mm
Grease nipple thread diameter	M6
Weight	1.16 kg
Basic radial load static	11300 N
Basic radial load dynamic	19500 N
Original number equivalent	RCJ30-N
